Isuzu

MU-X

7-seat SUV

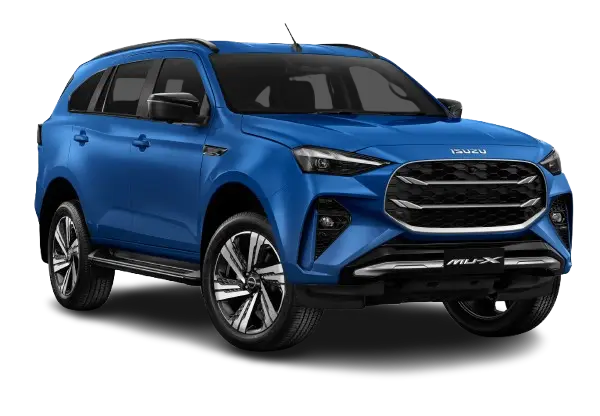

Explore the MU-X.

The 7-seat MU-X is here! Bringing new levels of SUV luxury and comfort, it has retained the durability and toughness that our MU-X is known for.

Both variants have a 6-speed automatic transmission powered by Isuzu's legendary 3-litre turbo diesel engine which Isuzu Good Bastards across New Zealand have come to love. This gives our MU-X SUV a 3,500 kg braked tow rating - towing your boat or trailer has never been easier.

With Isuzu's Intelligent Driver Assistance System (IDAS*) as standard, MU-X is safer than before. It's been awarded a 5-star ANCAP safety rating and both variants come with added luxuries like Adaptive Cruise Control, dual-zone climate air-conditioning, rear parking sensors, and a 9-inch touchscreen with satellite navigation, Apple CarPlay, Android Auto and 8 speakers.

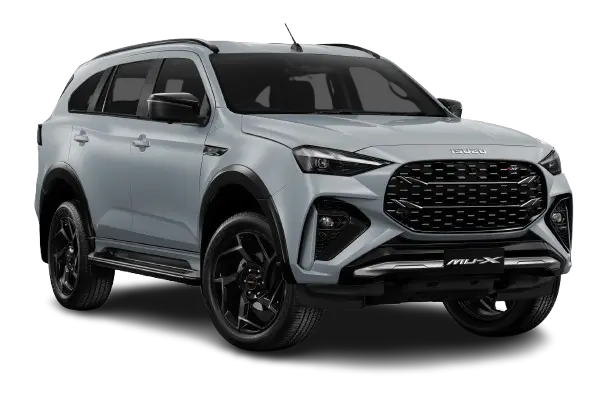

MU-X LS-T
MU-X LS-T
MU-X LS-T
MU-X LS-T
MU-X LS-T
MU-X LS-T
MU-X LS-T
MU-X LS-T

Splash White

Sapphire Blue

Spinel Red

Obsidian Grey

Norwegian Blue

Onyx Black

Mercury Silver

Dolomite White Pearl

test drive the MU-X

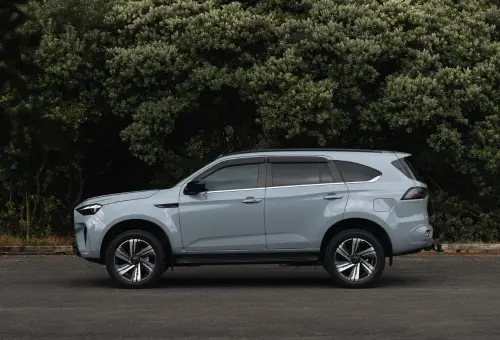

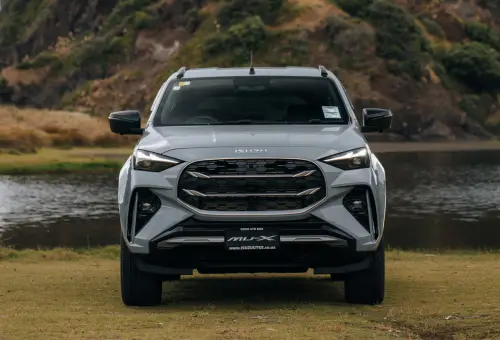

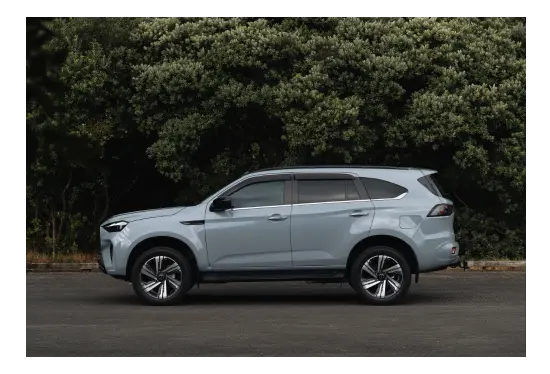

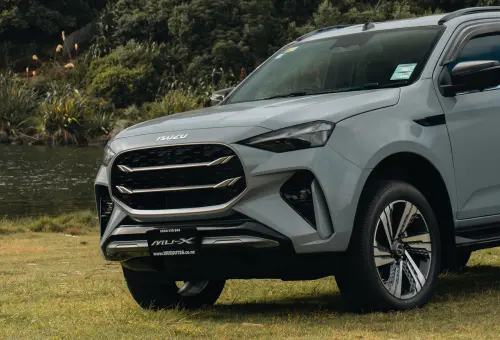

The exterior

 The MU-X has had a complete redesign! A whole lot of extra bells and whistles have been added. Available in 7 colours, the all-new MU-X stands out from the crowd.

LED Tail lights

Ultra-bright and long-lasting LED tail lights on the MU-X provide excellent visibility in all conditions for added peace-of-mind.

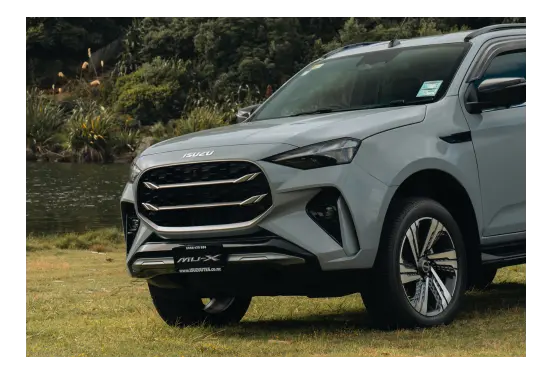

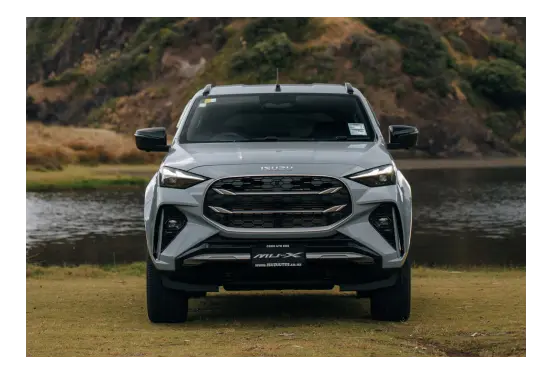

Chrome Grille

The all-new MU-X comes standard with a chrome grille and eye-catching Daytime Running Lights (DRLs) that stand out from the crowd.

LED Headlights

The MU-X is equipped with powerful and durable LED headlights for excellent visibility under all conditions. These are combined with LED Daytime Running Lights (DRLs) for added safety whilst out on the open road.

Alloys

Powerful-looking alloy wheels adorn the all-new MU-X, ensuring that you will stop traffic next time you are in town. These are combined with Highway-Terrain (HT) tyres for solid road holding in all situations. (LS-T 20" wheels shown).

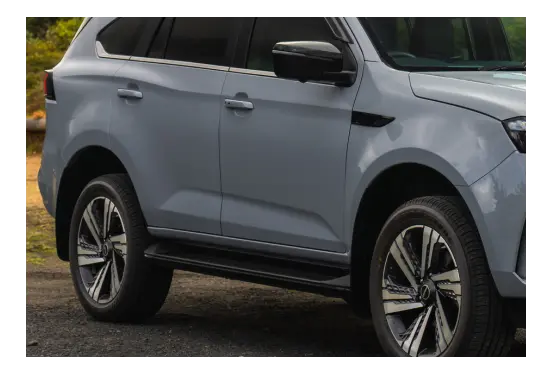

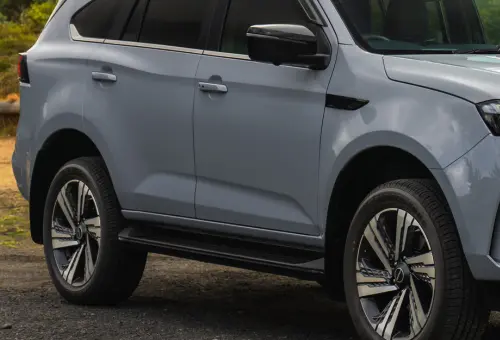

Side steps

Durable alloy side steps provide excellent ease of entry and exit into the all-new MU-X. These are finished in silver for a dynamic look.

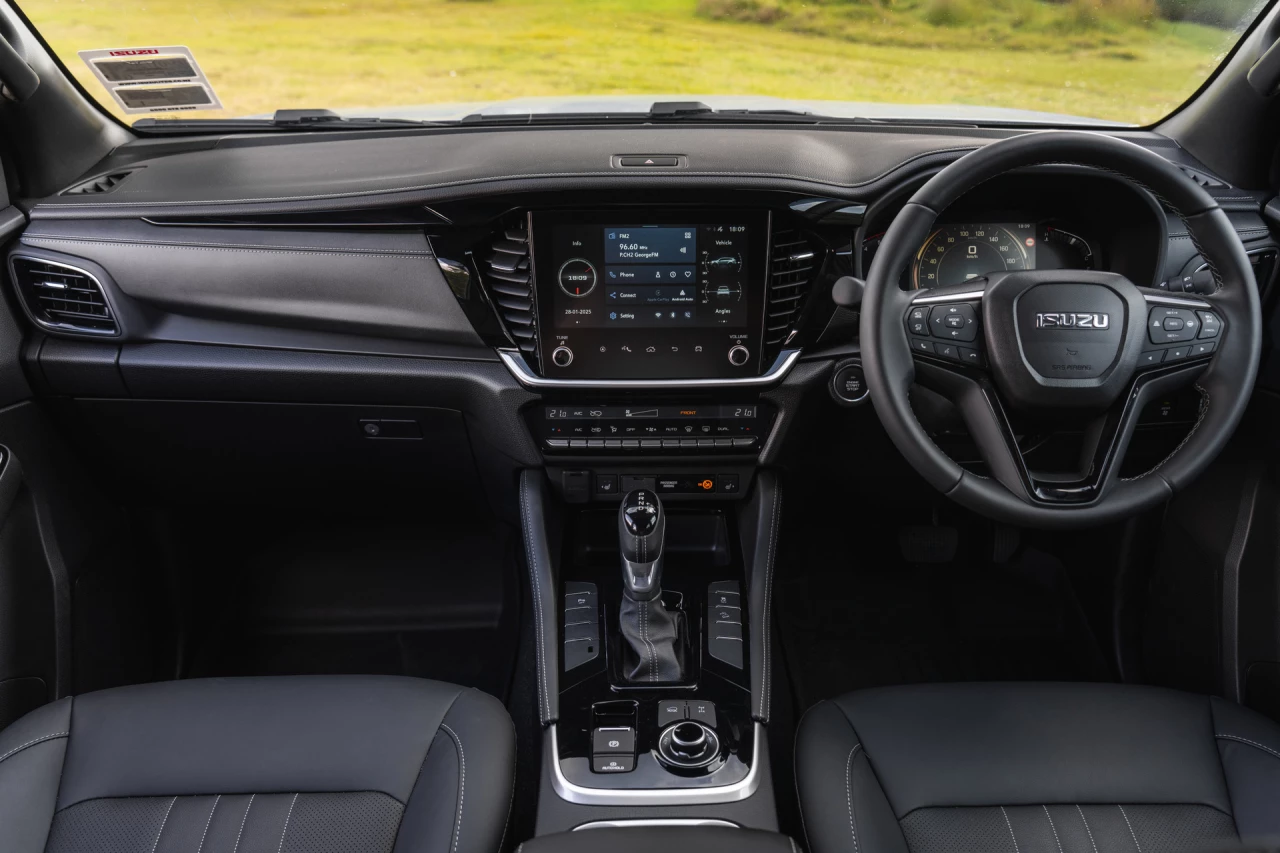

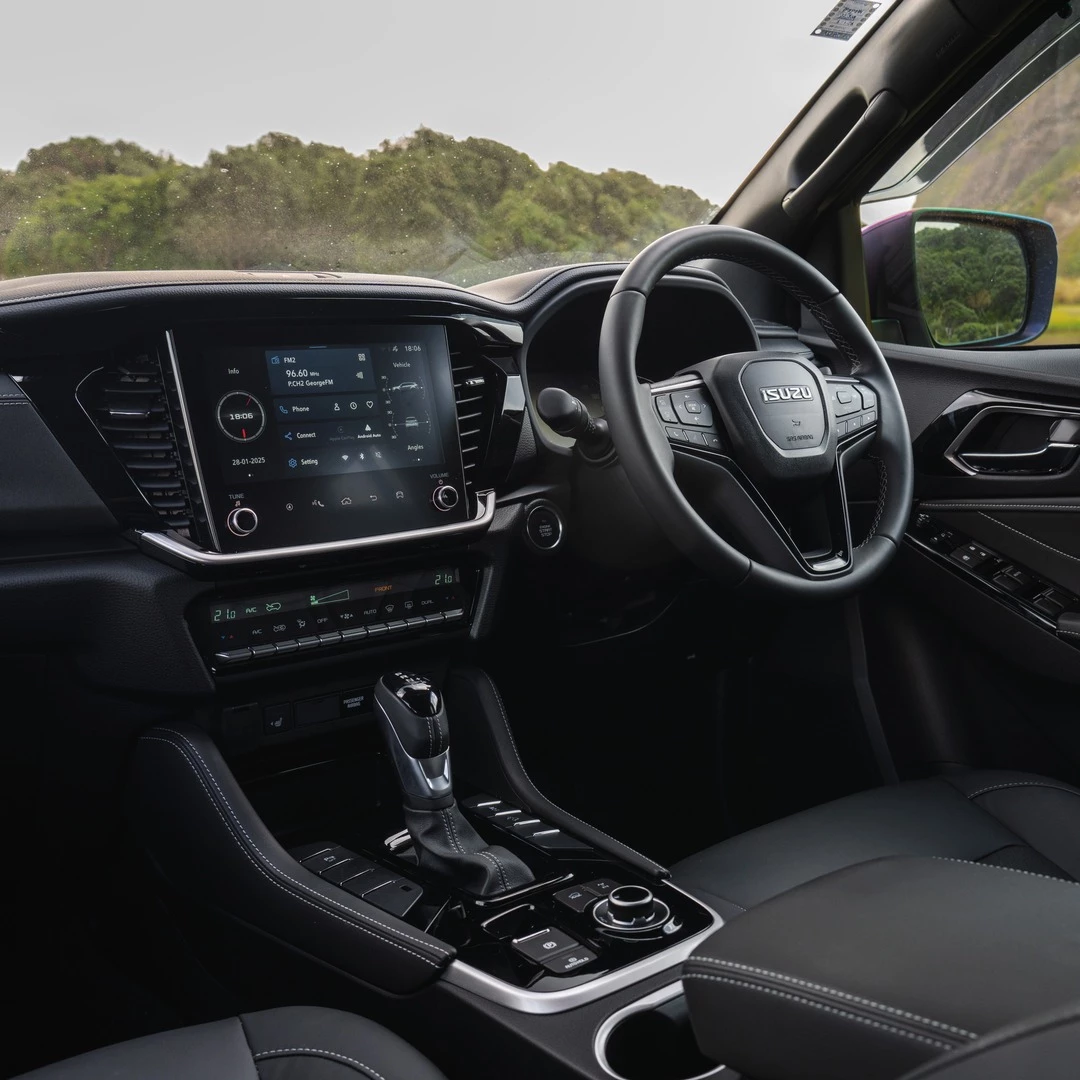

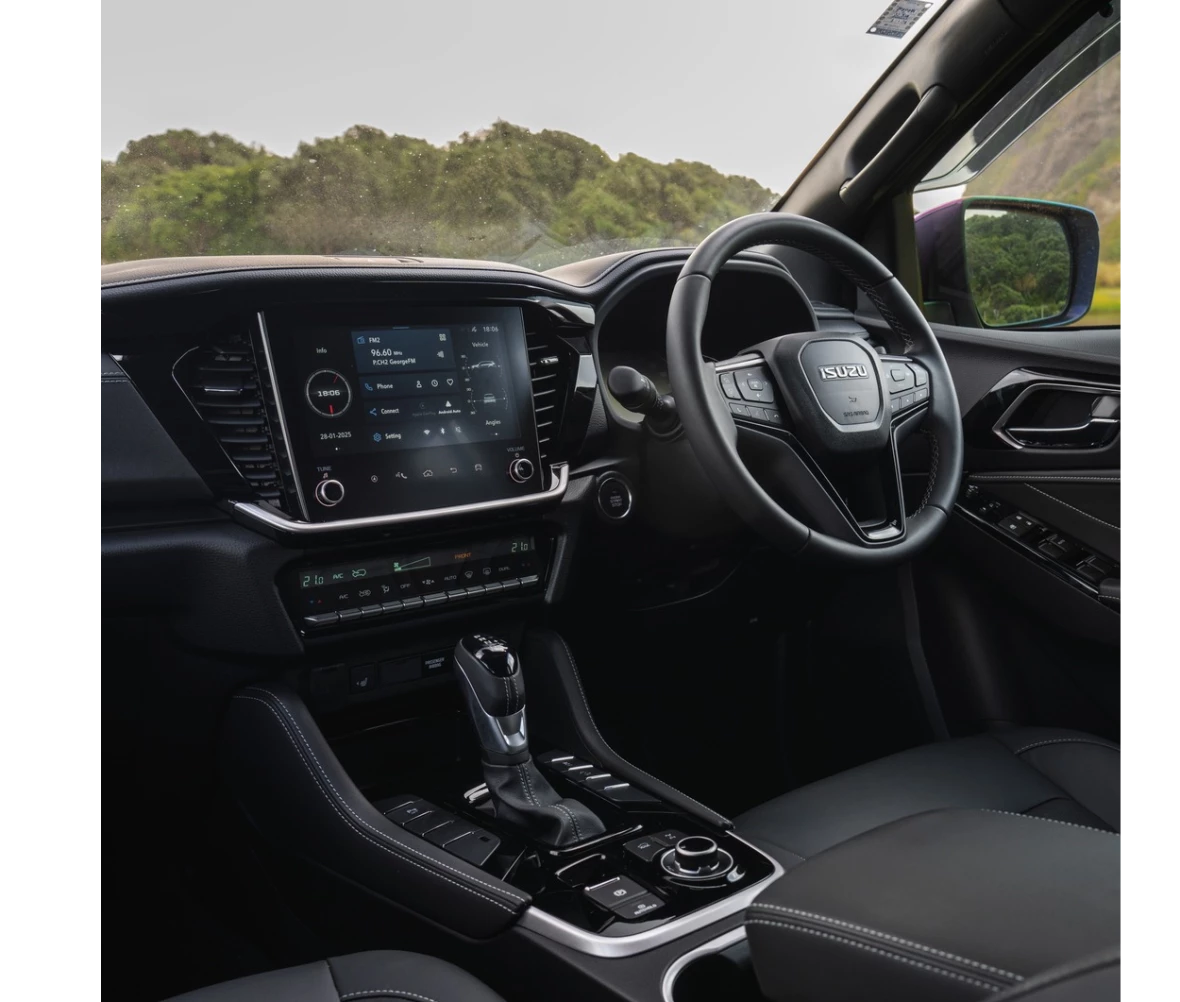

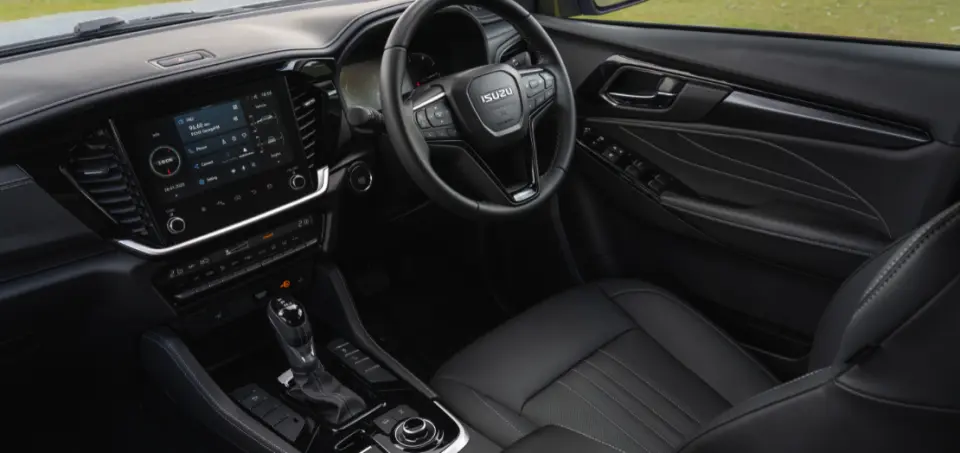

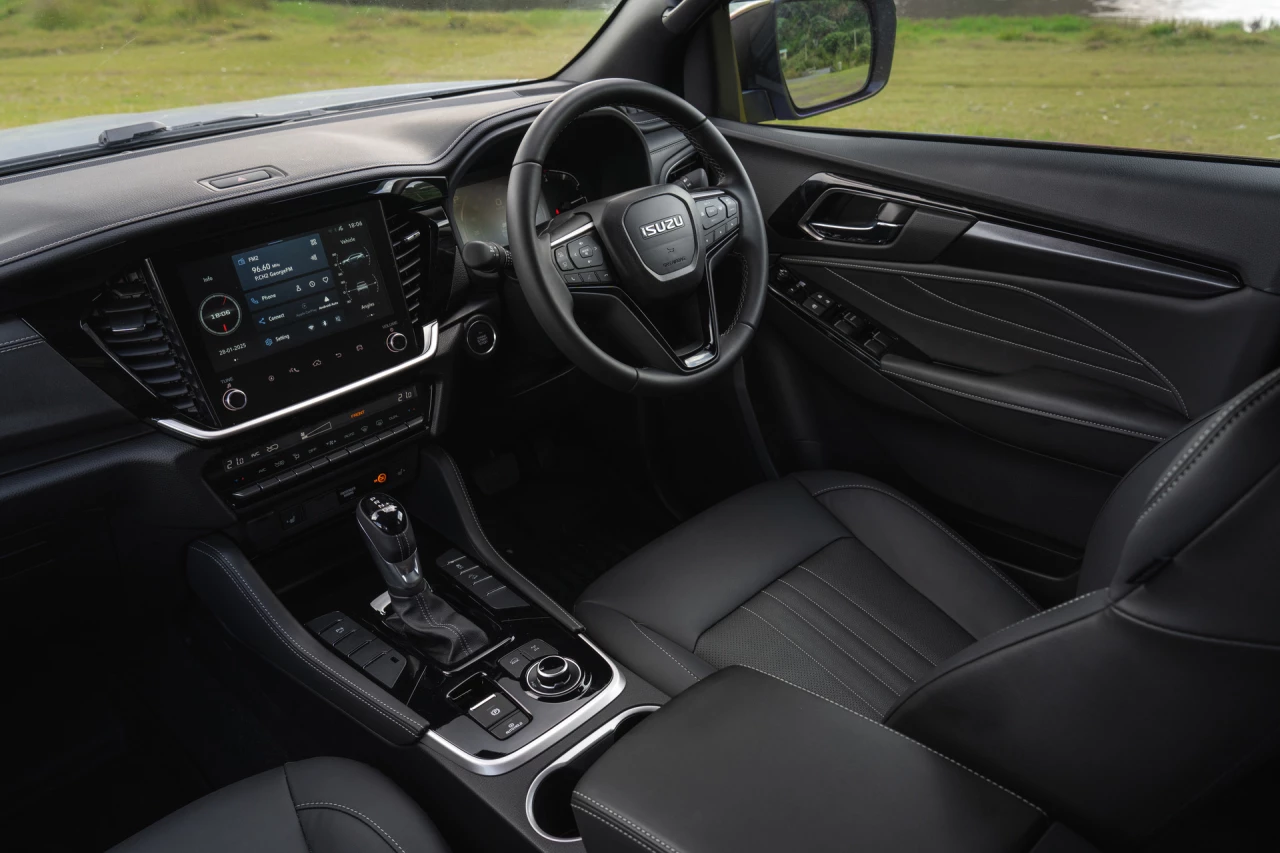

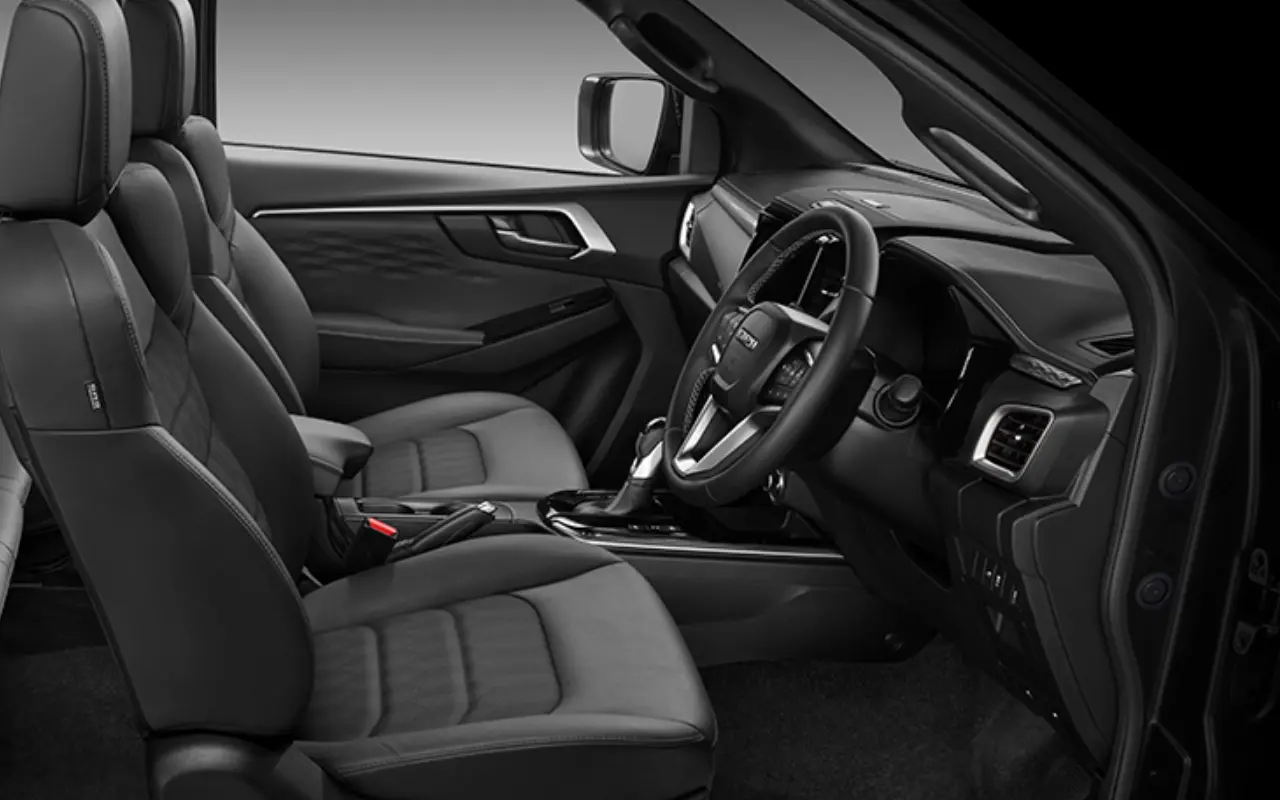

The interior

 Occupant and driver convenience has been greatly improved in the all-new MU-X. An abundance of thoughtfully placed storage and cup holders complete the interior giving it a striking sense of design and function.

Design

Just like the D-Max, the all-new MU-X interior takes inspiration from airplane cockpits. This means that control ergonomics, occupant comfort, material quality & durability, and driver visibility are key priorities. Jump into the all-new MU-X and see for yourself how the design has come to life.

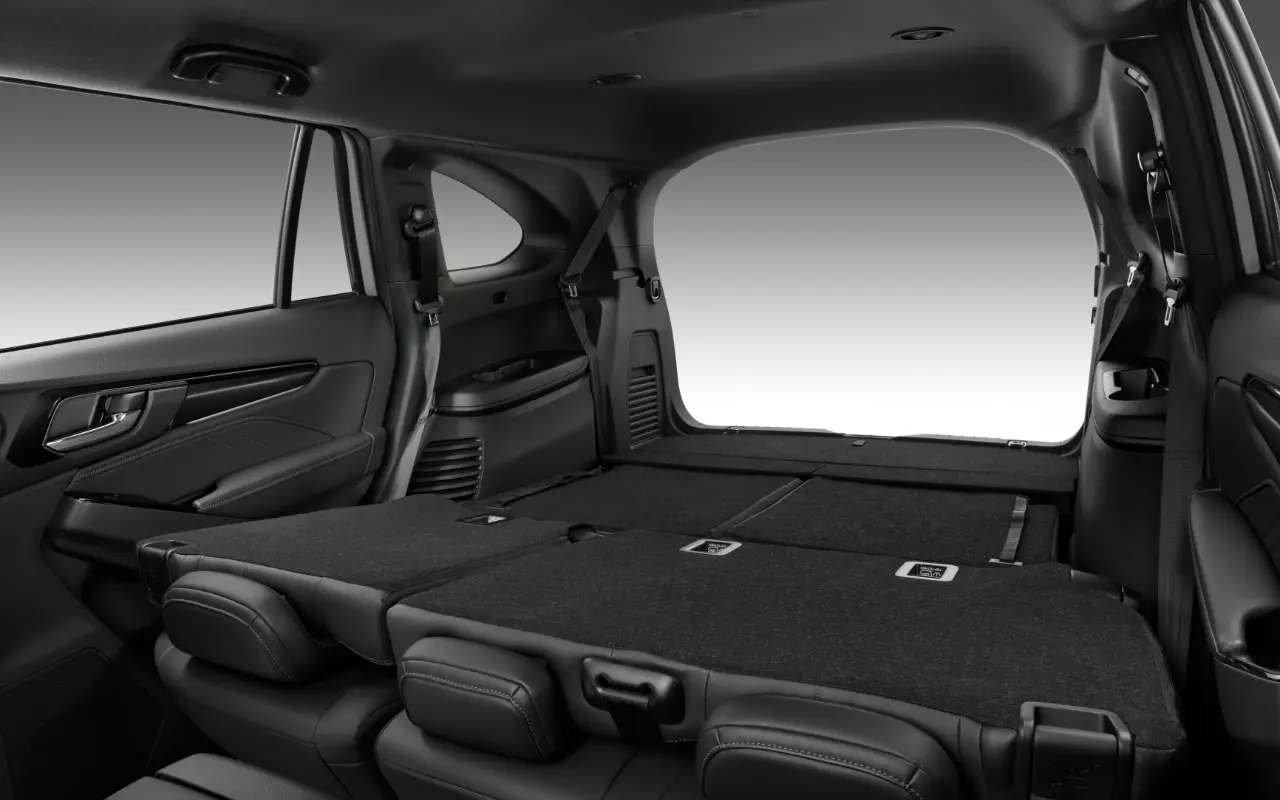

Comfort

The all-new MU-X has 3 rows of seating to give a total of 7 seats. The front seats are bucket whiplash protected seats with electric adjustment and a heating feature for those chilly mornings. The split-fold rear seats feature a foldable centre armrest and 2 USB ports. Double sealed doors and an excess of soundproofing makes the MU-X a peaceful and relaxing ride.

Storage

The MU-X has cup holders in all 3 rows, storage for tissues, a 12v 120-watt power socket and 3 USB ports in total. The upper center console storage, under steering wheel storage, deep door pockets, and seatback pockets provide storage solutions for those easily misplaced but much-needed items. Still need more space? Fold-down the rear seats, or make use of the roof rails which come as standard on the MU-X

enhanced performance

 Since developing Japan's first air-cooled automotive diesel engine in 1936, Isuzu has continued to build a reputation for world-class diesel engines. Constant technological improvements, innovations and in-depth experience across the production of more than 26 million diesel engines means Isuzu is an established global leader in developing capable and efficient engines.

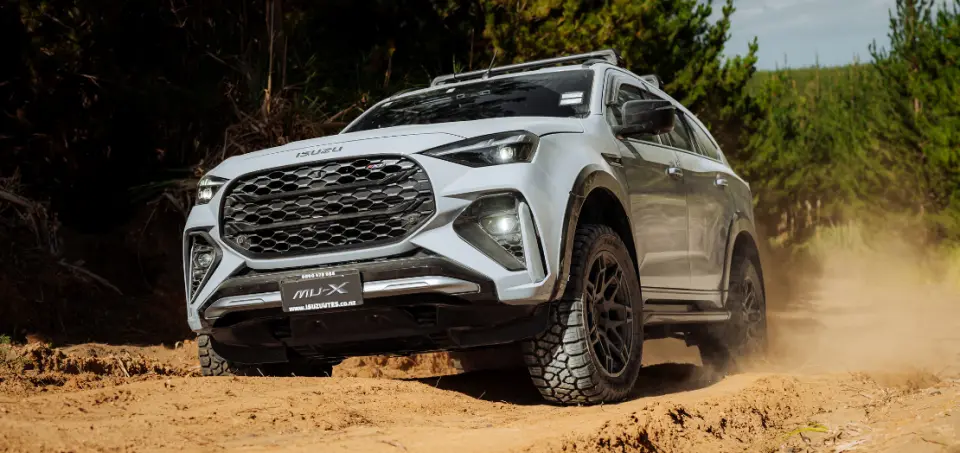

ISUZU 4JJ3 3.0L ENGINE

The dependable 3.0L 4JJ3 turbo-diesel engine has been given a tickle-up and now produces even more power and torque. Revisions to the high-pressure injector system, electronically controlled variable geometry turbocharger and engine internals result in an extra 10 kW of power, plus another 20 Nm of torque, all while maintaining class-leading dependability.

TERRAIN COMMAND

The Terrain Command dial in the all-new MU-X allows you to shift between 2WD and 4WD Hi mode on the move (up to 100km/h) for improved traction when driving conditions change.

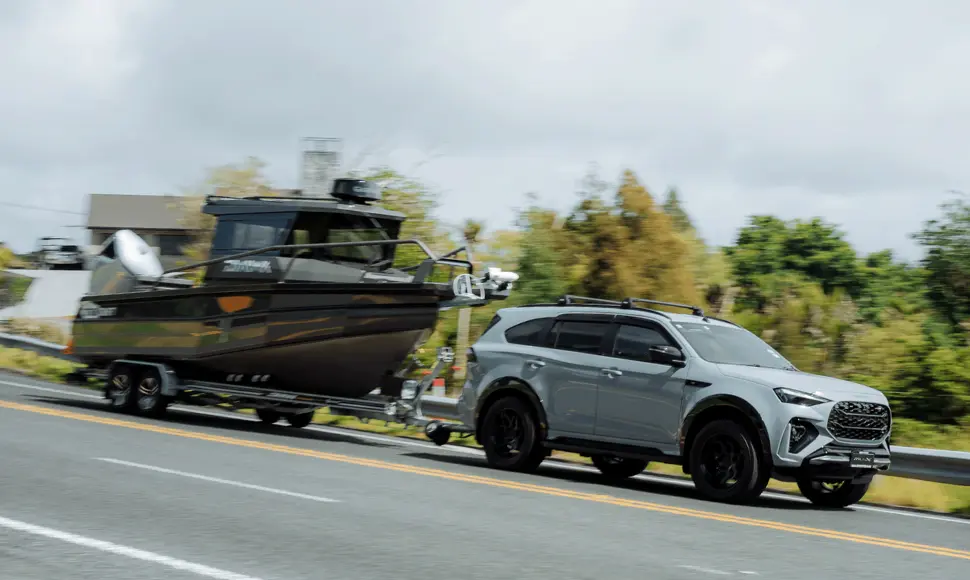

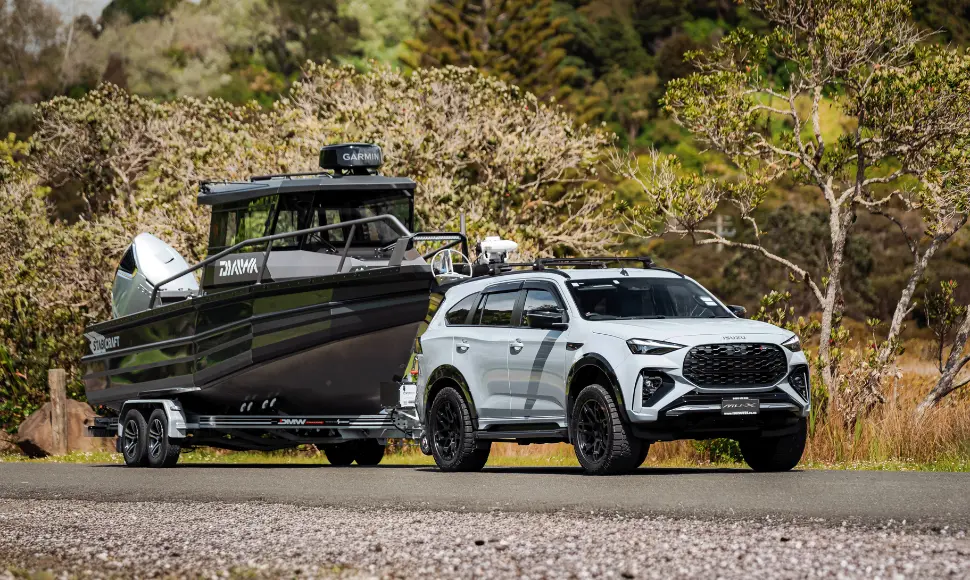

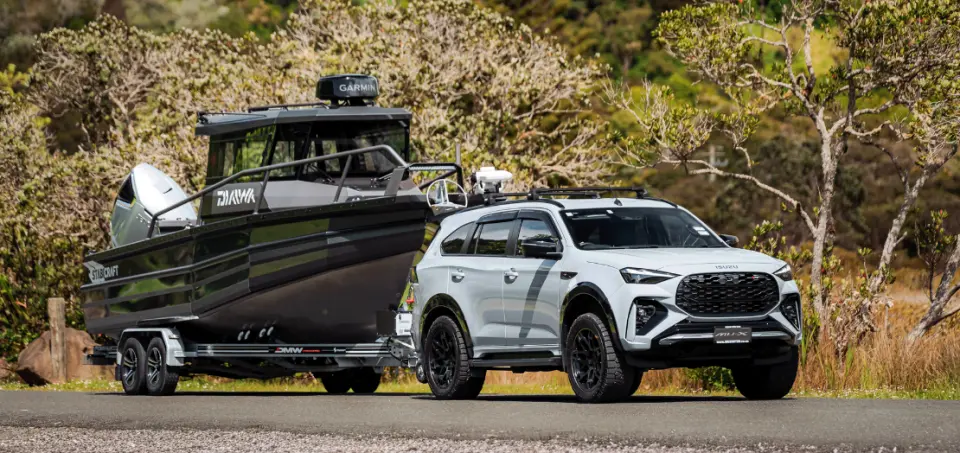

3,500KG TOWING ABILITY

Your search for the perfect travelling companion is over. The MU-X can seat up to 7 people, and tow up to 3,500kg. Isuzu’s legendary 3-litre turbo diesel engine delivers high torque across the range, making light work of a caravan, boat, or trailer. Trailer Sway Control (TSC) assists with towing in high winds or on uneven surfaces.

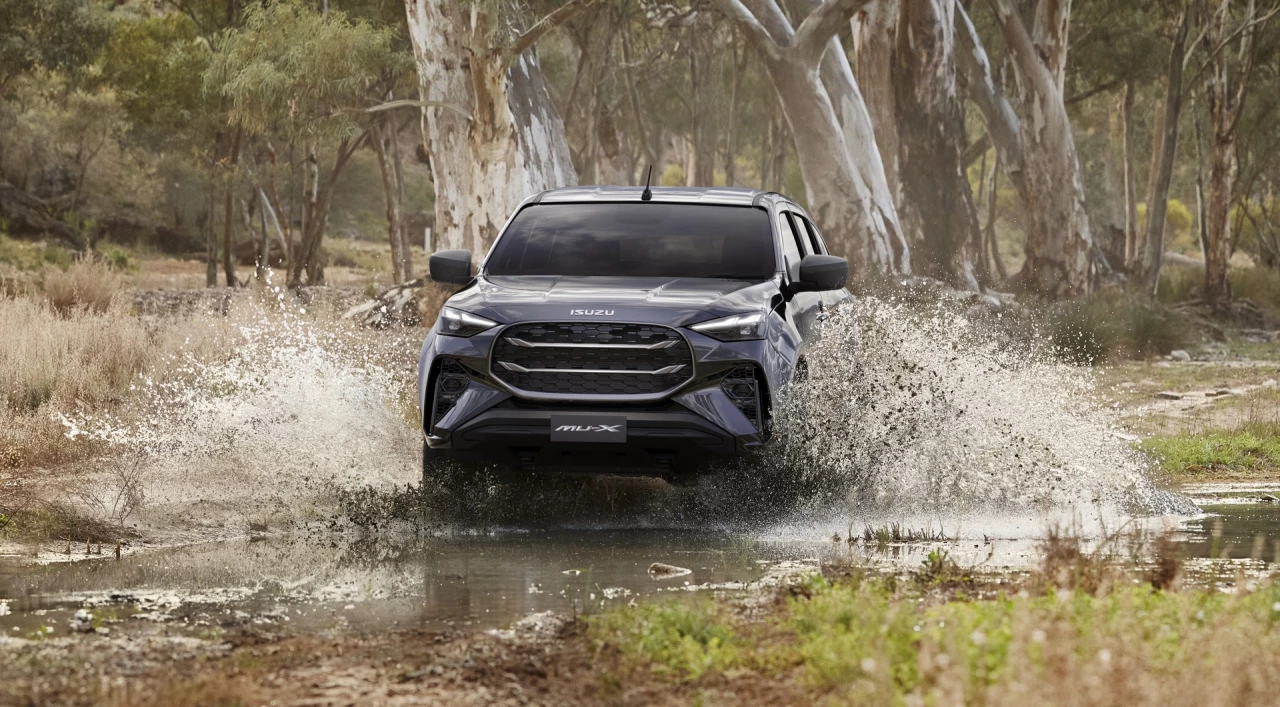

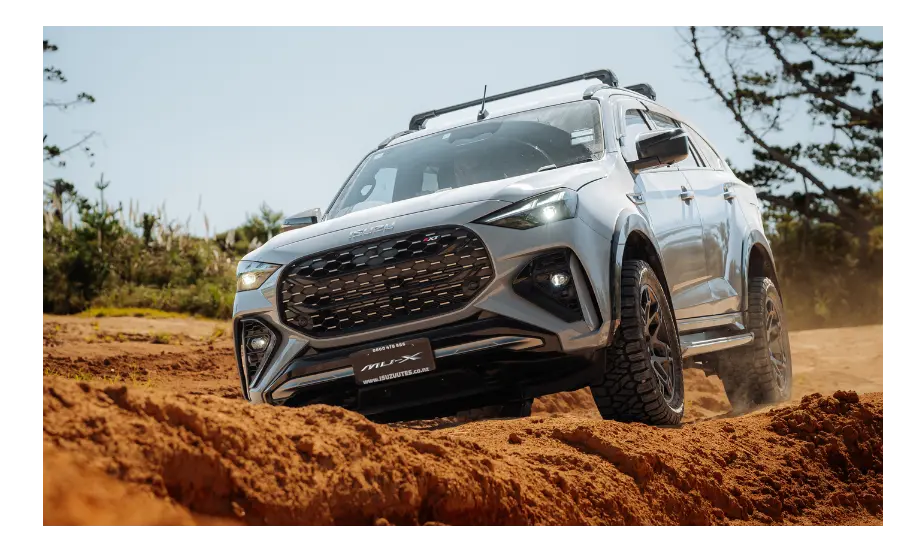

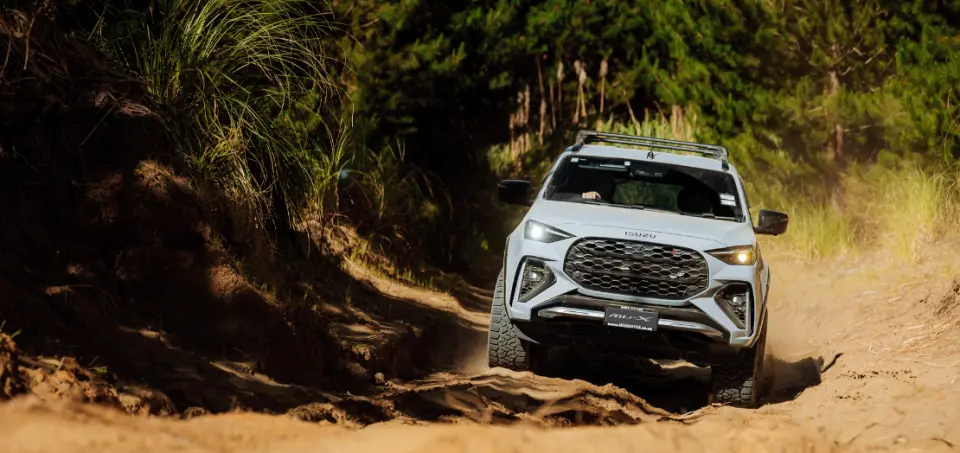

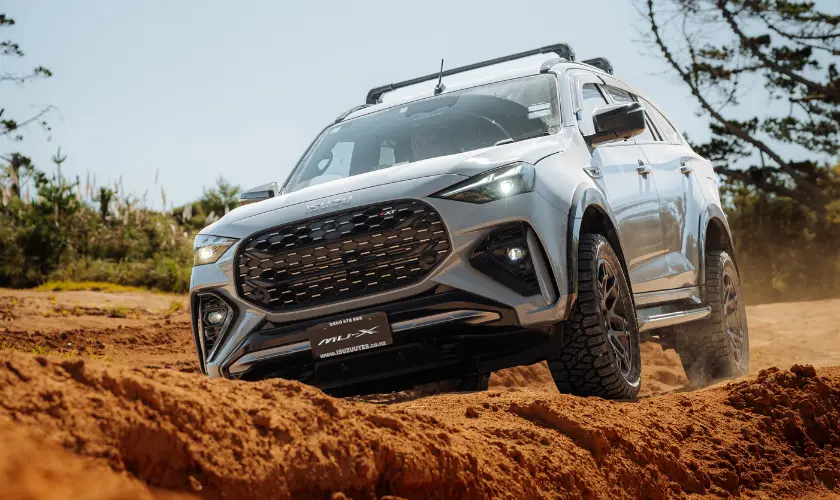

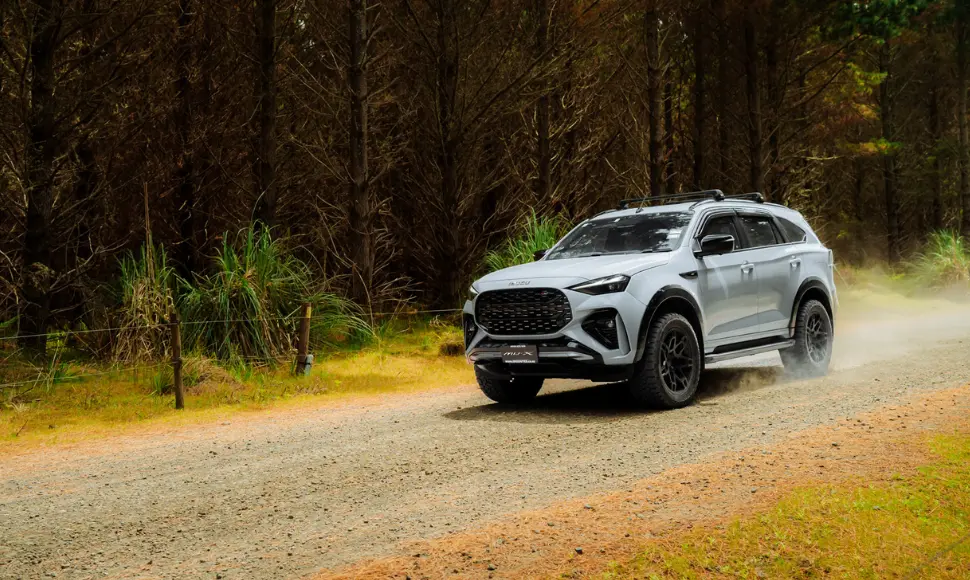

OFF-ROAD PERFORMANCE

The all-new MU-X's go-anywhere ability has been further improved providing you with a 7-seater SUV that is as at home up in the backcountry hills as it is out on State Highway One. Wading depth has been increased to 800mm for those extra deep crossings, and the all-new MU-X now includes a rear differential lock for improved traction on slippery surfaces. For on-road excursions, there is a range of new electronic driving aids to keep you on the straight and narrow.

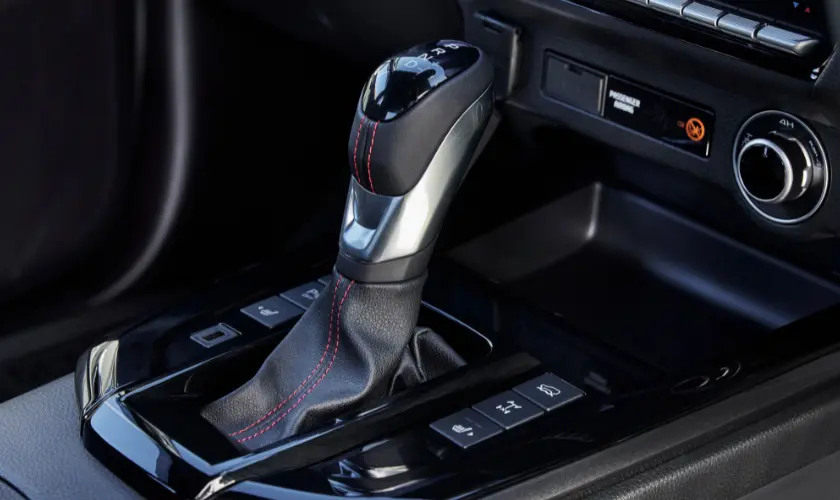

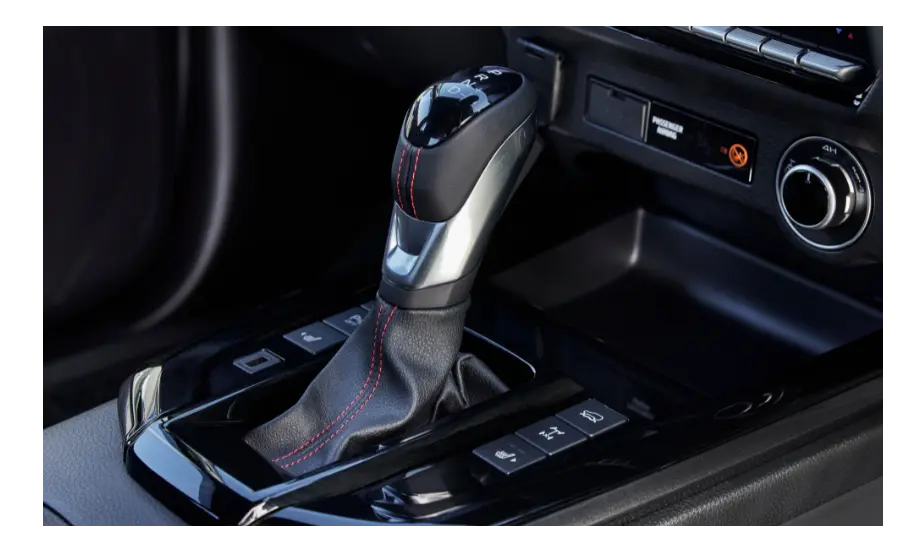

6-SPEED TRANSMISSION

Whether the Isuzu MU-X is used for work or play, its 6-speed automatic transmission offers ease of operation while providing vehicle driveability and flexibility.

LADDER RAIL CHASSIS

The ladder rail chassis of the MU-X is 8kg lighter, whilst being 20% more rigid. This assists with towing performance and on/off-road performance.

HILL DESCENT CONTROL

This feature electronically applies the brakes to ensure a smooth, controlled descent, giving you the confidence to tackle the trickiest downhill terrain.

technology

 The all-new MU-X brings an entire new level of technology. As standard, the all-new MU-X has a 9.0" touchscreen with inbuilt satellite navigation, wireless Apple CarPlay & Android Auto phone mirroring capability - allowing you to project sat nav directions, play your music, make and receive calls and more. For the owner that spends plenty of time on the open road, the MU-X also includes adaptive cruise control which automatically adjusts your speed depending on the vehicle in front of you.

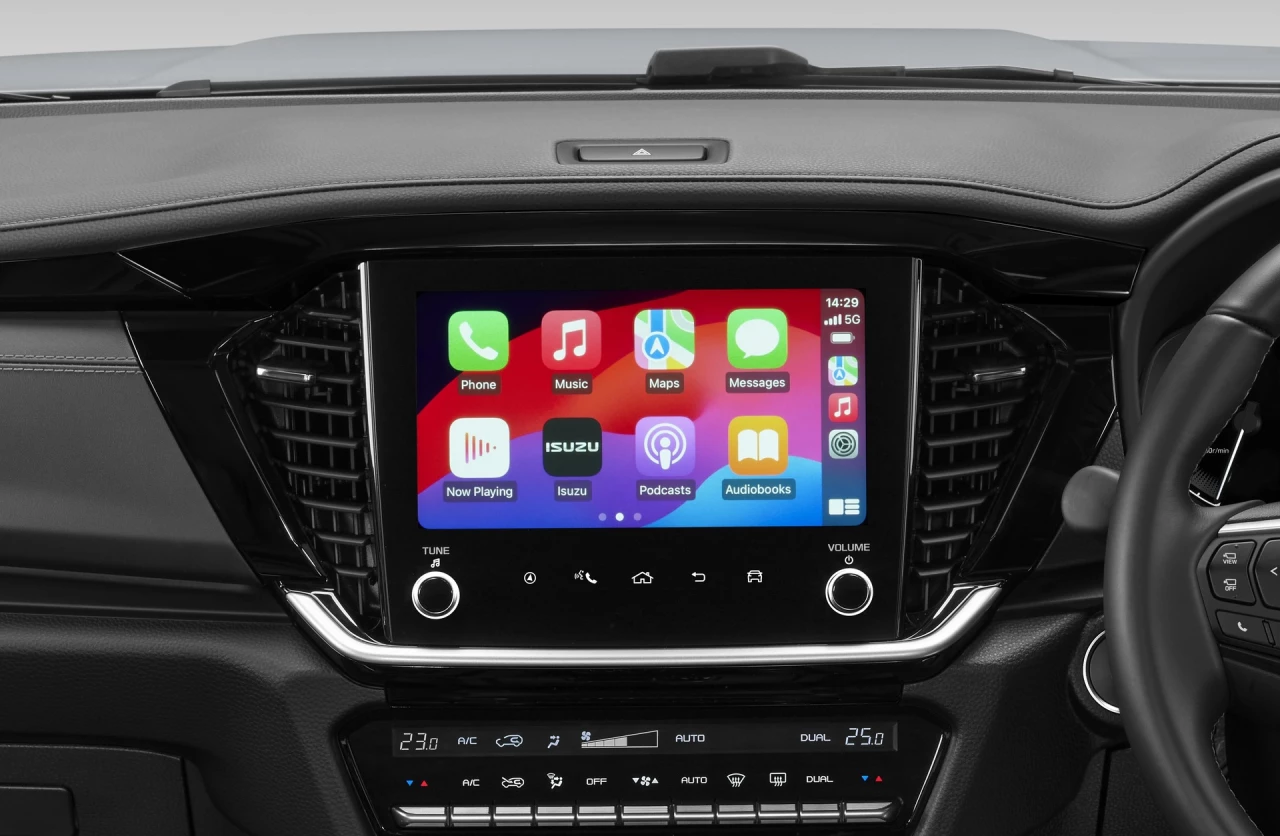

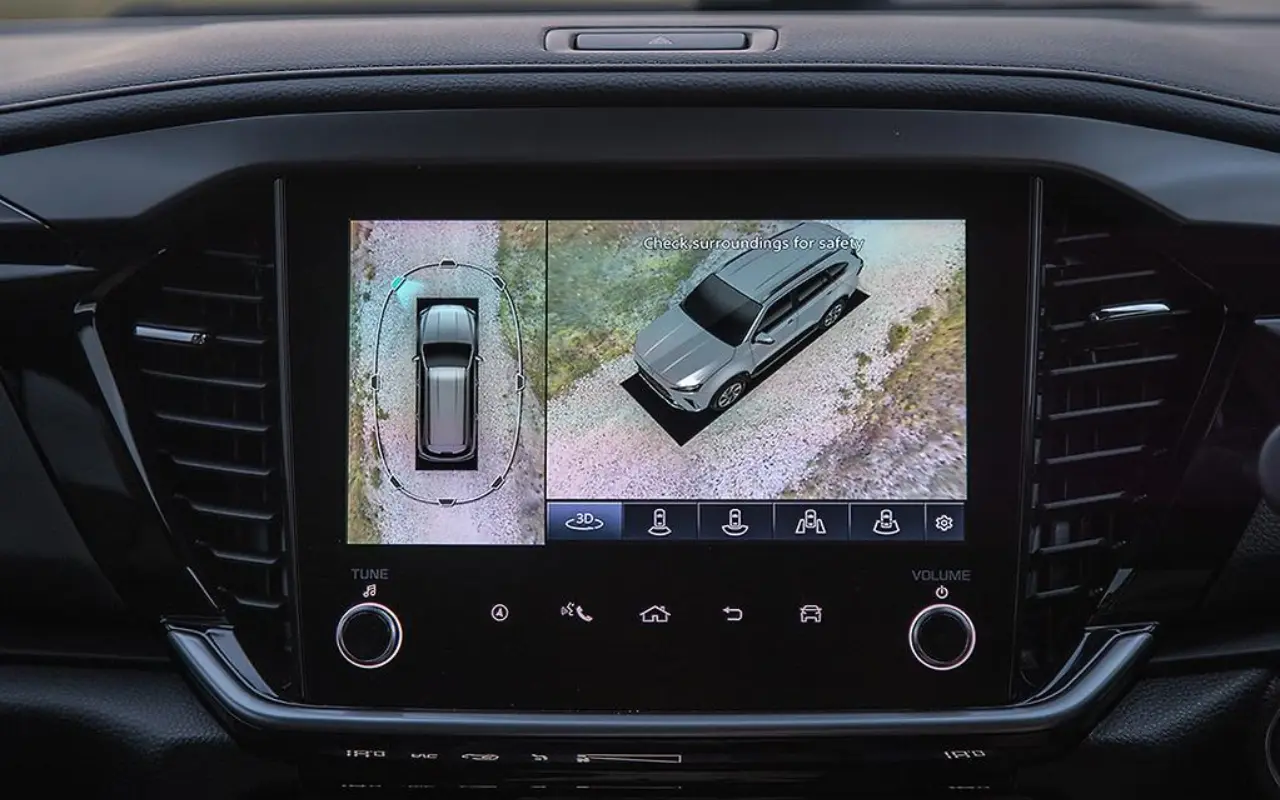

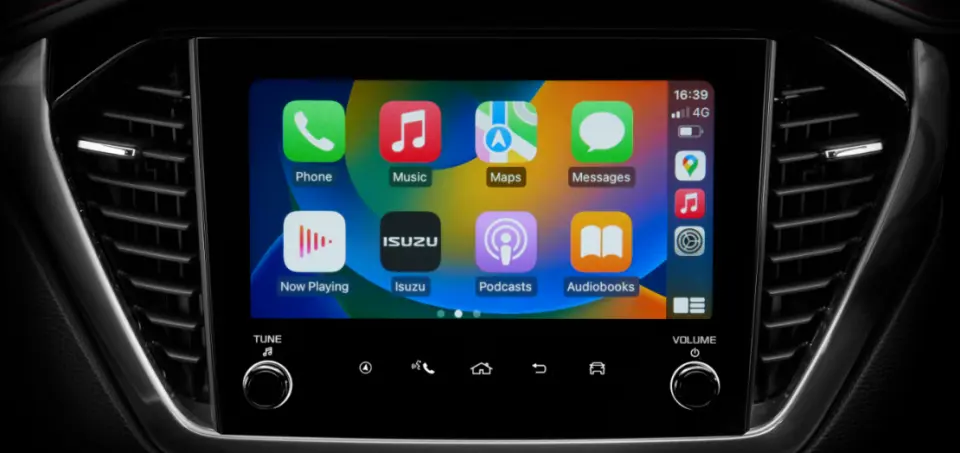

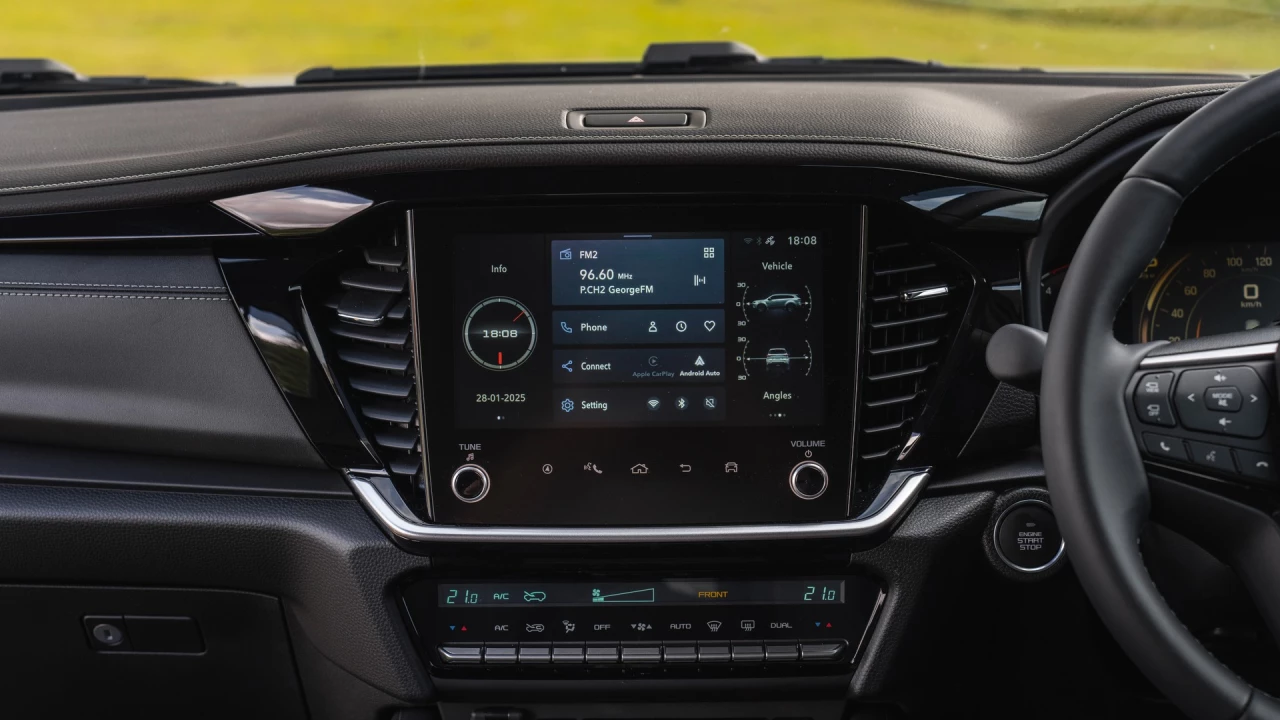

9" TOUCHSCREEN MULTIMEDIA SYSTEM

Your entertainment needs are at your fingertips with the premium 9" touchscreen audio system, featuring USB, Bluetooth® phone and audio streaming, iPod® connectivity, and an inbuilt satellite navigation system to keep you on the right track.

APPLE CARPLAY® AND ANDROID AUTO™

The all-new MU-X features wireless Apple CarPlay & Android Auto phone mirroring capability allowing you to project sat-nav directions, play music, make and receive calls, and more.

DUAL ZONE CLIMATE CONTROL AIR CONDITIONING

The climate control air-conditioning on the all-new MU-X now includes dual-zone functionality enabling both front seat passengers to be able to select their own desired temperature. Back-seat passengers benefit from rear air vents for added air circulation.

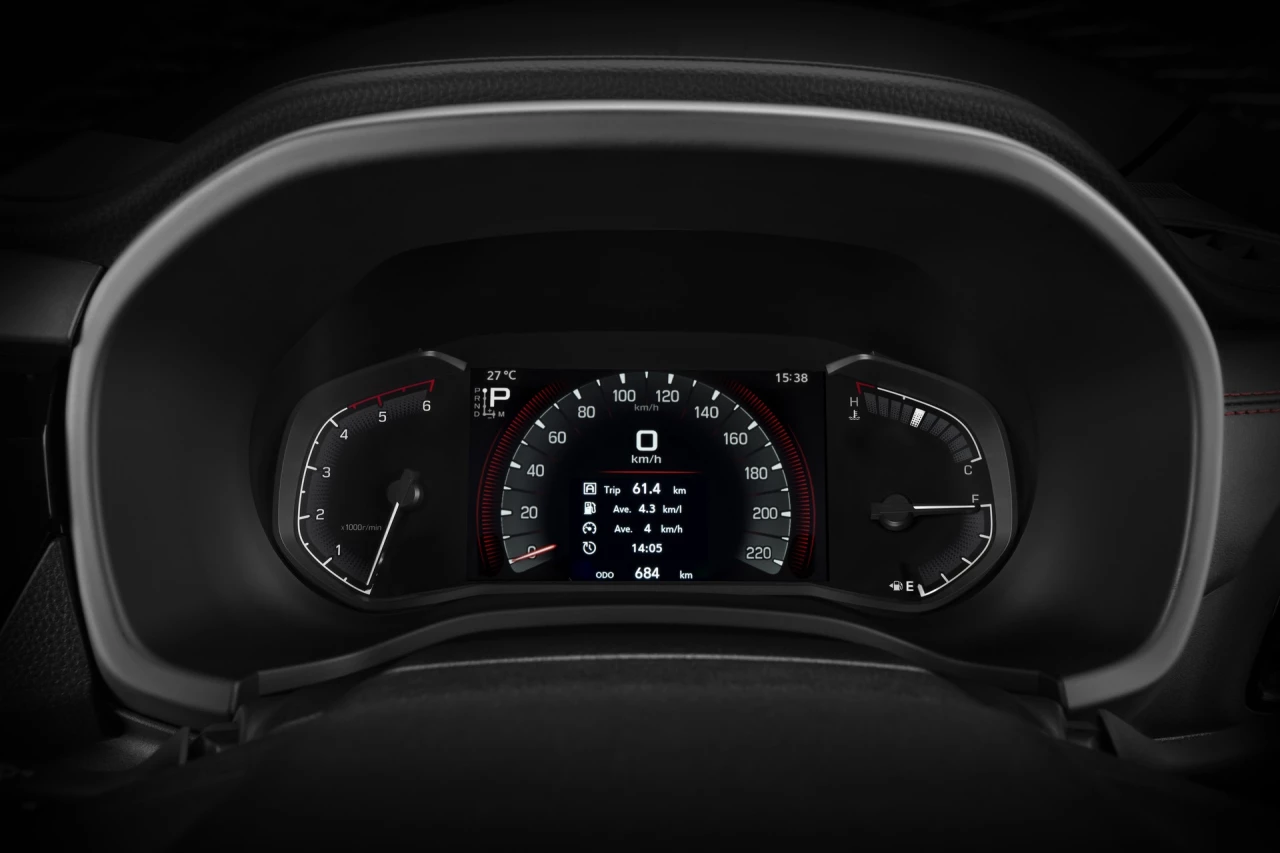

Multi Info DISPLAY

The new smart Multi Information Display (MID) includes a digital speedometer, safety information, fuel economy and range, odometer, trip information, and a service reminder. This information is conveyed via a new advanced colour  TFT display.

RAIN SENSING WIPERS

Automatic rain-sensing wipers use a sensor on the windscreen to detect moisture and will adjust the wiper operation automatically. This clever technology is standard on the all-new MU-X.

safety



Standard across the range, Isuzu’s Intelligent Driver Assistance System (IDAS) technology includes an extensive list of both active and passive safety systems. Employing state-of-the-art sensors and a stereo camera, IDAS constantly monitors your surrounding environment for danger. Should it detect a collision is imminent, the system will work to help the driver to defuse dangerous situations via alert systems and automated functions. Each MU-X model includes eight airbags as standard and a stronger, more robust chassis, as well as a reinforced cabin safety cell for ultimate protection.

And to prove its credentials, the all-new MU-X has achieved a 5-star ANCAP safety rating. The MU-X is there to look after you no matter what the situation.

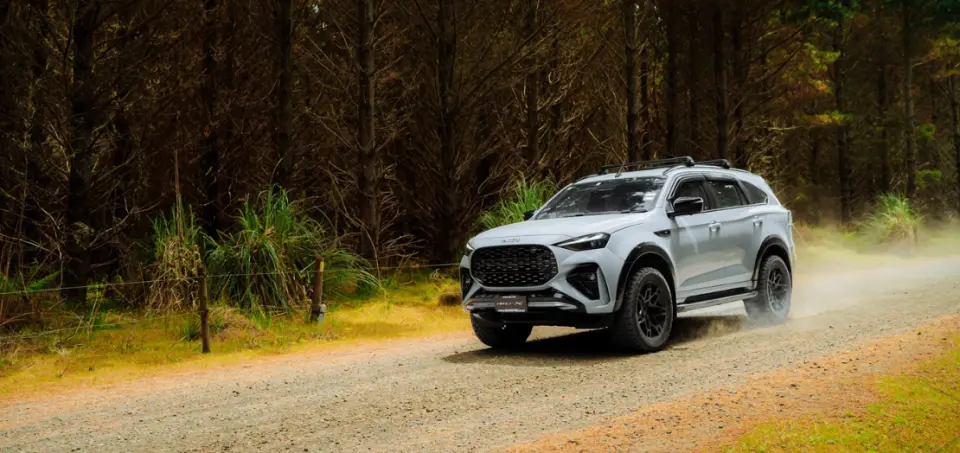

5-STAR ANCAP SAFETY RATING

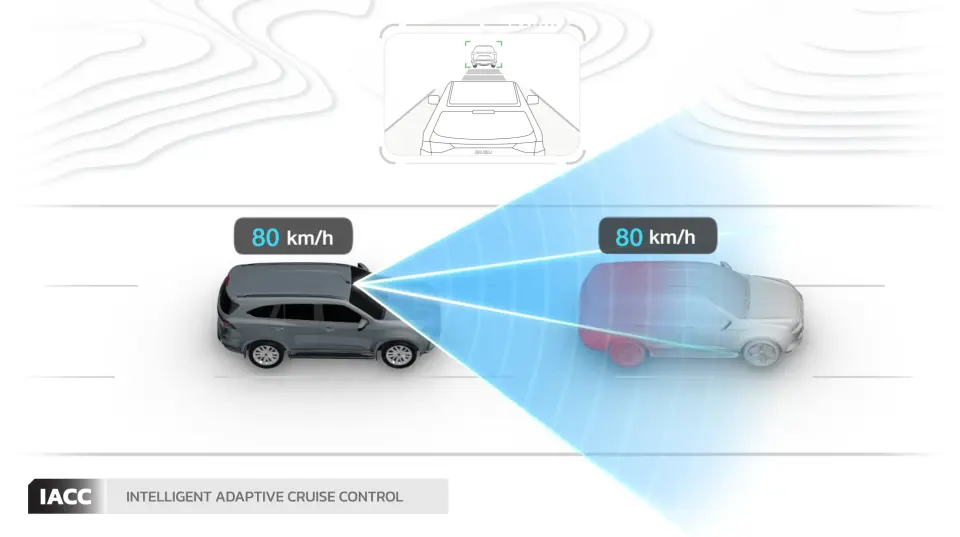

ADAPTIVE CRUISE CONTROL (ACC)

Automatically adjusts your speed based on vehicles around you when cruise-control is activated making open road driving a breeze.

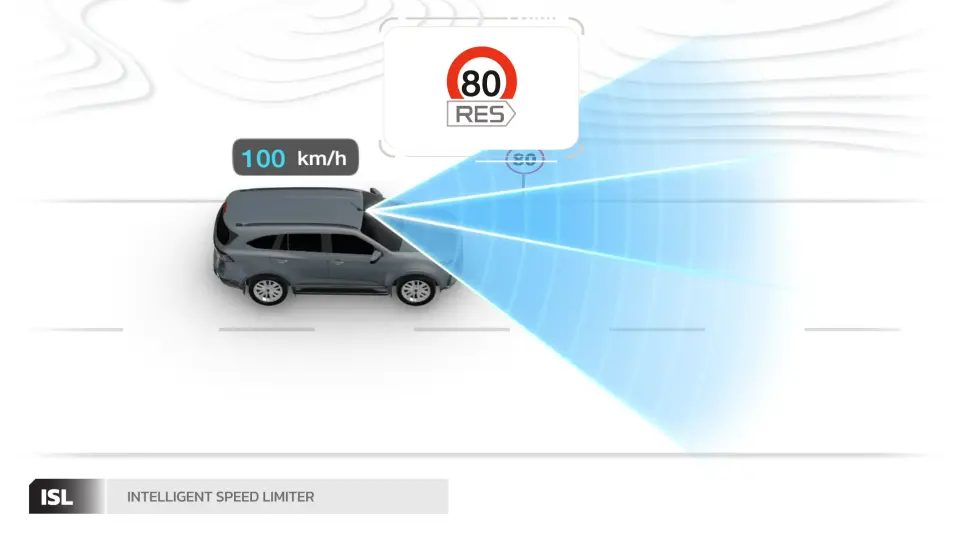

DRIVER ATTENTION ASSIST (DAA)

Your MU-X recognises traffic signs, displaying information such as speed limits in the Multi-Information Display (MID) for easy reference.

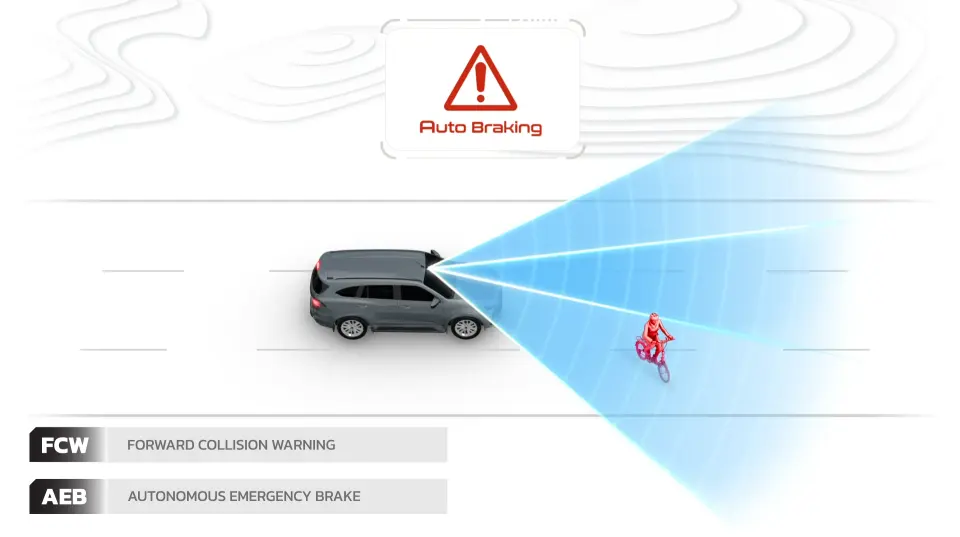

Autonomous Emergency Braking (AEB)

If your MU-X detects a potential collision, emergency braking is applied automatically. That's clever and safe technology to help keep you and others safe out on the road.

Forward Collision Warning (FCW)

An audible warning sounds and red warning lights flash on the dashboard when an obstacle is detected in your path giving you a chance to avoid a collision.

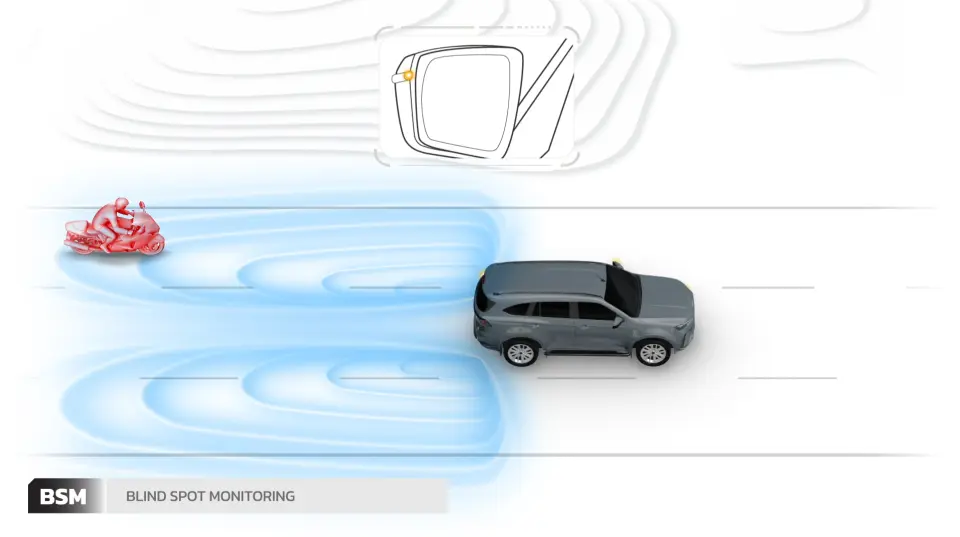

BLIND-SPOT MONITORing system (BSM)

BSM provides a visual warning in your side mirrors when an obstacle is approaching in your blind spot. A must-have safety feature when out on the open road.

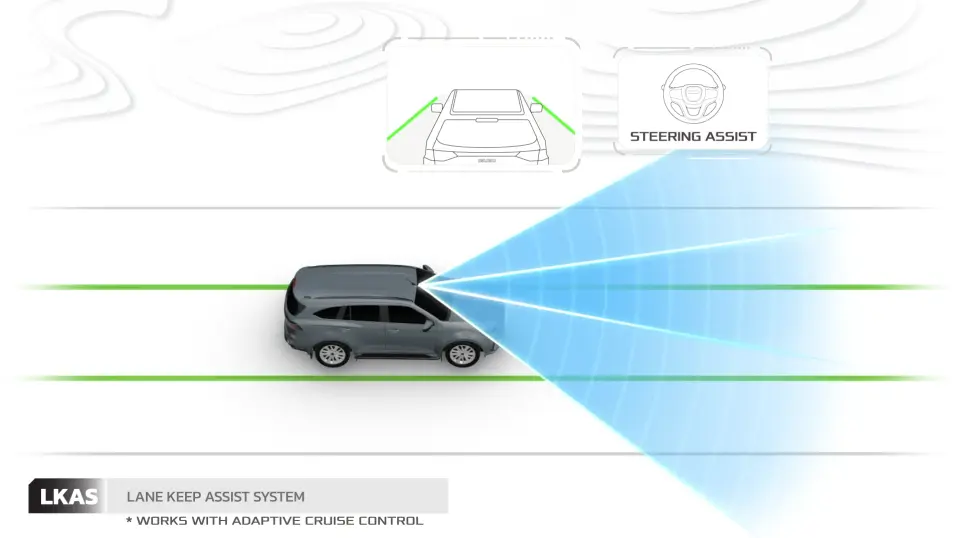

LANE KEEPING ASSIST SYSTEM

Lane Keep Assist (LKA), Emergency Lane Keeping (ELK) and Lane Departure Prevention (LDP) work to help prevent collisions with other drivers should your MU-X begin to drift across its lane.

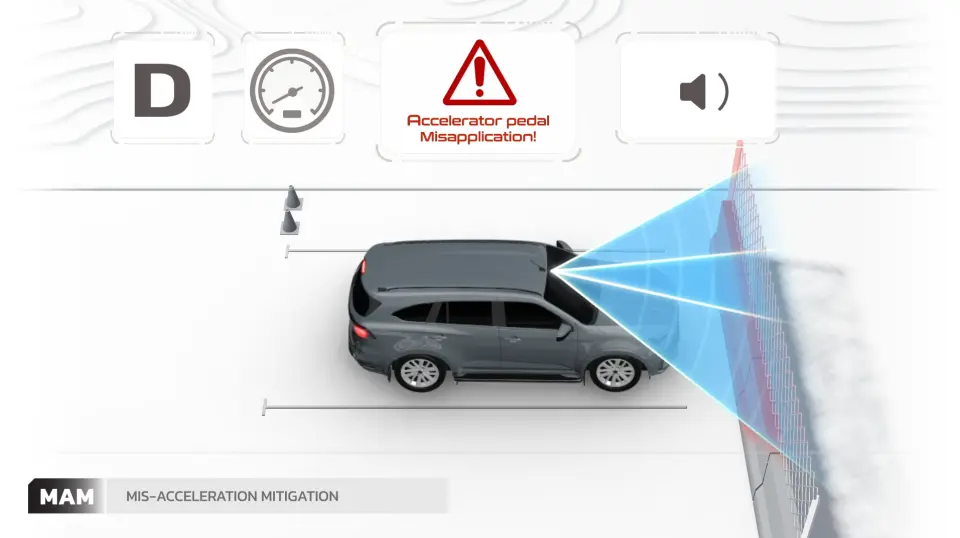

MIS-ACCELERATION MITIGATION

In slow-moving areas such as car parks, the stereo cameras determine whether the accelerator has been applied accidentally. Should a potential collision be detected, the brakes are automatically applied.

passive safety technology

 Careful attention to detail allows Isuzu to deliver higher levels of passive safety features. Safety features like multiple airbags, parking sensors, a reversing camera and automatic lights/wipers provide piece of mind under all situations.

8 airbags FOR FULL COVERAGE

The MU-X is fitted with dual front airbags, side impact airbags, curtain airbags, driver knee airbag and a segment first front centre airbag, providing excellent level of safety to all occupants.

AUTOMATIC LIGHTS & HIGH BEAM

Day or night? Rain or shine? The MU-X takes a few of the little inconveniences under its wing like automatic light control, including a light sensor that turns headlights on or off depending on the time of day and will control headlight beams if oncoming traffic is detected.

HILL START AND HILL DESCENT systems

The Hill Start Assist (HSA) function engages automatically on significant gradients to prevent the MU-X rolling when moving from a stationary position. The Hill Descent Control (HDC) allows a smooth hill descent at a controlled speed.

AUTOMATIC RAIN SENSING WIPERS

The MU-X has built-in rain-sensing wipers, ensuring you never lose sight of the road in wet weather conditions.

FRONT & REAR PARKING SENSORS

Front & rear parking sensors provide instantaneous feedback regarding nearby obstacles whilst conducting reversing maneuvers.

EMERGENCY STOP SIGNAL (ESS)

If an emergency braking manoeuvre is performed the taillights will flash to warn following drivers to slow down.

Specifications

MU-X LS-T

MU-X LS-T

Pricing

Recommended Selling Price (RSP) **
$71,990
Recommended Retail Price (RRP)
$83,490

Engine

Series
Isuzu 4JJ3-TCX
Description
3.0 litre turbo-diesel, in-line 4-cylinder, DOHC, 16-valve with Diesel Particulate Diffuser (DPD)
Maximum torque
450Nm @ 1600 to 2600 rpm
Maximum power
140kW @ 3600 rpm
Bore x stroke
95.4mm x 104.9mm
Displacement
2999cc
Compression ratio
16.3 : 1
Cylinder head
Isuzu-patent special aluminium alloy
Valve gear
Chain-driven dual overhead camshafts, roller rockers, 4 valves/cylinder
Induction
Electronic high pressure common rail direct fuel injection with VSS (Variable Swirl System) and intercooled electric control VGS (Variable Geometry System) turbocharger
Cylinder block
Cast iron upper with induction-hardened cylinder bores, cast alloy lower
Emission level
Euro 5
Alternator
120 amp with Intelligent Battery Sensor (IBS)

Chassis

Chassis type
Ladder frame chassis constructed with high-tensile steel with 9 crossmembers
Front suspension
Independent, high-ride, coil springs, gas shock absorbers, upper and lower wishbones, stabiliser bar
Rear suspension
Multi-link coil suspension, gas shock absorbers, stabiliser bar

Steering

Steering type
Electric power steering with speed-sensing steering feel (light at low speed, heavy at high speed); tilt and telescopic adjustable steering wheel
Steering specification
Speed-sensitive variable capacity Electric power system; 3.84 turns lock-to-lock via tilt-adjustable steering wheel

Axles

Front
Independent 4x4: fully floating with outer CV, inner double offset joints and equal length driveshafts. Rating: 1450kg
Rear
Rigid semi-floating banjo with hypoid final drive and dual tapered needle roller bearings. Rating: 1650kg

Brakes

Braking system
Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD), Electronic Stability Control (ESC), Emergency Brake Assist (EBA), Traction Control System (TCS), Roll Over Mitigation, Hill Start Assist (HSA), Hill Descent Control (HDC) and Trailer Sway Control (TSC)
Braking specification
All models: 320mm dia. ventilated front discs with 2-piston calipers, 318mm dia. ventilated rear discs with 1-piston calipers
Parking brake
Electric operated parking brake

Transmission

Transmission specs
Aisin AWR6B45 II 6-speed with sequential shift and brake shift lock electronically controlled, tri-mode with Adaptive Logic Control and fuel-saving lock-up torque converter on gears 3, 4, 5 and 6.
Uphill/Downhill Transmission Control: holds gear in varied-gradient ascents, selects gear on steep descents to hold speed with engine braking
Ratios
1st: 3.600 2nd: 2.090 3rd: 1.488 4th: 1.000 5: 0.687 6th: 0.580 Reverse: 3.732
Final drive
3.727
Snorkel breather system
Snorkelled diff breathers to increase fording depth and reduce mud blockage
Transfer gearing
4x4 low-range: 2.482 4x4 high-range: 1.000
4x4 system
“Rough Terrain Mode” and “Terrain Command” control with ‘shift on the fly’ 2-high ↔ 4-high selection at up to 100km/h, 4-low with rear differential lock
Drivetrain system
TCS (Traction Control System) on all model variants

Wheels and Tyres

Wheel type
20" x 7.5" alloy;  265 / 50 R20 Highway-Terrain
Spare wheel type
Full size alloy spare wheel

Warranty

Warranty
For the ultimate peace of mind, every Isuzu MU-X comes standard with a comprehensive, bumper-to-bumper 3 years/100,000km warranty*.
Roadside assistance

Enjoy up to 3 years or 100,000km of roadside assistance, whichever occurs first.

Safety

IDAS
Every MU-X comes with Isuzu’s Intelligent Driver Assistance System (IDAS# ) built-in to protect and enhance the driving experience. IDAS includes smart technologies as well as other passive and active safety features.
ANCAP rating
5 star ANCAP rating (2020 criteria)

Safety Features

4-channel 4-sensor Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD)
Yes
Electronic Stability Control (ESC)
Yes
Traction Control System (TCS)
Yes
Emergency Brake Assist (EBA)
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Autonomous Emergency Braking (AEB)
Yes
Turn Assist with AEB
Yes
Post-Collision Braking
Yes
Forward Collision Warning (FCW)
Yes
Misacceleration Mitigation
Yes
Adaptive Cruise Control (ACC) with Stop and Go functionality
Yes
Traffic Sign Recognition (TSR)
Yes
Intelligent Speed Limiter
Yes
Manual Speed Limiter
Yes
Lane Departure Warning (LDW)
Yes
Lane Departure Prevention (LDP)
Yes
Lane Keep Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Driver Attention Assist
Yes
Blind Spot Monitoring (BSM)
Yes
Rear Cross Traffic Alert (RCTA)
Yes
Reversing camera
Yes
Rear parking sensors
Yes
Front parking sensors
Yes
8 Airbags: dual front, curtain, side, driver’s knee and far side airbags
Yes
Height-adjustable upper mounts for front seat belts
Yes
Pre-tensioners with load limiters for front seat belts
Yes
Pre-tensioners with load limiters for outer 2nd row belts
Yes
3-point retractable seat belts for all rear and centre seating positions
Yes
3-point retractable seat belts for third row positions
Yes
Intelligent seatbelt reminder (all seats)
Yes
2 childseat tethers and ISOFIX compatible anchor points
Yes
Height-adjustable head restraints for full-size seats
Yes
Child-proof rear door locks
Yes
Single 10 inch servo brake master cylinder
Yes
Side anti-intrusion bars inside all doors
Yes
Rear window demister with timer and intermittent wiper
Yes
Engine immobiliser
Yes
High Density Polyethylene (HDPE) fuel tank
Yes
High mount brake light on tailgate
Yes

Protection

Under-front steel skid plate
Yes
Steel plate guards: sump, transfer case, fuel tank leading edge; reinforced resin under fuel tank
Yes

Suspension and Brakes

Electric Park Brake with Auto Hold feature
Yes
Single 10 inch servo brake master cylinder
Yes
Rear 5-link coil suspension with stabiliser bar
Yes
Front independent, coil spring suspension w/gas shock absorbers, upper and lower wishbones and stabiliser bar
Yes
Heavy-duty brakes: 320mm ventilated front discs w/twin-pot calipers, 318mm ventilated rear discs with single-pot calipers
Yes

Seating

Seating trim
Leather
Front bucket whiplash protection seats
Yes
6-way adjustable driver seat
No
8-way electric adjustable driver seat
Yes
Electric adjustable lumbar support (driver seat only)
Yes
4-way electric adjustable front passenger seat
Yes
60:40 reclining split-fold second row seats with fold away centre arm rest
Yes
50:50 reclining split-fold third row seats
Yes
Variable heated front driver and passenger seats
Yes

In-cabin Storage

Upper and lower glovebox compartments
Yes
Power outlet in lower instrument panel
Yes
Centre floor console with two USB ports
Yes
Dual-purpose driver and front passenger cup holder tray
Yes
Rear passenger door cup holders
Yes
Second row fold out cup holder/storage tray
Yes
Third row outer armrests with integrated cup holders
Yes
Pockets on backs of front seats
Yes
Overhead console with twin map lights and flip-down sunglasses case
Yes
Front door storage compartment with bottle bulge
Yes
Two coat hooks
Yes
Flip up convenience hook behind passenger front seat
Yes
Storage space under rear cargo flooring
Yes
Tool storage space inside rear cargo wall (driver side)
Yes

Cabin Amenities

Dual zone climate control air-conditioning with integrated heater/demister
Yes
Second and third row air-conditioning vents with controls
Yes
Pollen and fine particle air filter
Yes
Power windows with one-touch up/down driver's window with safety stop
Yes
Comfort turn signal
Yes
Central locking with keyless entry
Yes
Smart keyless entry
Yes
Walk away door lock
Yes
Welcome home light
Yes
Push button start
Yes
Remote engine start
Yes

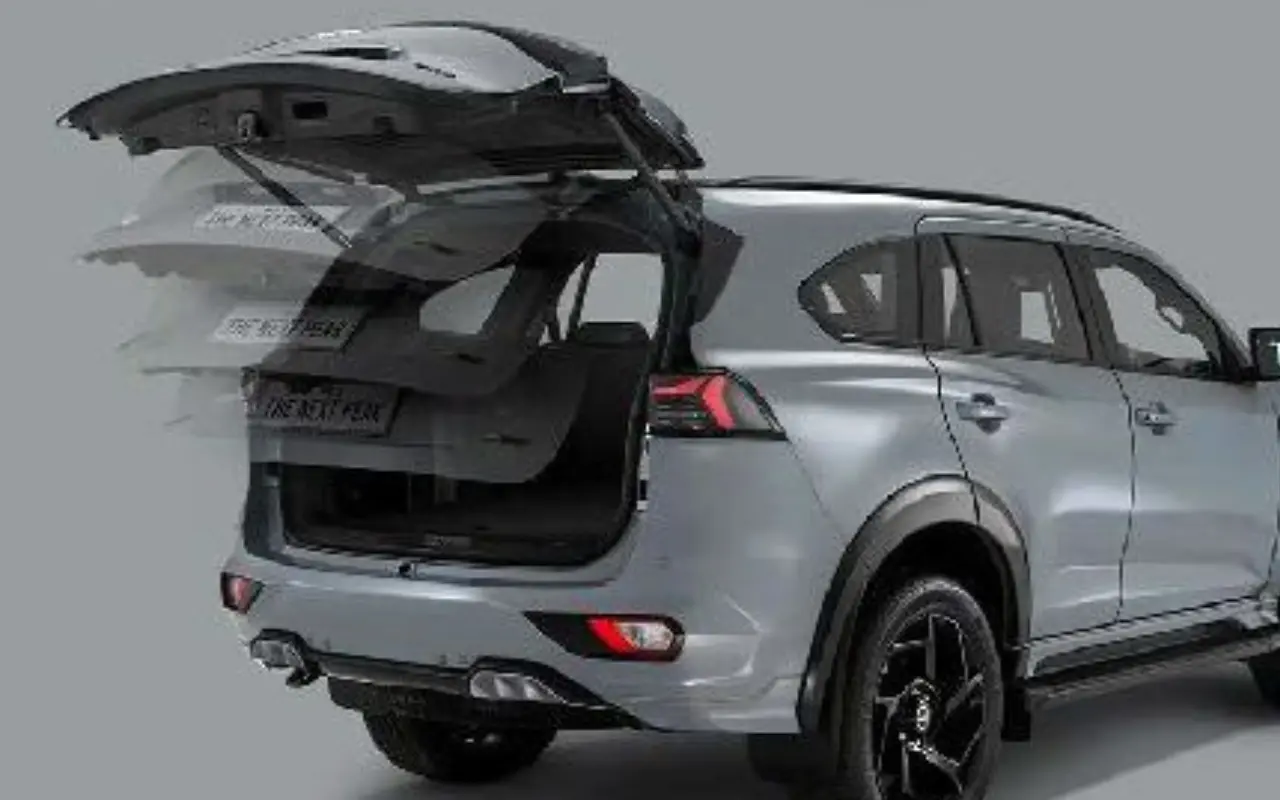

Remote power tailgate
Yes
Ambient door lighting
Yes
Centre console overhead guidelight
Yes
Power-adjustable door mirrors with turn indicator lights
Yes
8 speaker sound system
Yes
9 inch touchscreen display with Apple CarPlay® and Android Auto™
Yes
Built-in satellite navigation with MID turn-by-turn directions
Yes
Two rear centre console USB charging ports
Yes
Tilt and telescopic adjustable steering wheel with electric power steering
Yes
Leather steering wheel with cruise, audio and voice recognition controls
Yes
Smart MID with digital speedometer, safety information, fuel economy & range, odometer, trip information and service reminder
Yes
Tyre Pressure Monitoring System
Yes
Electro-luminescent gauges
Yes
"Terrain Command" 4x4 select dial
Yes
Rear Differential Lock button
Yes
Rough Terrain Mode button
Yes
Automatic Windshield Wipers
Yes
Intuitive Flat Wiper Blade
Yes
Auto-dimming rear view mirror
Yes
Sun visors with vanity mirrors (driver and passenger) and ticket retaining strap (driver)
Yes
Fixed A-pillar assist-grips for driver and front passenger
Yes
Fixed B-pillar assist-grips for rear passengers
Yes
Folding assist-grips for driver and front passenger
Yes
Folding assist-grips for rear passengers
Yes
Carpet flooring
Yes
12 volt power outlets in lower instrument panel and rear cargo area
Yes

Exterior Style

Short front overhang for optimal manoeuvrability and approach angle
Yes
Bi-LED headlights with auto-levelling function
Yes
Automatic headlights
Yes
Automatic high beam
Yes
Coming home light
Yes
LED Daytime Running Lights (DRLs)
Yes
LED fog lights
Yes
Tungsten silver and chrome grille
Yes
Colour-coded front bumper
Yes
Silver aluminium side steps
Yes
Colour-coded door handles
Yes
Powered tailgate with integrated rear spoiler
Yes
Colour-coded power fold-in door mirrors with integrated turn indicators
Yes
Rear privacy glass
Yes
Centre front roof-mounted bee-sting aerial
Yes
Roof rails (maximum load capacity 100kg)
Yes
LED rear combination lamps
Yes

Fuel Consumption (litres per 100km WLTP3)

Combined
9.5

CO2 (g/km)

Combined
252

Dimensions (mm unless stated otherwise)

Wheelbase
2855
Overall length
4850
Overall width (excluding door mirrors)
1870
Overall height
1825
Front overhang
895
Rear overhang
1100
Wheel track width
1570
Ground clearance
235
Turning circle diameter between kerbs (metres)
11.4
Approach angle
29.2°
Departure angle
26.4°
Ramp-over angle
23.1°
Wading depth
800

Interior (mm)

Leg room - front
1075
Leg room - 2nd row
915
Leg room - 3rd row
850
Shoulder room - front
1460
Head room - front
1020
Rear cargo space - 2nd & 3rd row flat
2138
Rear cargo space - 3rd row flat
1119
Rear cargo space - 3rd row up
311

Mass (kg)

Gross Vehicle Mass (GVM)
2800
Kerb weight
2175
Payload
625
Gross Combination Mass (GCM)
5900
Maximum towing mass (braked trailer)
3500
Maximum towing mass (non-braked trailer)
750
Maximum tow ball download (when fitted with genuine Isuzu UTE tow kit)
350
Fuel tank capacity (litres)
80
