2024

D-MAX LX

Available from $44,490

d-max lx | from $44,490

The LX ute is the workhorse in the 2024 Isuzu D-Max range. Along with having the 2024 D-MAX's striking new look, a 3L turbo diesel engine (the Isuzu standard) and 3500kg of braked towing power, the LX has a bunch of handy new tech features, such as tailgate assist, to make your life just a little bit easier. It's got variety in spades, coming in 2WD or 4WD powertrains, with Single, Space, and Double Cab variants available. It also comes with a 5 star ANCAP safety rating, with all the fancy tech to keep you safe day in, day out.

LX Double Cab 3.0 4x4 Automatic
LX Double Cab 3.0 4x4 Automatic
LX Double Cab 3.0 4x4 Automatic
LX Double Cab 3.0 4x4 Automatic
LX Double Cab 3.0 4x4 Automatic
LX Double Cab 3.0 4x4 Automatic
LX Double Cab 3.0 4x4 Automatic
LX Double Cab 3.0 4x4 Automatic

Splash White

Mercury Silver Metallic

Islay Grey Mica

Obsidian Grey Mica

Onyx Black Mica

Namibu Orange Mica

Spinel Red Mica

Biarritz Blue Metallic

meet the lx range

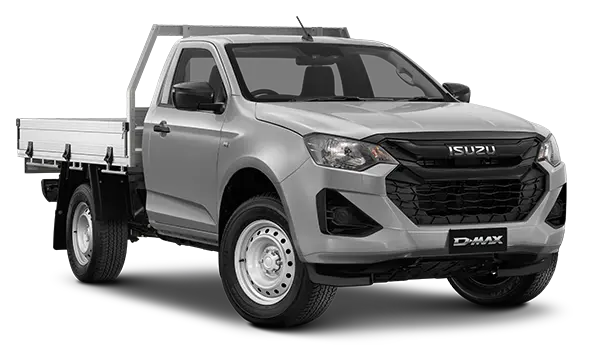

LX Single Cab/Chassis 3.0 4x4 Automatic

LX Single Cab/Chassis 3.0 4x4 Automatic

  • Strong 3.0L diesel turbo engine
  • Single cab
  • 6-speed automatic 4x4
  • 5* ANCAP safety rating
LX Double Cab 3.0 4x2 Automatic

LX Double Cab 3.0 4x2 Automatic

  • Strong 3.0L diesel turbo engine
  • Double cab
  • 6-speed automatic 4x2
  • 5* ANCAP safety rating

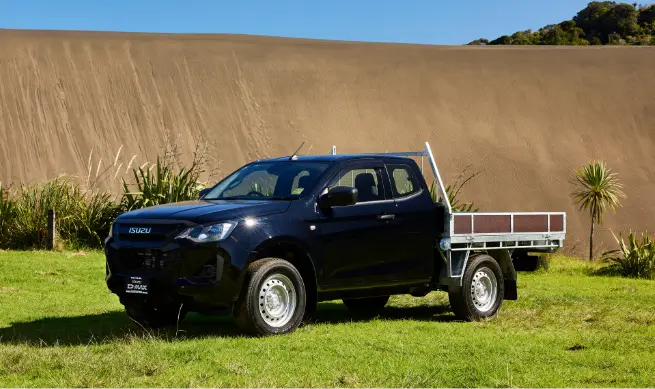

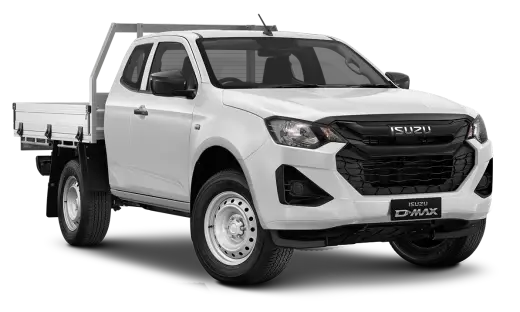

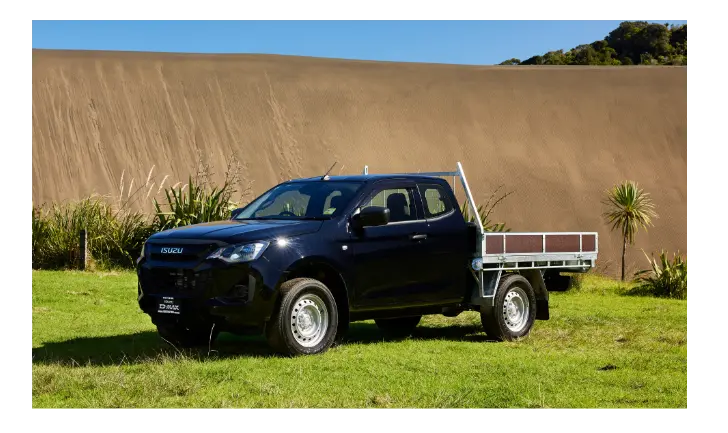

LX Space Cab/Chassis 3.0 4x4 Automatic

LX Space Cab/Chassis 3.0 4x4 Automatic

  • Strong 3.0L diesel turbo engine
  • Space cab
  • 6-speed automatic 4x4
  • 5* ANCAP safety rating

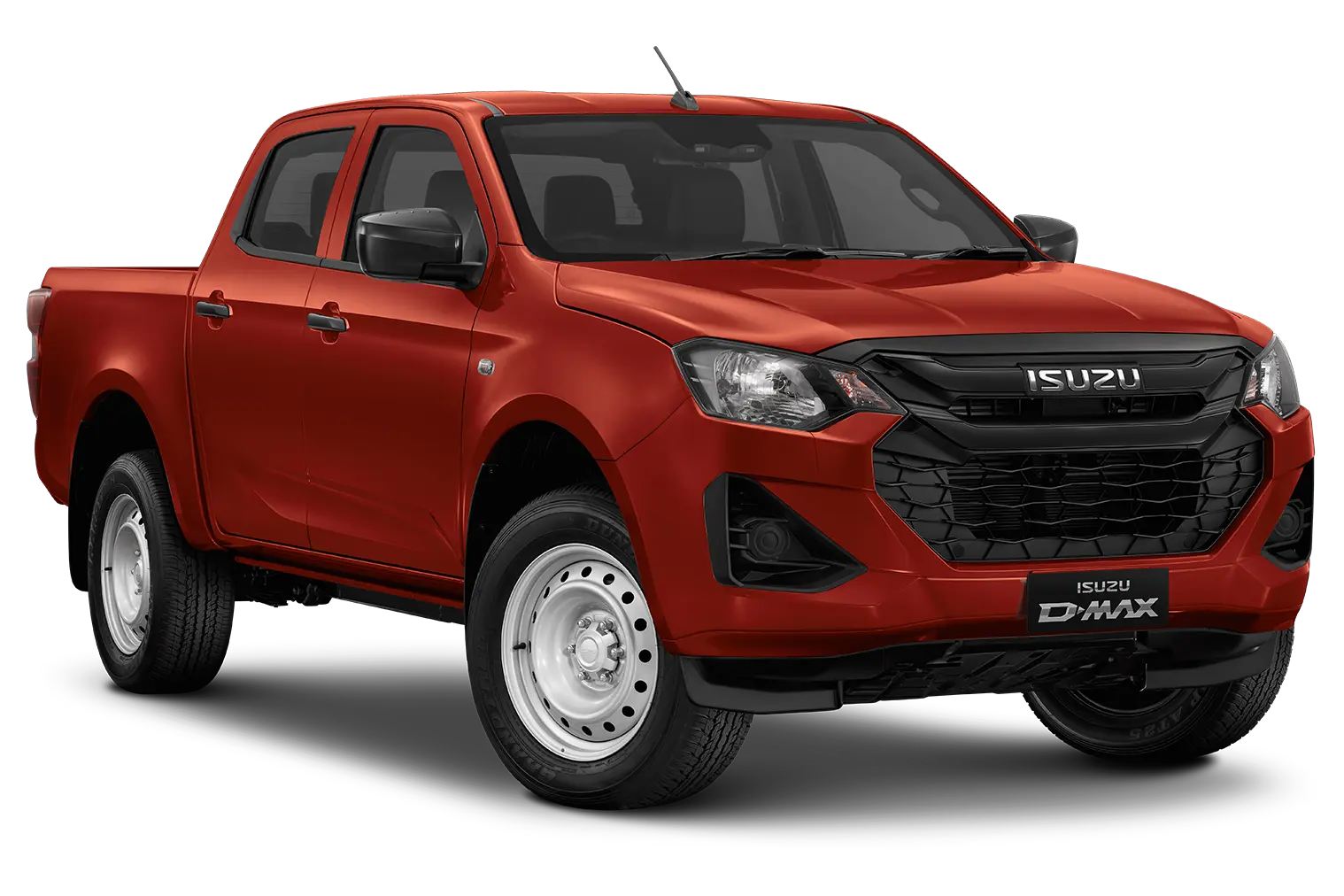

LX Double Cab 3.0 4x4 Automatic

LX Double Cab 3.0 4x4 Automatic

  • Strong 3.0L diesel turbo engine
  • Double cab
  • 6-speed automatic 4x4
  • 5* ANCAP safety rating

The EXTERIOR

2024 D-Max brings a new look to all models across the D-Max range, including the workhorse of the D-Max family, the D-MAX LX. The LX get the basics right first, however, it's still got handy exterior features to help you get around. And like all new D-Max's it's got all the gear to keep safe out on the open road.

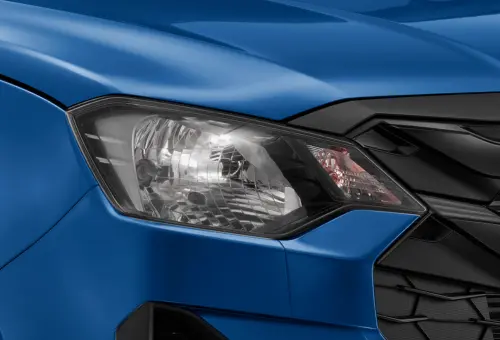

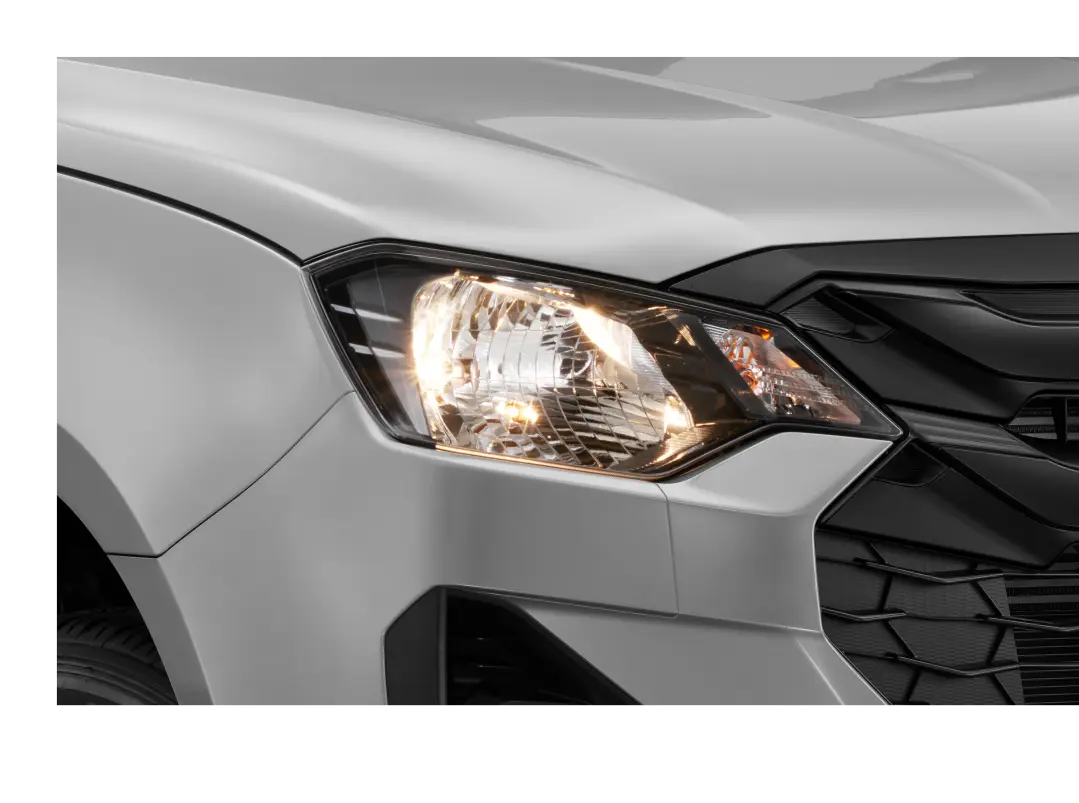

HALOGEN HEADLIGHTS

The LX is equipped with powerful halogen headlights for excellent visibility under all conditions. Combined with these is automatic light control and high beam assist.

ELECTRIC WINDOWS & MIRRORS

 Electric windows are standard on the D-Max, easy as that. As an added luxury, the exterior mirrors are also electrically adjustable from the cabin.

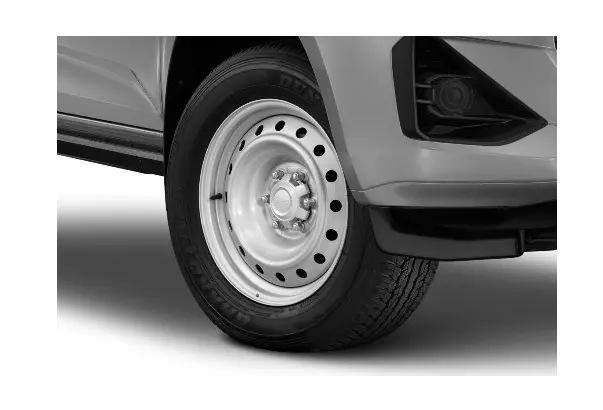

17" WHEELS

Durable and purposeful 17" steel wheels ensure that the D-Max LX can handle any condition thrown at it. Included are high quality All-Terrain (AT) tyres for ultimate road-holding on any surface.

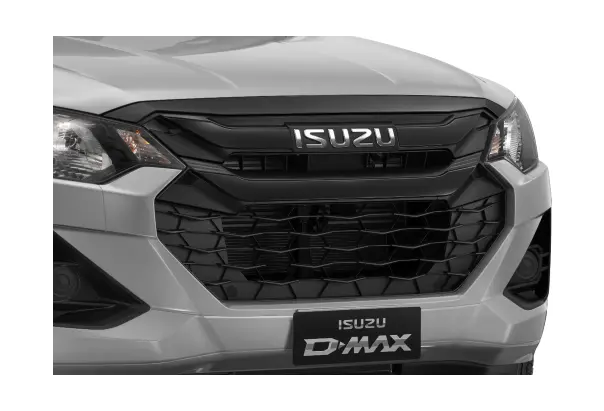

redesigned Black Grille

Strong, bold and distinctive, the new 2024 LX, matte black double grill features the Isuzu logo loud and proud.

The Interior

Isuzu's is all about inclusion of features that are intuitive to use, easy to reach and have driver convenience in mind always. The 2024 D-MAX is no different, thoughtfully designed to make the driver, and passengers life easier. It was also developed with Isuzu's "Hexa-Pod" concept in mind, a design philosophy that embobodies being functional, relaxing and attractive. That doesn't sound too bad eh?

Design

When designing the interior of the all-new D-Max the engineers were given a directive to use an airplane cockpit as inspiration. This means that control ergonomics, occupant comfort, material quality & durability, and driver visibility are key priorities. The team at Isuzu Utes nailed the brief, once you jump in the 2024 D-Max you will never want to leave.

Comfort

Sculpted sports seats featuring a foldable rear centre armrest. Wide front seat rails provide for large boots/feet to easily slip under the front seat for rear passengers. Entry and exit have been made easier thanks to large door openings. Double sealed doors and an excess of soundproofing make the D-Max a peaceful and relaxing ride.

Internal storage

With 10 different positions for cups or bottles, the upper front console provides storage for tissues and has a 12v 120-watt power socket for added convenience. The upper center console storage, under steering wheel storage, deep door pockets, and seatback pockets provide storage solutions for those easily misplaced but much-needed items.

Multi-function steering wheel

The durable multi-function steering wheel puts Bluetooth, audio and cruise controls at your fingertips so you can concentrate on the road ahead.

Rear seat split fold

The rear seats of the LX Double Cab feature a unique 60/40 split fold up/down configuration allowing for extra storage space in the rear of the cab.

enhanced Performance

2024 D-Max incorporates Isuzu's signature 3L turbo-diesel engine as standard. This stems from almost 90 years of experience producing diesel engines, beginning way back in 1936 when developing Japan's first air-cooled automotive diesel engine. Constant technological improvements, innovations and in-depth experience across the production of more than 26 million diesel engines means Isuzu is an established global leader in developing capable and efficient engines for all kinds of applications.

ISUZU 4JJ3 3.0L ENGINE

The dependable 3.0L 4JJ3 turbo-diesel engine has been given a tickle up and now produces more power and torque. The advanced high-pressure injector system, electronically controlled variable geometry turbocharger and engine internals result in 140 kW of power plus 450 Nm of torque all while maintaining class-leading dependability.

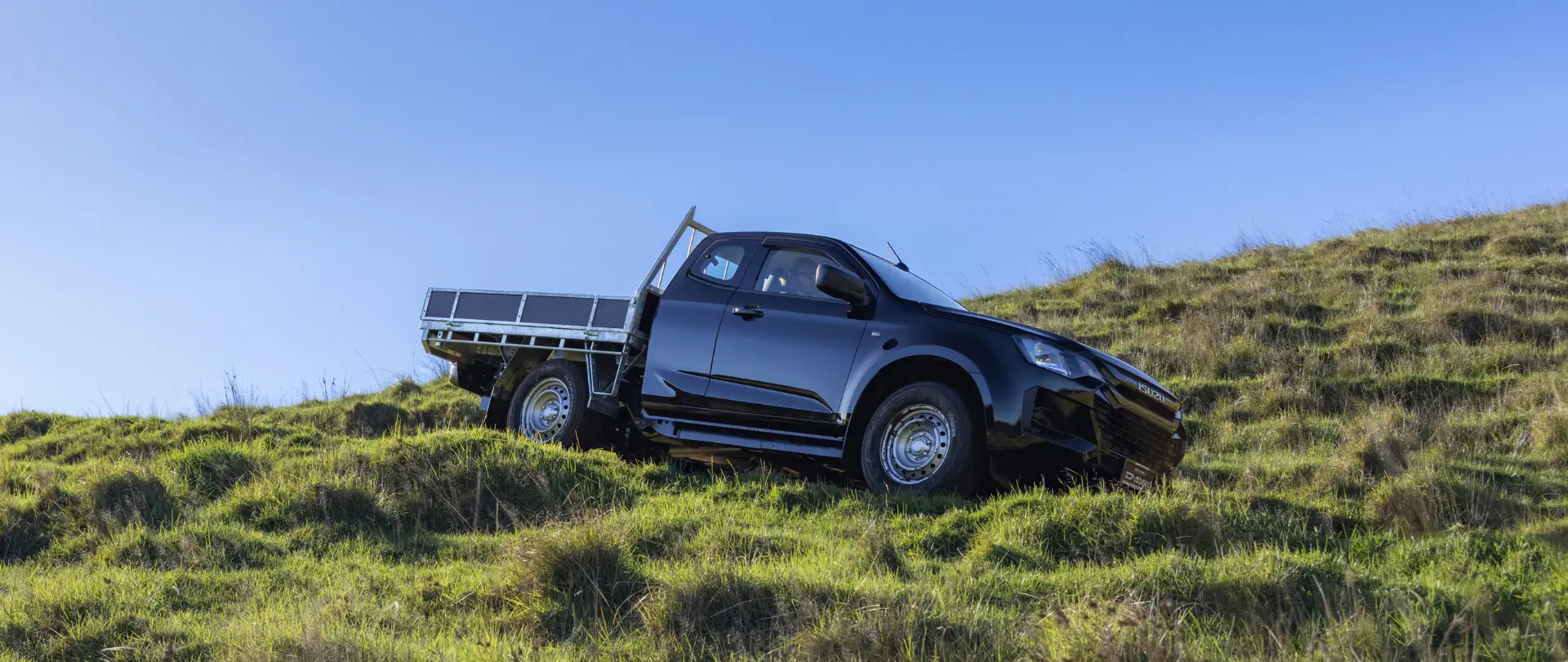

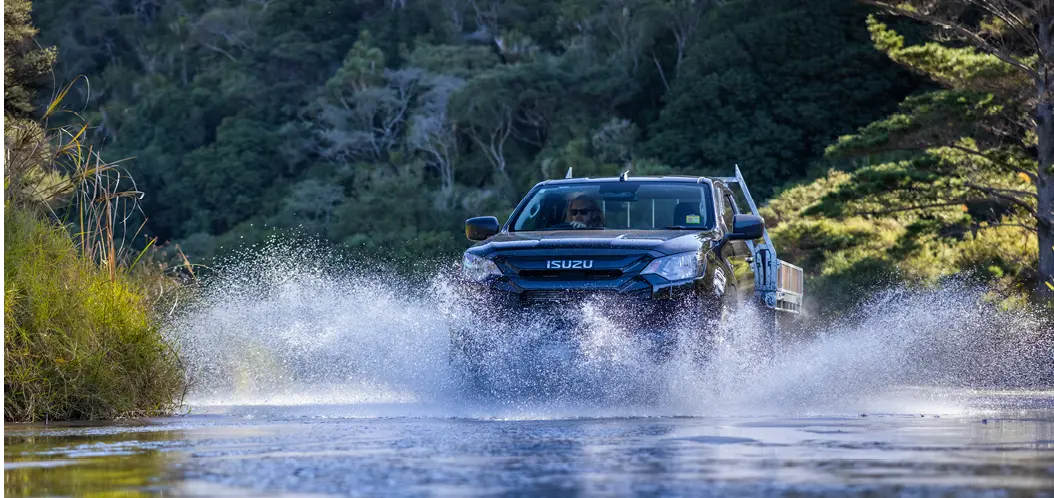

OFF ROAD PERFORMANCE

The D-Max's legendary go-anywhere ability has been further improved providing you a ute that is as at home up in the backcountry hills as it is out on SH1. Wading depth has been increased to 800mm for those extra deep crossings, whilst 4x4 models now include a rear differential lock for improved traction on slippery surfaces. For on-road excursions, there is a range of new electronic driving aids to keep you on the straight and narrow.

3500KG TOWING ABILITY

Tow up to 3500kg*. Your search for the perfect travelling companion is over. Isuzu’s legendary 3-litre turbo diesel engine delivers high torque across the range, making light work of a caravan, boat, or trailer. Trailer Sway Control (TSC) assists with towing and will assist with towing in high winds or on uneven surfaces.

*3,500kg Braked Towing

Terrain command

On top of a 6 speed transmission, the Terrain Command dial in the Isuzu D-Max 4x4 allows you to shift between 2WD and 4WD Hi mode on the move (up to 100km/h) for improved traction when driving conditions change.

*4wd Variants

LADDER RAIL CHASSIS

The ladder rail chassis of the D-Max is 8 kg lighter than ever whilst being 20% more rigid. This assists with towing performance and on/off road performance.

HILL DESCENT CONTROL

This feature electronically applies the brakes to ensure a smooth, controlled descent, giving you the confidence to tackle the trickiest downhill terrain.

technology

The all-new D-Max brings an entire new level of technology to the range. LX models include a advanced 7.0" touchscreen multi-media system complete with wireless Apple CarPlay & Android Auto phone mirroring capability allowing you to project maps, play music, make and receive calls and more. For the owner that spends plenty of time on the open road, the D-MAX also includes adaptive cruise control which automatically adjusts your speed depending on the vehicle in front of you.

USB-C CHARGING CAPABILITY

APPLE CARPLAY® & ANDROID AUTO™

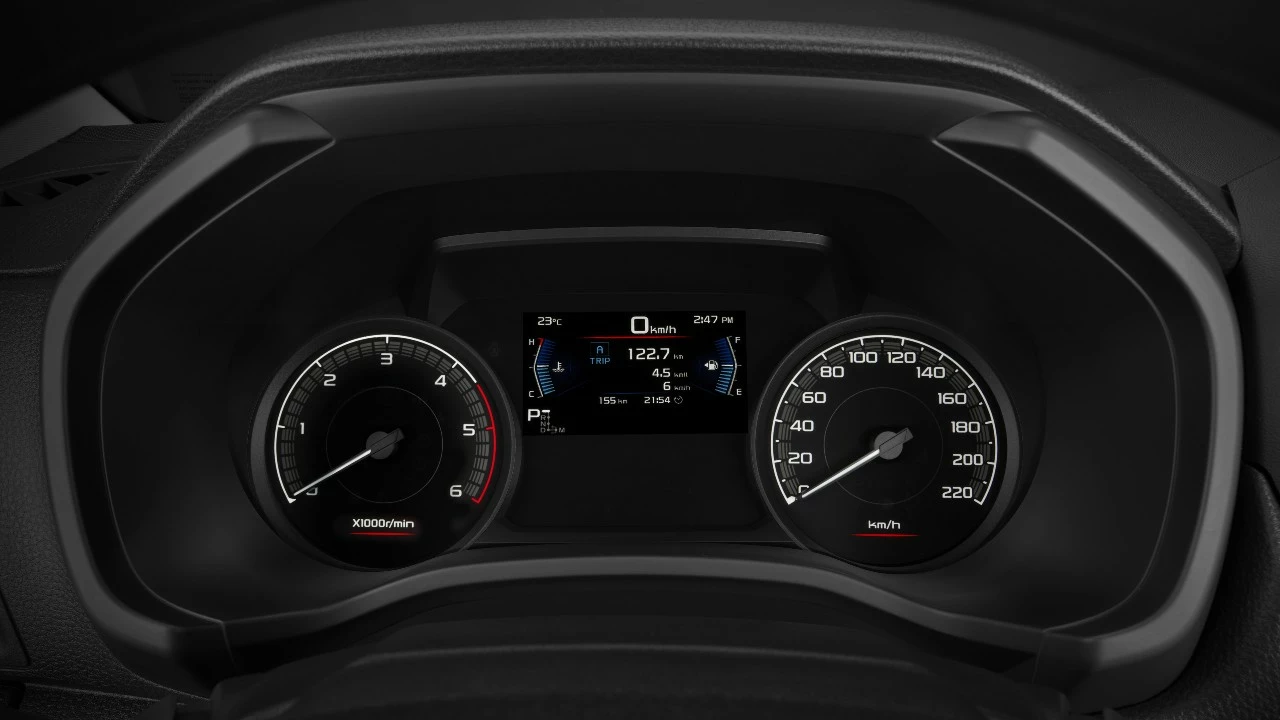

4.2" MULTI INFORMATION DISPLAY (MID)

Safety

ADAPTIVE CRUISE CONTROL (ACC)

Automatically adjusts your speed based on vehicles around you when cruise-control is activated making open road driving a breeze.

DRIVER ATTENTION ASSIST (DAA)

Your D-MAX recognises traffic signs, displaying information such as speed limits in the Multi-Information Display (MID) for easy reference.

Autonomous Emergency Braking (AEB)

If your D-MAX detects a potential collision, emergency braking is applied automatically. That's clever and safe technology to help keep you and others safe out on the road.

Forward Collision Warning (FCW)

An audible warning sounds and red warning lights flash on the dashboard when an obstacle is detected in your path giving you a chance to avoid a collision.

BLIND-SPOT MONITORing system (BSM)

BSM provides a visual warning in your side mirrors when an obstacle is approaching in your blind spot. A must-have safety feature when out on the open road.

LANE KEEPING

Lane Keep Assist (LKA), Emergency Lane Keeping (ELK) and Lane Departure Prevention (LDP) work to help prevent collisions with other drivers should your D-MAX begin to drift across its lane.

MISACCELERATION MITIGATION

In slow-moving areas such as car parks, the stereo cameras determine whether the accelerator has been applied accidentally. Should a potential collision be detected, the brakes are automatically applied.

passive safety technology

 Careful attention to detail allows Isuzu to deliver higher levels of passive safety features. Safety features like multiple airbags, parking sensors, a reversing camera and automatic lights/wipers provide piece of mind under all situations.

fitted with 8 airbags

The all-new D-Max is fitted with dual front airbags, side impact airbags, curtain airbags, driver knee airbag and a segment first front centre airbag, providing excellent level of safety to all occupants.

AUTOMATIC LIGHTS & HIGH BEAM

Day or night? Rain or shine? The new D-Max takes a few of the little inconveniences under its wing like automatic light control.  including a light sensor that turns headlights on or off depending on the time of day and will control headlight beams if oncoming traffic is detected.

HSA AND HDC systems

The Hill Start Assist (HSA) function engages automatically on significant gradients to prevent the Isuzu D-Max rolling when moving from a stationary position. The Hill Descent Control (HDC) allows a smooth hill descent at a controlled speed.

AUTOMATIC RAIN SENSING WIPERS

Every D-MAX has built-in rain-sensing wipers, ensuring you never lose sight of the road or trail ahead.

EMERGENCY STOP SIGNAL (ESS)

If an emergency braking maneuver is performed the taillights will flash to warn following drivers to slow down.

specifications

LX Single Cab/Chassis 3.0 4x4 Automatic

LX Single Cab/Chassis 3.0 4x4 Automatic

LX Double Cab 3.0 4x2 Automatic

LX Double Cab 3.0 4x2 Automatic

LX Space Cab/Chassis 3.0 4x4 Automatic

LX Space Cab/Chassis 3.0 4x4 Automatic

LX Double Cab 3.0 4x4 Automatic

LX Double Cab 3.0 4x4 Automatic

Pricing

Recommended Selling Price (RSP) **
$46,990
$44,990
$48,990
$55,490
Recommended Retail Price (RRP)
$56,990
$51,990
$58,990
$63,990
Assured Future Value ***
-
-
-
-

Engine

Series
Isuzu 4JJ3-TCX
Isuzu 4JJ3-TCX
Isuzu 4JJ3-TCX
Isuzu 4JJ3-TCX
Description
3-litre turbo-diesel, in-line 4-cylinder, DOHC,  16-valve with Diesel Particulate Diffuser (DPD)
3-litre turbo-diesel, in-line 4-cylinder, DOHC,  16-valve with Diesel Particulate Diffuser (DPD)
3-litre turbo-diesel, in-line 4-cylinder, DOHC,  16-valve with Diesel Particulate Diffuser (DPD)
3-litre turbo-diesel, in-line 4-cylinder, DOHC,  16-valve with Diesel Particulate Diffuser (DPD)
Maximum power
140 kW @ 3600 rpm
450 Nm @ 1600 —> 2600 rpm
140 kW @ 3600 rpm
140 kW @ 3600 rpm
Maximum torque
450 Nm @ 1600 —> 2600 rpm
140 kW @ 3600 rpm
450 Nm @ 1600—> 2600 rpm
450 Nm @ 1600 —> 2600 rpm
Bore x stroke
95.4mm  x  104.9mm
95.4mm  x  104.9mm
95.4mm  x  104.9mm
95.4mm  x  104.9mm
Displacement
2999cc
2999cc
2999cc
2999cc
Compression ratio
16.3 : 1
16.3 : 1
16.3 : 1
16.3 : 1
Cylinder head
Isuzu-patent special aluminium alloy
Isuzu-patent special aluminium alloy
Isuzu-patent special aluminium alloy
Isuzu-patent special aluminium alloy
Valve gear
Chain-driven dual overhead camshafts, roller rockers, 4 valves/cylinder
Chain-driven dual overhead camshafts, roller rockers, 4 valves/cylinder
Chain-driven dual overhead camshafts, roller rockers, 4 valves/cylinder
Isuzu-patent special aluminium alloy
Induction
Electronic high pressure common rail direct fuel injection with VSS (Variable Swirl System) and intercooled electric control VGS (Variable Geometry System) turbocharger
Electronic high pressure common rail direct fuel injection with VSS (Variable Swirl System) and intercooled electric control VGS (Variable Geometry System) turbocharger
Electronic high pressure common rail direct fuel injection with VSS (Variable Swirl System) and intercooled electric control VGS (Variable Geometry System) turbocharger
Electronic high pressure common rail direct fuel injection with VSS (Variable Swirl System) and intercooled electric control VGS (Variable Geometry System) turbocharger
Cylinder block
Cast iron upper with induction-hardened cylinder bores, cast alloy lower
Cast iron upper with induction-hardened cylinder bores, cast alloy lower
Cast iron upper with induction-hardened cylinder bores, cast alloy lower
Cast iron upper with induction-hardened cylinder bores, cast alloy lower
Emission level
Euro 5
Euro 5
Euro 5
Euro 5
Alternator
90 amp with Intelligent Battery Sensor (IBS)
90 amp with Intelligent Battery Sensor (IBS)
90 amp with Intelligent Battery Sensor (IBS)
90 amp with Intelligent Battery Sensor (IBS)

Transmission

Automatic
Aisin AWR6B45 II 6-speed with sequential shift and brake shift lock electronically controlled, tri-mode  with fuel-saving lock-up torque converter on gears 3, 4, 5 and 6
Aisin AWR6B45 II 6-speed with sequential shift and brake shift lock electronically controlled, tri-mode  with fuel-saving lock-up torque converter on gears 3, 4, 5 and 6
Aisin AWR6B45 II 6-speed with sequential shift and brake shift lock electronically controlled, tri-mode  with fuel-saving lock-up torque converter on gears 3, 4, 5 and 6
Aisin AWR6B45 II 6-speed with sequential shift and brake shift lock electronically controlled, tri-mode  with fuel-saving lock-up torque converter on gears 3, 4, 5 and 6
Ratios
1st to 6th: 3.600 2.090 1.488 1.000 0.687 0.580

Reverse: 3.732
1st to 6th: 3.600 2.090 1.488 1.000 0.687 0.580
Reverse: 3.732
1st to 6th: 3.600 2.090 1.488 1.000 0.687 0.580
Reverse: 3.732
1st to 6th: 3.600 2.090 1.488 1.000 0.687 0.580
Reverse: 3.732
Final drive
3.727
3.727
3.727
4x4: 3.727
Transfer gearing
4x4 low-range 2.482
4x4 high-range 1.000
4x4 low-range 2.482
4x4 high-range 1.000
4x4 low-range 2.482
4x4 high-range 1.000
4x4 low-range: 2.482
4x4 high-range: 1.000
4x4 system
“Terrain Command” control with ‘shift on the fly’ 2-high<——>4-high selection at up to 100km/h, 4-low with rear differential lock
“Terrain Command” control with ‘shift on the fly’ 2-high <——> 4-high selection at up to 100km/h, 4-low with rear differential lock
“Terrain Command” control with ‘shift on the fly’ 2-high <——> 4-high selection at up to 100km/h, 4-low with rear differential lock
“Terrain Command” control with ‘shift on the fly’ 2-high <——> 4-high selection at up to 100km/h, 4-low with rear differential lock
Drivetrain system
TCS (Traction Control System)
TCS (Traction Control System)
TCS (Traction Control System)
TCS (Traction Control System)

Steering

Steering
Electric power steering with speed-sensing  steering feel (light at low speed, heavy at high speed); tilt and telescopic adjustable steering wheel
Electric power steering with speed-sensing  steering feel (light at low speed, heavy at high speed); tilt and telescopic adjustable steering wheel
Electric power steering with speed-sensing  steering feel (light at low speed, heavy at high speed); tilt and telescopic adjustable steering wheel
Electric power steering with speed-sensing  steering feel (light at low speed, heavy at high speed); tilt and telescopic adjustable steering wheel
Steering assistance and ratio
Engine-speed-sensitive variable capacity Electric power system; 3.84 turns lock-to-lock via tilt adjustable steering wheel
Engine-speed-sensitive variable capacity Electric power system; 3.84 turns lock-to-lock via tilt adjustable steering wheel
Engine-speed-sensitive variable capacity Electric power system; 3.84 turns lock-to-lock via tilt adjustable steering wheel
Engine-speed-sensitive variable capacity Electric power system; 3.84 turns lock-to-lock via tilt adjustable steering wheel

Chassis

Chassis type
Separate, full-length heavy-duty chassis with 8 cross members on all models
Separate, full-length heavy-duty chassis with 8 cross members on all models
Separate, full-length heavy-duty chassis with 8 cross members on all models
Separate, full-length heavy-duty chassis with 8 cross members on all models
Front suspension
Independent, high-ride, coil springs, gas shock absorbers, upper and lower wishbones, stabiliser bar
Independent, high-ride, coil springs, gas shock absorbers, upper and lower wishbones, stabiliser bar
Separate, full-length heavy-duty chassis with 8 cross members on all models
Separate, full-length heavy-duty chassis with 8 cross members on all models
Rear suspension
Heavy Duty  alloy-steel overslung long-span semi-elliptic leaf springs; gas shock absorbers
Alloy-steel overslung long-span semi-elliptic leaf springs; gas shock absorbers
Heavy Duty alloy-steel overslung long-span semi-elliptic leaf springs; gas shock absorbers
Separate, full-length heavy-duty chassis with 8 cross members on all models

Axles

Front
Independent 4x4: fully floating with outer CV, inner double offset joints and equal length driveshafts. Rating: 1450kg
Independent 4x4: fully floating with outer CV, inner double offset joints and equal length driveshafts. Rating: 1450kg
Independent 4x4: fully floating with outer CV, inner double offset joints and equal length driveshafts. Rating: 1450kg
Independent 4x4: fully floating with outer CV, inner double offset joints and equal length driveshafts. Rating: 1450kg
Rear
Rigid semi-floating banjo with hypoid final drive and dual tapered needle roller bearings. Rating: 1910kg
Rigid semi-floating banjo with hypoid final drive and dual tapered needle roller bearings. Rating: 1910kg
Rigid semi-floating banjo with hypoid final drive and dual tapered needle roller bearings. Rating: 1910kg
Rigid semi-floating banjo with hypoid final drive and dual tapered needle roller bearings. Rating: 1910kg

Brakes

Braking system
Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD), Electronic Stability Control (ESC), Emergency Brake Assist (EBA), Traction Control System (TCS), Rollover Mitigation, Hill Start Assist (HSA), Hill Descent Control (HDC) and Trailer Sway Control (TSC)
Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD), Electronic Stability Control (ESC), Emergency Brake Assist (EBA), Traction Control System (TCS), Rollover Mitigation, Hill Start Assist (HSA), Hill Descent Control (HDC) and Trailer Sway Control (TSC)
Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD), Electronic Stability Control (ESC), Emergency Brake Assist (EBA), Traction Control System (TCS), Rollover Mitigation, Hill Start Assist (HSA), Hill Descent Control (HDC) and Trailer Sway Control (TSC)
Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD), Electronic Stability Control (ESC), Emergency Brake Assist (EBA), Traction Control System (TCS), Rollover Mitigation, Hill Start Assist (HSA), Hill Descent Control (HDC) and Trailer Sway Control (TSC)
Brakes specification
320mm dia. ventilated front discs with 2-piston calipers, 295mm rear drums
320mm dia. ventilated front discs with 2-piston calipers, 295mm rear drums
320mm dia. ventilated front discs with 2-piston calipers, 295mm rear drums
320mm dia. ventilated front discs with 2-piston calipers, 295mm rear drums
Brake assistance & parking brake
Power-assisted via 10” servo unit; central pull up park brake
Power-assisted via 10” servo unit; central pull up park brake
Power-assisted via 10” servo unit; central pull up park brake
Power-assisted via 10” servo unit; central pull up park brake

Wheels and Tyres

Wheel and tyre type
17” x 7” drilled Silver-Finish Steel;  255 / 65 R17 All-Terrain
17” x 7” drilled Silver-Finish Steel;  255 / 65 R17 All-Terrain
17” x 7” drilled Silver-Finish Steel;  255 / 65 R17 All-Terrain
17” x 7” drilled Silver-Finish Steel;  255 / 65 R17 All-Terrain
Spare wheel type
Full size steel spare wheel
Full size steel spare wheel
Full size steel spare wheel
Full size steel spare wheel

Safety and Security

4-channel 4-sensor Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD)
Yes
Yes
Yes
Yes
Electronic Stability Control (ESC)
Yes
Yes
Yes
Yes
Traction Control System (TCS)
Yes
Yes
Yes
Yes
Emergency Brake Assist (EBA)
Yes
Yes
Yes
Yes
Hill Start Assist (HSA)
Yes
Yes
Yes
Yes
Hill Descent Control (HDC)
Yes
Yes
Yes
Yes
Reversing camera
Yes
Yes
Yes
Yes
Rear parking sensors
-
-
-
-
Front parking sensors
-
-
-
-
8 Airbags: dual front, curtain, side, driver's knee and far side airbags
Yes
Yes
Yes
Yes
Passenger side SRS airbag on/off switch
Yes
Yes
Yes
Yes
Height-adjustable upper mounts for front seat belts
Yes
Yes
Yes
Yes
Pre-tensioners with load limiters for front seat belts
Yes
Yes
Yes
Yes
Pre-tensioners with load limiters for outer rear seat belts
-
Yes
-
Yes
3-point retractable seat belts for all rear and centre seating positions
-
Yes
-
Yes
Intelligent seatbelt reminder (all seats)
Yes
Yes
Yes
Yes
2 childseat tethers and ISO FIX compatible anchor points
-
Yes
-
Yes
Height-adjustable head restraints for full-size seats
-
Yes
-
Yes
Integrated head restraint on front seats
Yes
-
Yes
-
Child-proof rear door locks
-
Yes
-
Yes
Single 10 inch servo brake master cylinder
Yes
Yes
Yes
Yes
Side anti-intrusion bars inside all doors
Yes
Yes
Yes
Yes
Engine immobilizer
Yes
Yes
Yes
Yes
Rear window demister
-
Yes
Yes
Yes
High Density Polyethylene (HDPE) fuel tank
Yes
Yes
Yes
Yes
High mount brake light on cabin
Yes
Yes
Yes
Yes
Dual horn
Yes
Yes
Yes
Yes

Isuzu Active Safety Technology

Autonomous Emergency Braking (AEB)
Yes
Yes
Yes
Yes
Turn Assist with AEB
Yes
Yes
Yes
Yes
Post-Collision Braking
Yes
Yes
Yes
Yes
Forward Collision Warning (FCW)
Yes
Yes
Yes
Yes
Misacceleration Mitigation
Yes
Yes
Yes
Yes
Adaptive Cruise Control (ACC)
Yes
Yes
Yes
Yes
Traffic Sign Recognition (TSR)
Yes
Yes
Yes
Yes
Intelligent Speed Limiter
Yes
Yes
Yes
Yes
Manual Speed Limiter
Yes
Yes
Yes
Yes
Lane Departure Warning (LDW)
Yes
Yes
Yes
Yes
Lane Departure Prevention (LDP)
Yes
Yes
Yes
Yes
Lane Keep Assist (LKA)
Yes
Yes
Yes
Yes
Emergency Lane Keeping (ELK)
Yes
Yes
Yes
Yes
Driver Attention Assist (DAA)
Yes
Yes
Yes
Yes
Blind-Spot Monitoring (BSM)
Yes
Yes
Yes
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Yes
Yes
Yes

Protection

Under-front steel skid plate
Yes
Yes
Yes
Yes
Steel plate guards: sump, transfer case, fuel tank edge; reinforced resin under fuel tank
Yes
-
Yes
Yes

Suspension and Brakes

Standard rear leaf suspension
-
Yes
-
Yes
Heavy duty rear leaf suspension
Yes
-
Yes
-
Front independent, coil spring suspension with gas shock absorbers, upper and lower wishbones and stabiliser bar
Yes
Yes
Yes
Yes
Heavy-duty brakes; 320mm ventilated front discs with twin-pot calipers, 295mm rear drums
Yes
Yes
Yes
Yes

In-Cabin Storage

Lower glovebox compartment only
Yes
Yes
Yes
-
Upper and lower glovebox compartments
-
-
-
Yes
Power outlet in lower instrument panel
Yes
Yes
Yes
Yes
Centre floor console
Yes
Yes
Yes
Yes
Dual-purpose driver and front passenger cup holder tray
Yes
Yes
Yes
Yes
Rear passenger door cup holders
-
Yes
-
Yes
Pockets on backs of front seats
-
-
-
-
Overhead console with twin map lights and flip-down sunglasses case
Yes
Yes
Yes
Yes
Front door storage compartment with bottle bulge
Yes
Yes
Yes
Yes
2 coat hooks
-
Yes
-
Yes
Flip up convenience hook behind passenger front seat
-
-
-
-
Tool storage behind rear seats
-
Yes
-
Yes
Tool storage behind front seats
Yes
-
Yes
-

Rear Tub

Double-walled ute tub
-
Yes
-
Yes
4 cargo tie-down hooks inside ute tub
-
Yes
-
Yes
Under rail tub liner
-
-
-
-
2 cargo tie-down hooks inside ute tub
-
-
-
-
Tailgate assist
-
-
-
-

Exterior Style

Short front overhang for optimal maneuverability and approach angle
Yes
Yes
Yes
Yes
Halogen multi-reflector projector lens headlights for extra low beam depth and reduced glare
Yes
Yes
Yes
Yes
Bi-LED headlights with auto-levelling function
-
-
-
-
Automatic headlights
Yes
Yes
Yes
Yes
Automatic high beam
Yes
Yes
Yes
Yes
Coming home light
Yes
Yes
Yes
Yes
Welcome light
-
-
-
-
LED Daytime Running Lights (DRLs)
-
-
-
-
LED fog lights
-
-
-
-
Black radiator grille
Yes
Yes
Yes
Yes
Black-Grey radiator grille
-
-
-
-
Chrome radiator grille
-
-
-
-
Dark grey radiator grille
-
-
-
-
Colour-coded front bumper
Yes
Yes
Yes
Yes
Colour-coded integrated rear step bumper
-
Yes
-
Yes
Black rear bumper
Yes
-
Yes
-
Space cab rear 'wing' doors
-
-
Yes
-
Aluminium side steps
-
-
-
-
Dark grey side steps
-
-
-
-
Black door and tailgate handles
Yes
Yes
Yes
Yes
Colour-coded door and tailgate handles
-
-
-
-
Chrome door and tailgate handles
-
-
-
-
Dark grey door and tailgate handles
-
-
-
-
Lockable tailgate
-
Yes
-
Yes
Black power door mirrors
Yes
Yes
Yes
Yes
Colour-coded power door mirrors with integrated turn indicators
-
-
-
-
Chrome fold-in power door mirrors with integrated turn indicators
-
-
-
-
Dark grey fold-in power door mirrors with integrated turn indicators
-
-
-
-
Heated door mirrors
-
-
-
-
Centre front roof-mounted bee-sting aerial
Yes
Yes
Yes
Yes
LED rear combination lamps
-
-
-
-

Seating

Standard Black cloth seats
Yes
Yes
Yes
Yes
High Grade cloth seats
-
-
-
-
Leather Accented seats with Red Stitching
-
-
-
-
Front bucket whiplash protection seats
Yes
-
Yes
Yes
6-way adjustable driver seat
Yes
Yes
Yes
Yes
8-way electric adjustable driver seat
-
-
-
-
Electric adjustable lumbar support (driver seat only)
-
-
-
-
Heated front seats
-
-
-
-
Split fold rear seat
-
Yes
-
Yes
Split fold rear seat with centre armrest
-
-
-
-
Rear centre seat headrest
-
Yes
-
Yes

Cabin Amenities

Dual zone climate control air-conditioning with integrated heater/demister
-
-
-
-
Manual air-conditioning with integrated heater/demister
Yes
Yes
Yes
Yes
Rear seat air-conditioning vents
-
Yes
-
Yes
Pollen and fine particle air filter
Yes
Yes
Yes
Yes
Power windows with one-touch up/down driver's window with safety stop and delay closing
Yes
Yes
Yes
Yes
Comfort turn signal
Yes
Yes
Yes
Yes
Central locking with keyless entry
Yes
Yes
Yes
Yes
Smart keyless entry
-
-
-
-
Walk away lock
-
-
-
-
Push button start
-
-
-
-
Remote engine start
-
-
-
-
Power-adjustable door mirrors with turn indicator light
-
-
-
-
Power-adjustable door mirrors
Yes
Yes
Yes
Yes
4 speaker sound system
Yes
Yes
Yes
Yes
6 speaker sound system
-
-
-
-
'Sky Sound' roof-mounted sound system with 8 speakers (mounted in front dash, front doors, rear doors and roof)
-
-
-
-
9 inch touchscreen display with wireless Apple CarPlay® and Android Auto™
-
-
-
-
8 inch touchscreen display with wireless Apple CarPlay® and Android Auto™
Yes
Yes
Yes
Yes
Built-in satellite navigation with MID turn-by-turn directions
-
-
-
-
Rear centre console USB-C charging port
-
Yes
-
Yes
Tilt and telescopic adjustable steering wheel with electric power steering
Yes
Yes
Yes
Yes
Urethane steering wheel with cruise, audio and voice recognition controls
Yes
Yes
Yes
Yes
Leather steering wheel with cruise, audio and voice recognition controls
-
-
-
-
4.2" smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder
Yes
Yes
Yes
Yes
7" smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder
-
-
-
-
Electro-luminescent gauges
Yes
Yes
Yes
Yes
'Terrain Command' 4x4 select dial
Yes
-
Yes
Yes
Rear differential lock button
Yes
-
Yes
Yes
Automatic windshield wipers
Yes
Yes
Yes
Yes
Intuitive flat wiper blade
-
-
-
-
Day/night interior rear view mirror
Yes
Yes
Yes
Yes
Auto-dimming rear view mirror
-
-
-
-
Sun visors with vanity mirrors (driver and passenger) and ticket retaining strap (driver)
Yes
-
-
-
Sun visors with illuminated vanity mirrors (driver and passenger) and ticket retaining strap (driver)
-
-
-
-
Fixed A-pillar assist-grips for driver and front passenger
Yes
Yes
Yes
Yes
Fixed B-pillar assist-grips for rear passengers
-
Yes
-
Yes
Folding assist-grips for driver and front passenger
-
Yes
-
Yes
Folding assist-grips for rear passengers
-
Yes
-
Yes
Carpet flooring
-
-
-
-
Easy-clean vinyl flooring
Yes
Yes
Yes
Yes

D-MAX Fuel Economy and Emissions (WLTP3)*

Combined (litres per 100km)
9.2
8.8
9.2
9.2
CO2 (g/km)
238
230
238
238

Warranty and Roadside Assistance

Warranty & Roadside Assistance
3 years or 100,000 km (whichever comes first)
3 years or 100,000 km (whichever comes first)
3 years or 100,000 km (whichever comes first)
3 years or 100,000 km (whichever comes first)

Dimensions (mm unless stated otherwise)

Wheelbase
3,125
3,125
3,125
3,125
Overall length
5,325
5,265
5,285
5,270
Overall width (excluding door mirrors)
1,870
1,870
1,870
1,870
Overall height (*depends on body fitted)
1,790
1,785
1,800
1,785
Front overhang
890
890
890
890
Rear overhang (*depends on body fitted)
1,310
1,250
1,270
1,250
Wheel track width
1,570
1,570
1,570
1,570
Ground clearance
235
235
235
235
Turning circle diameter between kerbs (metres)
12.5
12.5
12.5
12.5
Approach angle
29.6°
30°
30°
30°
Departure angle
28.9°
23.9°
27°
23.9°
Ramp-over angle
23.9°
23.3°
23.9°
23.3°

Load area (mm)

Cab to rear axle
1,240
450
765
450
Length (top)
-
1,495
-
1,495
Length (floor) (*inside genuine accessory tray body)
2,550
1,570
2,100
1,570
Maximum width (*inside genuine accessory alloy tray body)
1,777
1,530
1,777
1,530
Width between wheel houses
-
1,122
-
1,122
Depth
-
490
-
490

Interior (mm)

Leg room - front
1,075
1,075
1,075
1075
Leg room - rear
-
905
-
905
Shoulder room - front
1,460
1,460
1,460
1,460
Head room - front
1,020
1,020
1,020
1,020

Mass (kg)

Gross Vehicle Mass (GVM)
3,100
3,000
3,100
3,100
Kerb weight^
1,790
1,950
1,855
2,035
Payload - (cab chassis models; final mass depends on body fitted)
1,310
1,050
1,245
1,065
Gross Combination Mass (GCM)
6,000
5,850
6,000
6,000
Maximum towing mass (braked trailer)
3,500
3,500
3,500
3,500
Maximum towing mass (non-braked trailer)
750
750
750
750
Maximum tow ball download (when fitted with genuine Isuzu UTE tow kit)
350
350
350
350
Fuel tank capacity (litres)
76
76
76
76
