2024

D-MAX X-Terrain

Available now from $67,990

D-Max x-terrain | From $67,990

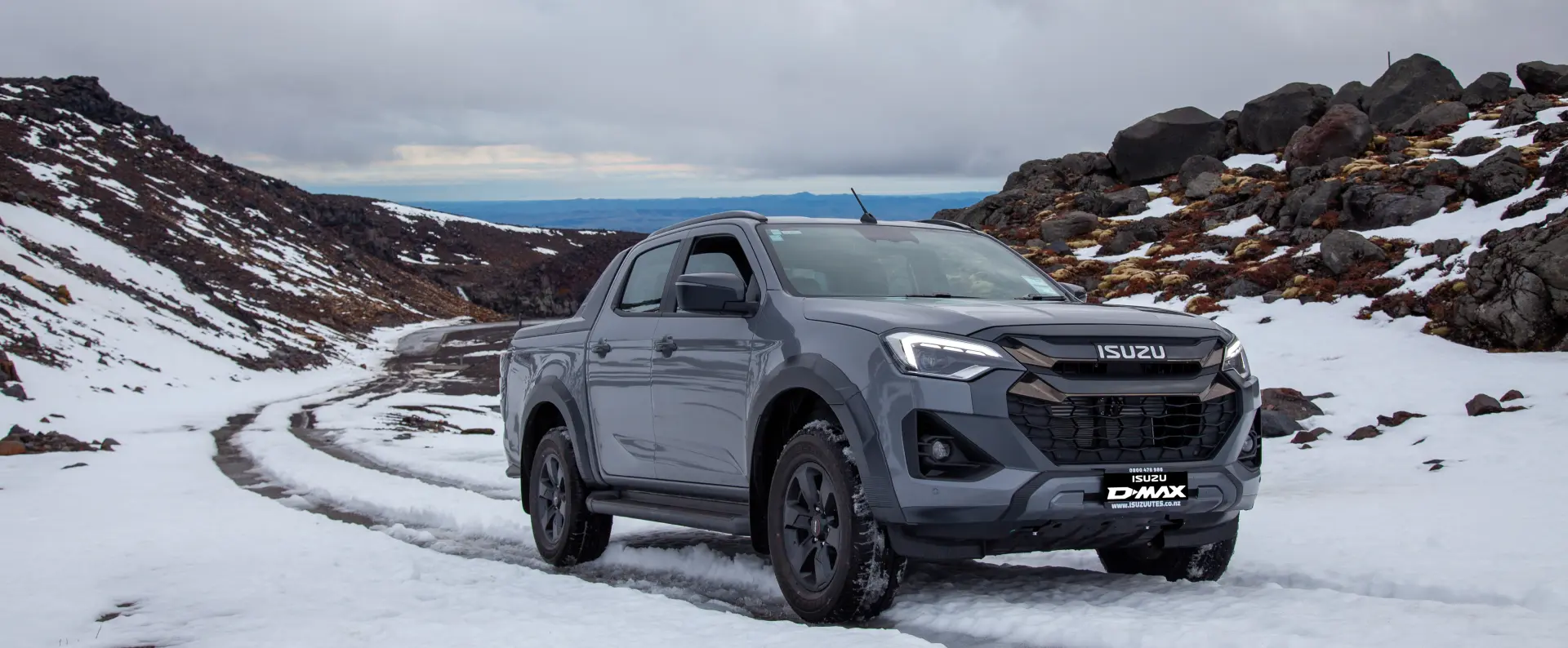

Meet the new 2024 Isuzu D-MAX X-Terrain ute, the top dog of the range. The X-Terrain exterior comes decked out with side steps, a sports blade and a greyéd out body kit, because why not? And don't worry, it still comes with Isuzu's legendary 3-litre turbo diesel engine, loved by Good Bastards across New Zealand for its durability and grit.

She's more than just a pretty face, though. The X-Terrain comes with all the extra bells and whistles you could want: Adaptive Cruise Control, tailgate assist and a 9-inch touchscreen with satellite navigation. And to make sure you get home safe, the X-Terrain has a 5-star ANCAP safety rating, with the help of Isuzu's Intelligent Driver Assistance System (IDAS*).

The D-MAX X-Terrain, it's not just a ute, it's a damn good mate

X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic
X-Terrain Double Cab 3.0 4x4 Automatic

Splash White

Dolomite White Pearl

Mercury Silver Metallic

Islay Grey Mica

Obsidian Grey Mica

Onyx Black Mica

Namibu Orange Mica

Spinel Red Mica

Biarritz Blue Metallic

The EXTERIOR

2024 X-Terrain is the top of the range D-MAX and it has the extra bells and whistles to prove it. A revised colour range, dark 18" alloy wheels and a gun-metal exterior trim is exclusive to the X-Terrain, ensuring that your D-MAX will stand out on the road.

LED HEADLIGHTS WITH DRL

The X-Terrain is equipped with powerful and durable LED headlights for excellent visibility under all conditions. These are combined with LED Daytime Running Lights (DRL) for added safety whilst out on the open road.

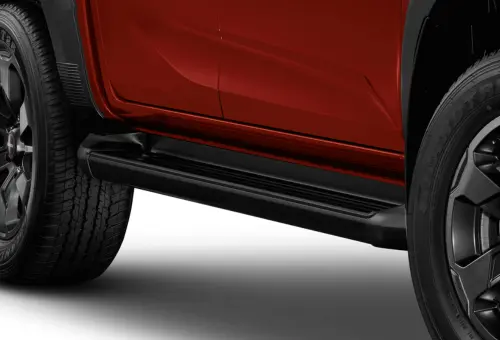

ELECTRIC WINDOWS & MIRRORS

 Electric windows are standard on the D-MAX, easy as that. As an added luxury, the exterior mirrors are also electrically adjustable from the cabin.

blacked out 18" alloys

The X-Terrain is fitted with striking black 18" alloys, ensuring that your D-MAX turns heads wherever you stop. These are combined with Highway-Terrain (HT) tyres for solid road holding in all situations

redesigned Black Grille

Strong, bold and distinctive, the new X-Terrain's, matte black double grill features the Isuzu logo loud and proud.

The Interior

Isuzu is all about inclusion of features that are intuitive to use, easy to reach and have driver convenience in mind, always. The 2024 D-MAX is no different, thoughtfully designed to make the driver, and passengers life easier. It was also developed with Isuzu's "Hexa-Pod" concept in mind, a design philosophy that embodies being functional, relaxing and attractive. That doesn't sound too bad eh?

Design

When designing the interior of the all-new D-MAX the engineers were given a directive to use an airplane cockpit as inspiration. This means that control ergonomics, occupant comfort, material quality & durability, and driver visibility are key priorities. The team at Isuzu Utes nailed the brief, once you jump in the 2024 D-Max you will never want to leave.

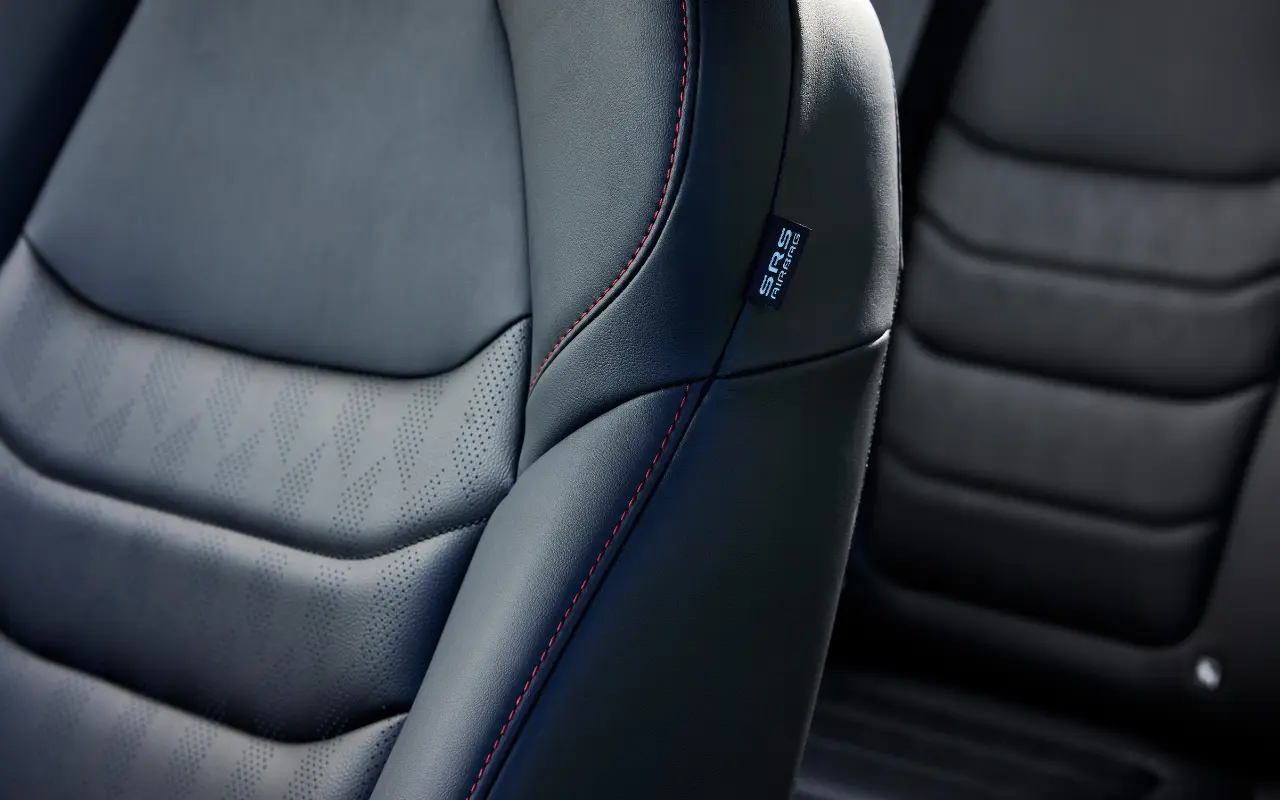

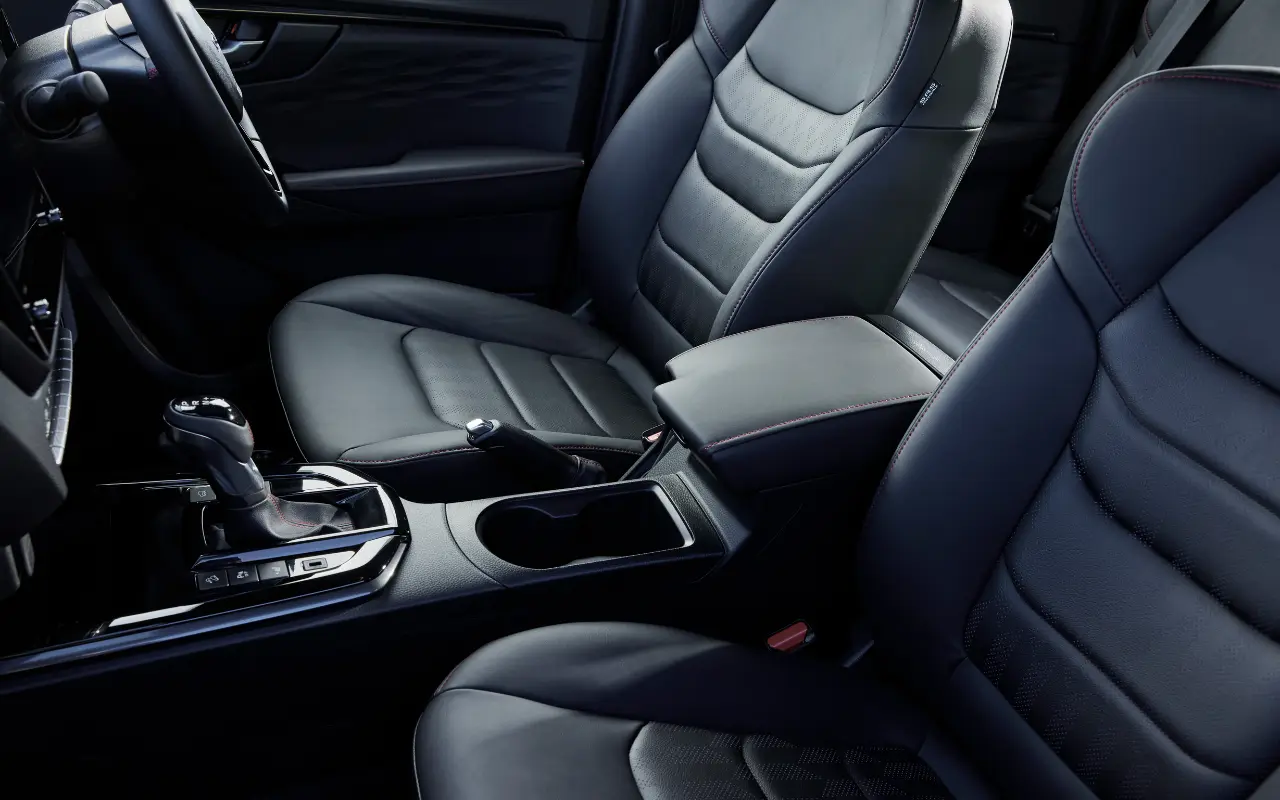

Comfort

Sculpted sports seats featuring a foldable rear centre armrest. Wide front seat rails provide for large boots/feet to easily slip under the front seat for rear passengers. Entry and exit have been made easier thanks to large door openings. Double sealed doors and an excess of soundproofing make the D-MAX a peaceful and relaxing ride.

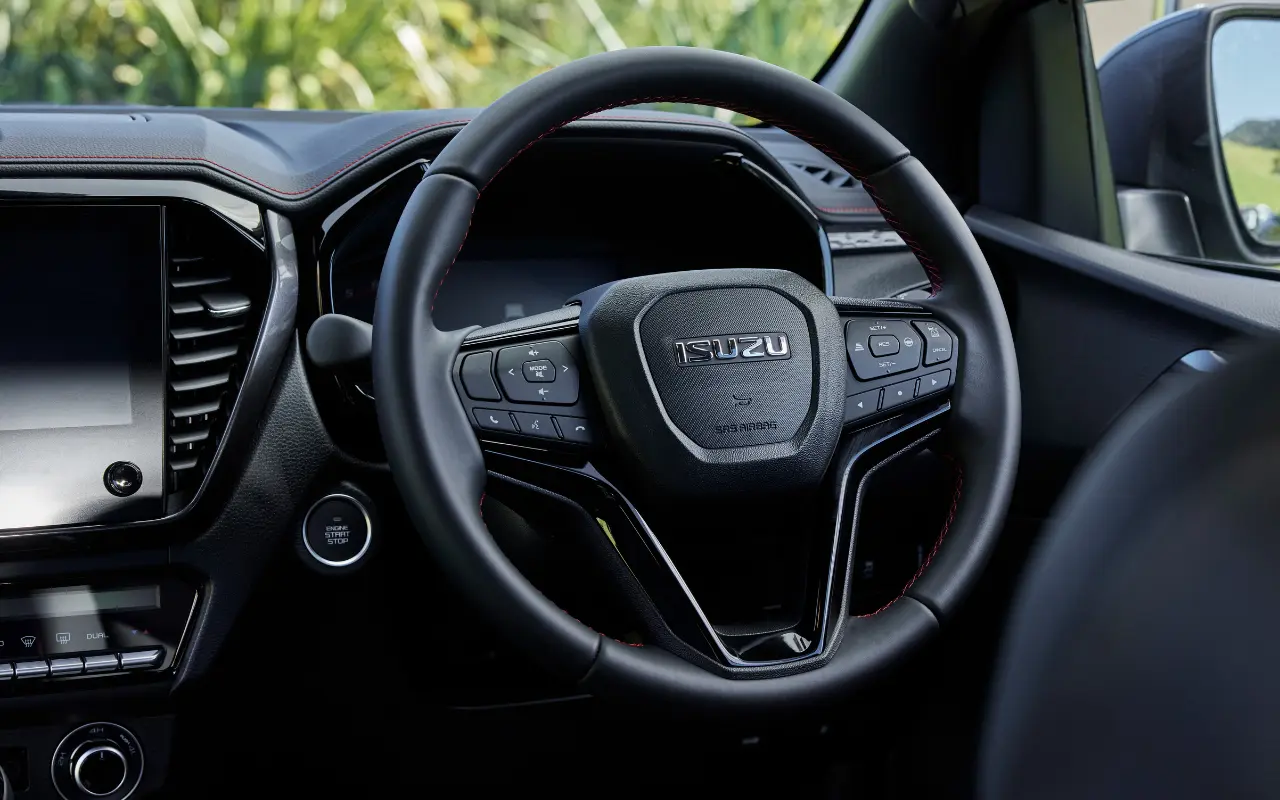

Multi-function steering wheel

The comfortable leather-bound steering wheel puts Bluetooth, audio and cruise controls at your fingertips so you can concentrate on the road ahead.

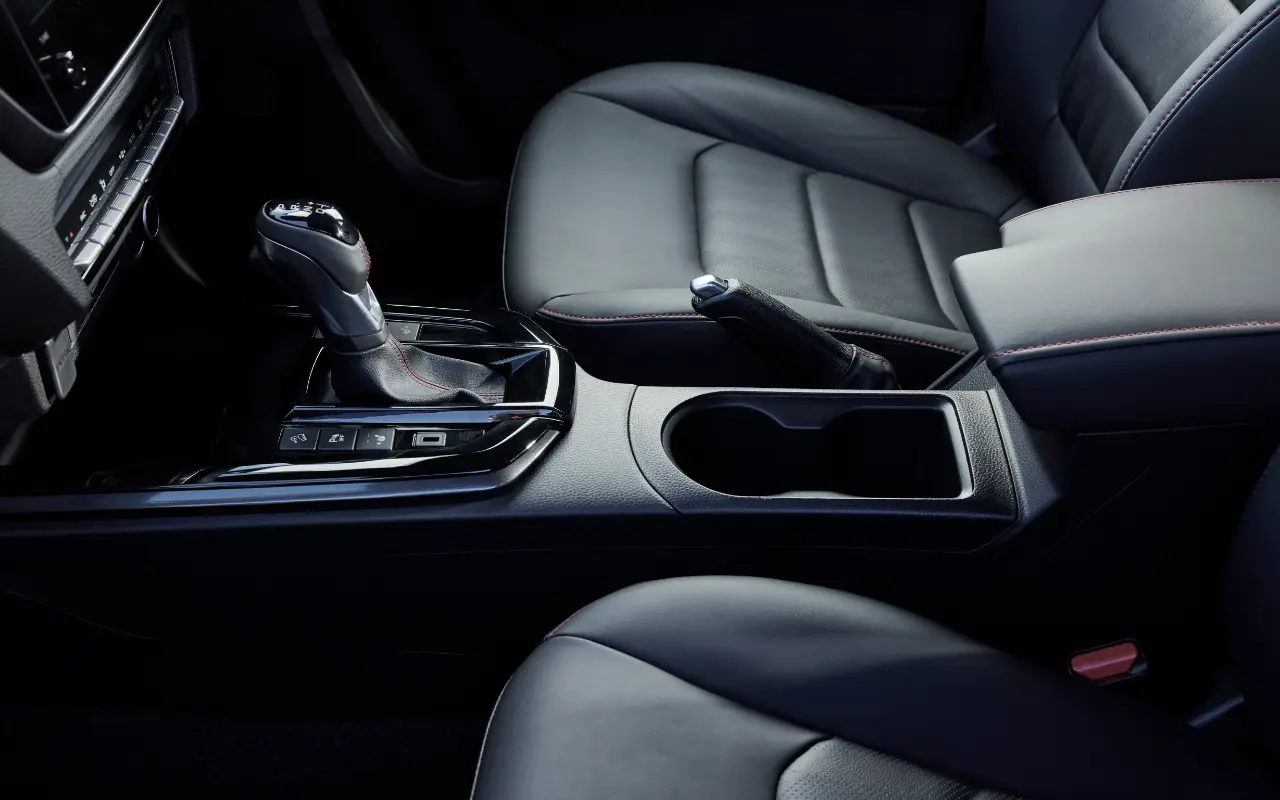

Internal storage

With 10 different positions for cups or bottles, the upper front console provides storage for tissues and has a 12v 120-watt power socket for added convenience. The upper center console storage, under steering wheel storage, deep door pockets, and seatback pockets provide storage solutions for those easily misplaced but much-needed items.

Rear seat split fold

The rear seats of the X-Terrain feature a unique 60/40 split fold up/down configuration allowing for extra storage space in the rear of the cab.

enhanced Performance

2024 D-MAX incorporates Isuzu's signature 3L turbo-diesel engine as standard. This stems from almost 90 years of experience producing diesel engines, beginning way back in 1936 when developing Japan's first air-cooled automotive diesel engine. Constant technological improvements, innovations and in-depth experience across the production of more than 26 million diesel engines means Isuzu is an established global leader in developing capable and efficient engines for all kinds of applications.

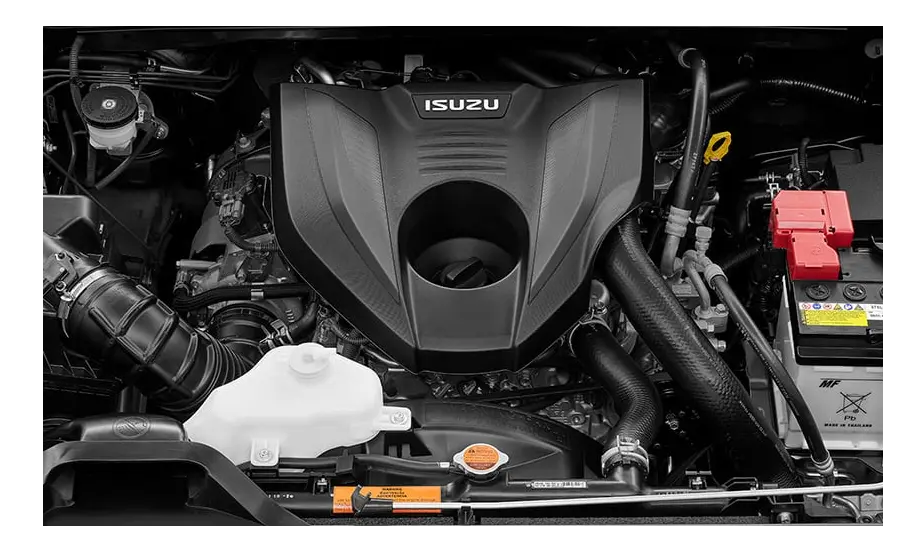

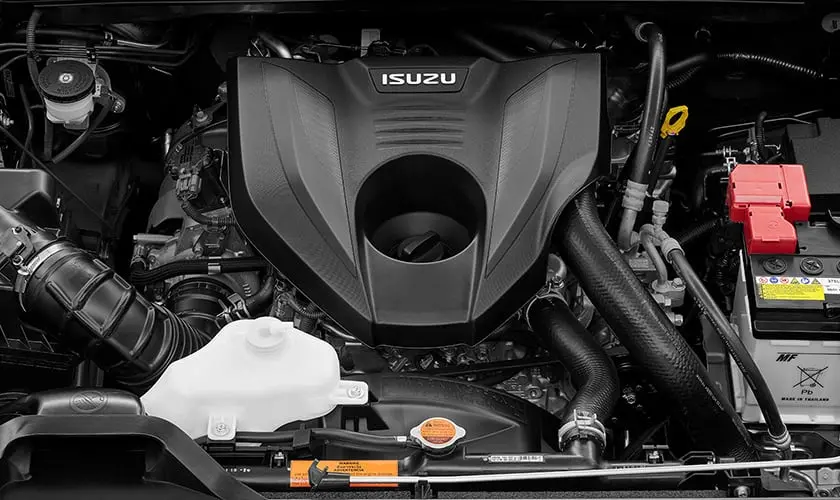

ISUZU 4JJ3 3.0L ENGINE

The dependable 3.0L 4JJ3 turbo-diesel engine is as robust as the day is long. The high-pressure injector system, electronically controlled variable geometry turbocharger and engine internals result in 140 kW of power plus 450 Nm of torque all while maintaining class-leading dependability.

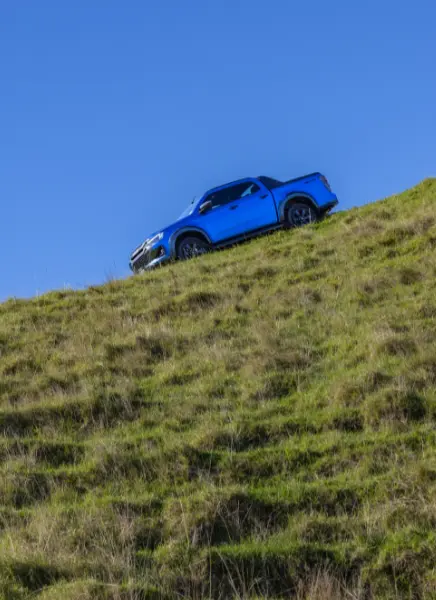

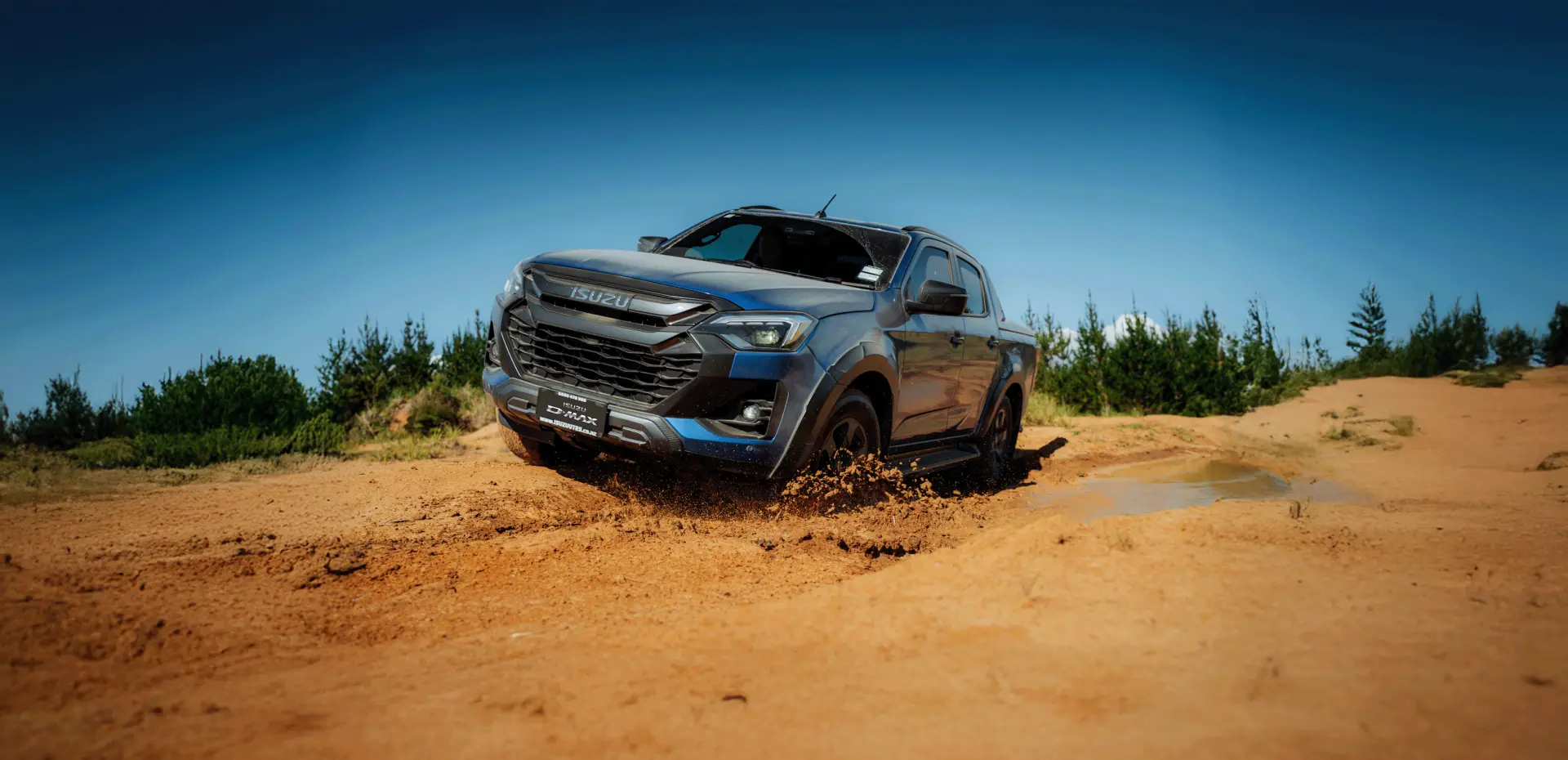

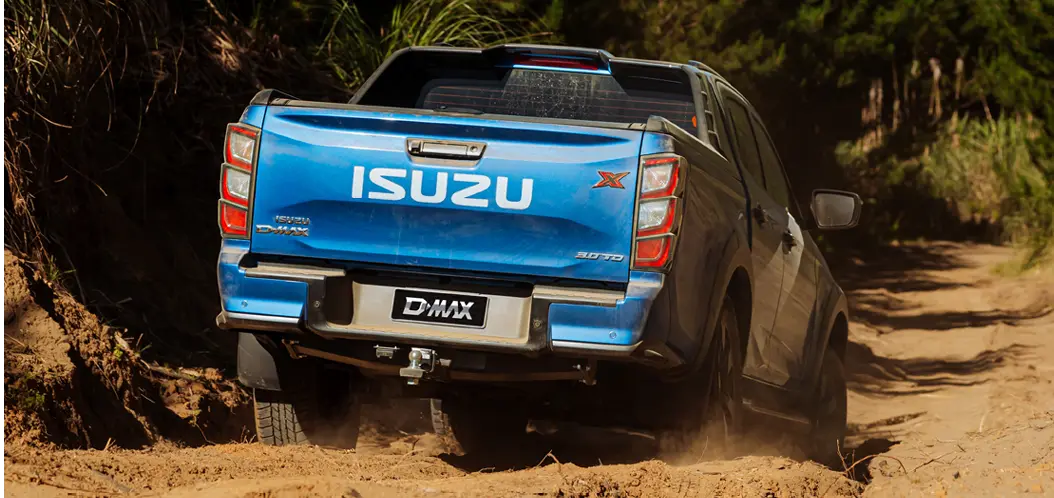

OFF ROAD PERFORMANCE

The D-MAX's legendary go-anywhere ability has been further improved providing you a ute that is as at home up in the backcountry hills as it is out on SH1. Wading depth is 800mm for those extra deep crossings, whilst a rear differential lock is included for improved traction on slippery surfaces. For on-road excursions, there is a range of electronic driving aids to keep you on the straight and narrow.

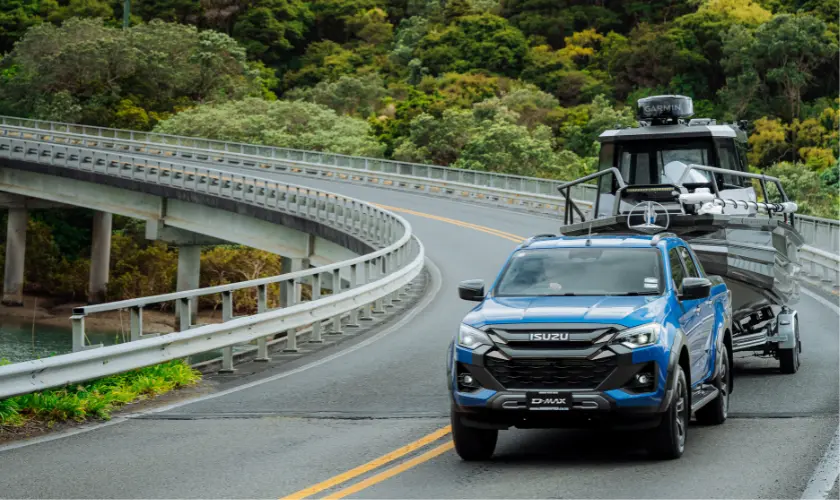

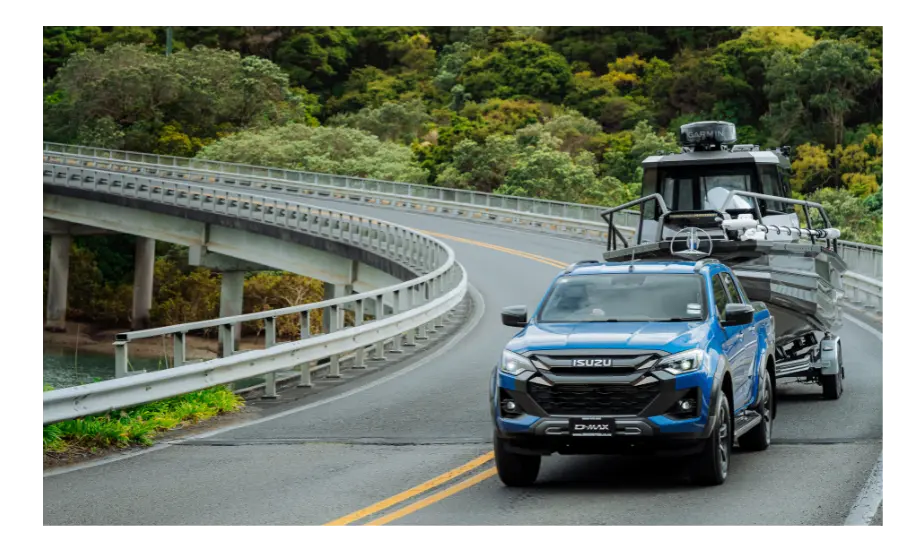

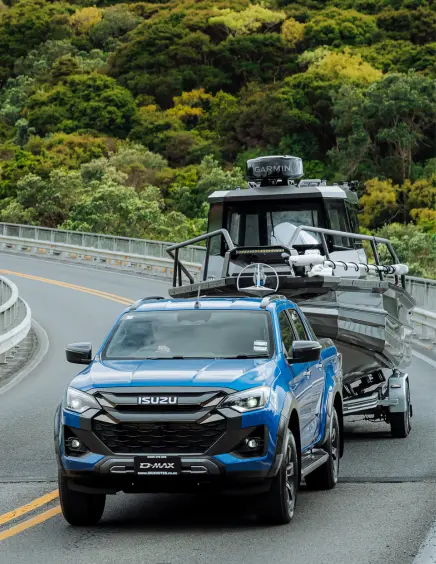

3500KG TOWING ABILITY

Tow up to 3500kg*. Your search for the perfect travelling companion is over. Isuzu’s legendary 3-litre turbo diesel engine delivers high torque across the range, making light work of a caravan, boat, or trailer. Trailer Sway Control (TSC) assists with towing and will assist with towing in high winds or on uneven surfaces.

*3,500kg Braked Towing

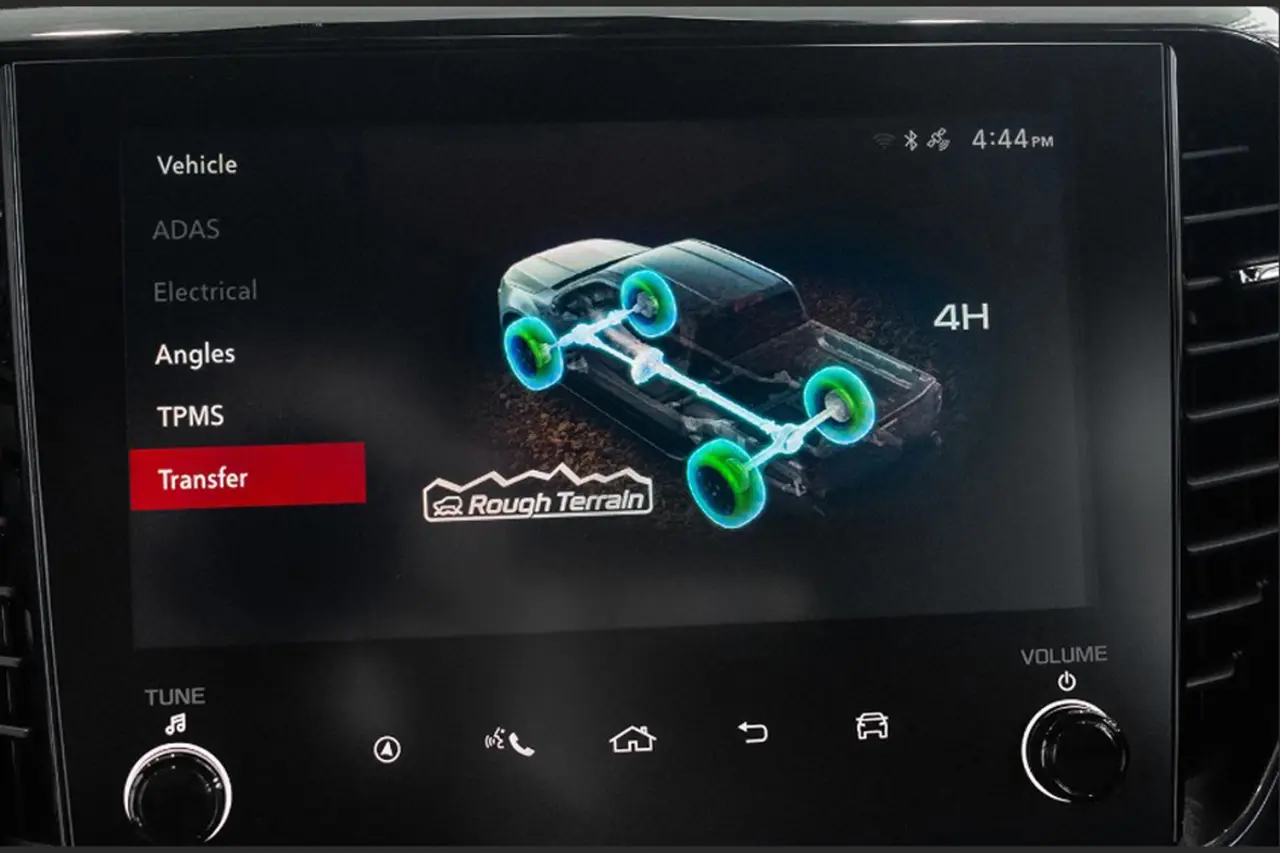

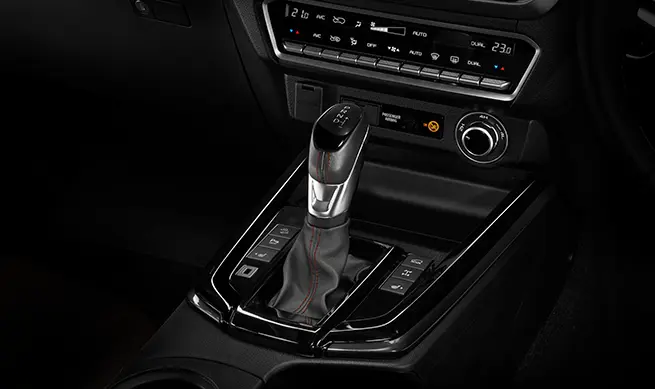

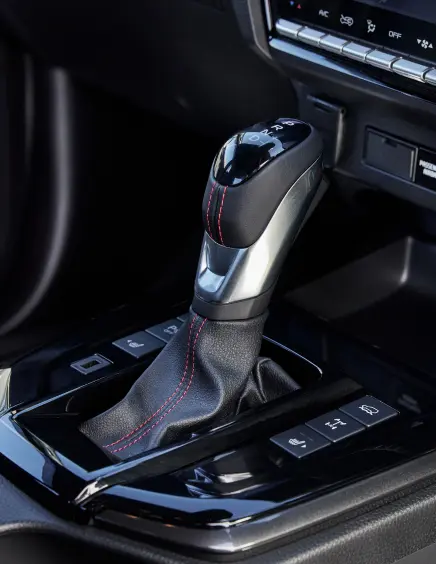

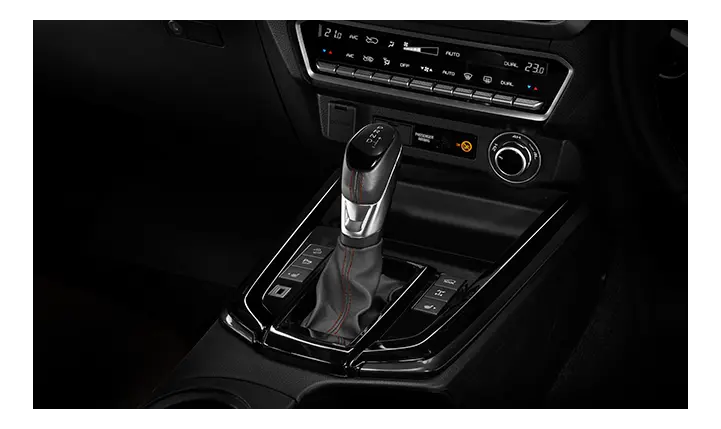

Terrain command

On top of a 6 speed transmission, the Terrain Command dial in the Isuzu D-MAX 4x4 allows you to shift between 2WD and 4WD Hi mode on the move (up to 100km/h) for improved traction when driving conditions change.

LADDER RAIL CHASSIS

The ladder rail chassis of the D-MAX is 8 kg lighter than ever whilst being 20% more rigid. This assists with towing performance and on/off road performance.

HILL DESCENT CONTROL

This feature electronically applies the brakes to ensure a smooth, controlled descent, giving you the confidence to tackle the trickiest downhill terrain.

technology

The all-new D-MAX brings an entire new level of technology to the range. X-Terrain models include a large 9.0" touchscreen with a satellite navigation system. Apple CarPlay & Android Auto phone mirroring capability allows you to project sat nav directions, play music, make and receive calls and more. For the owner that spends plenty of time on the open road, the X-Terrain also includes adaptive cruise control which automatically adjusts your speed depending on the vehicle in front of you.

USB-C CHARGING CAPABILITY

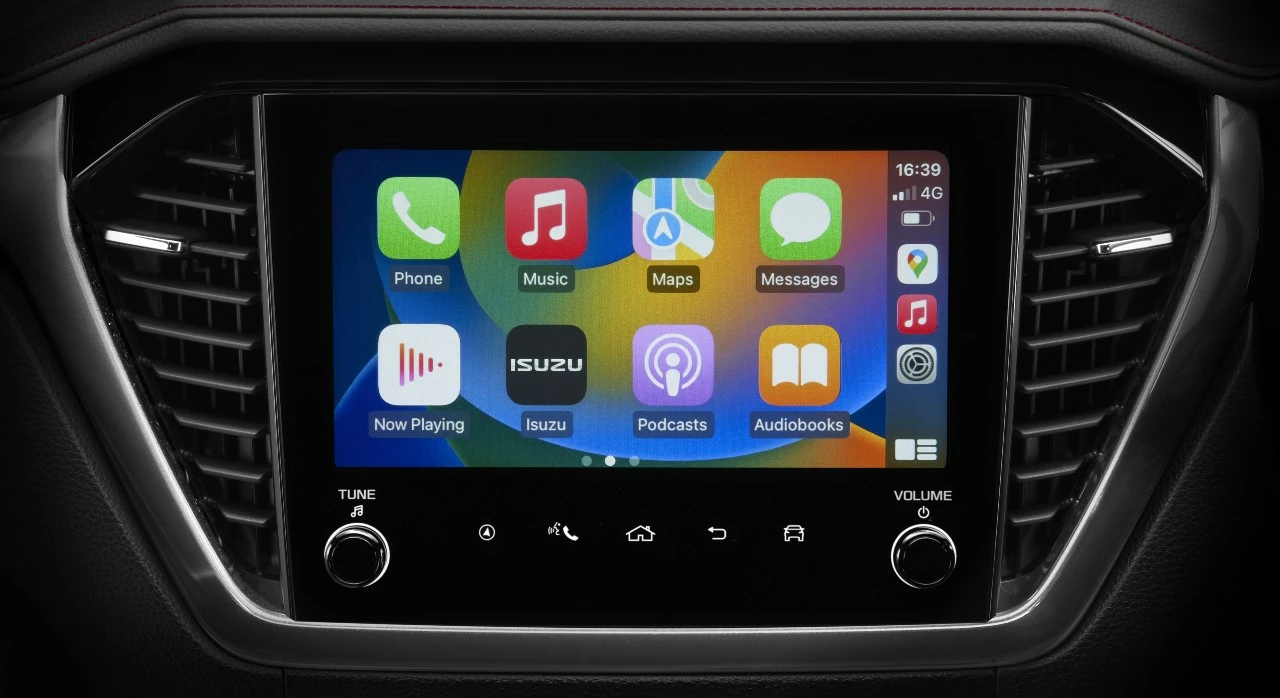

APPLE CARPLAY® & ANDROID AUTO™

7" MULTI INFORMATION DISPLAY (MID)

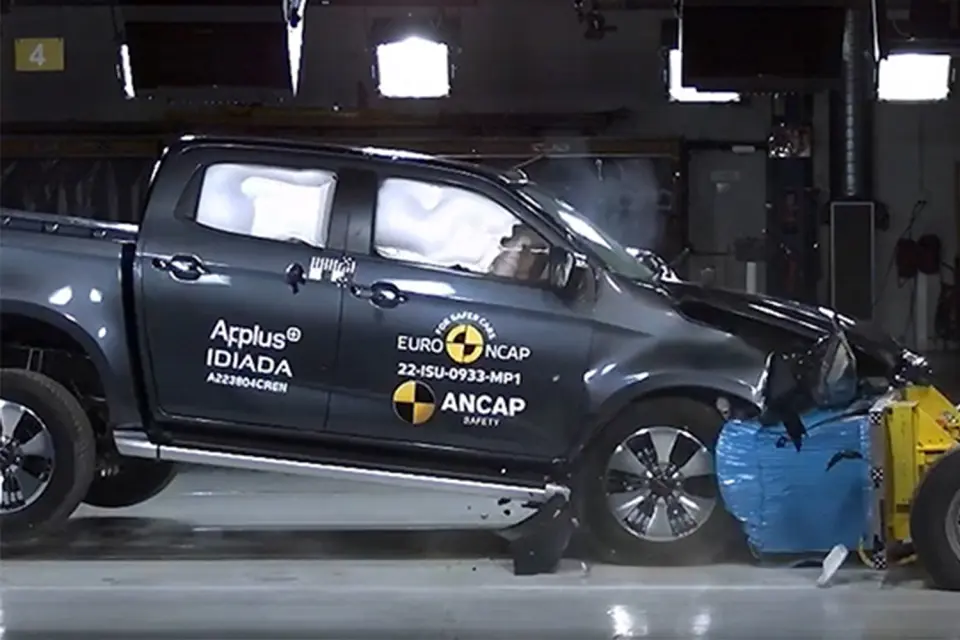

Safety

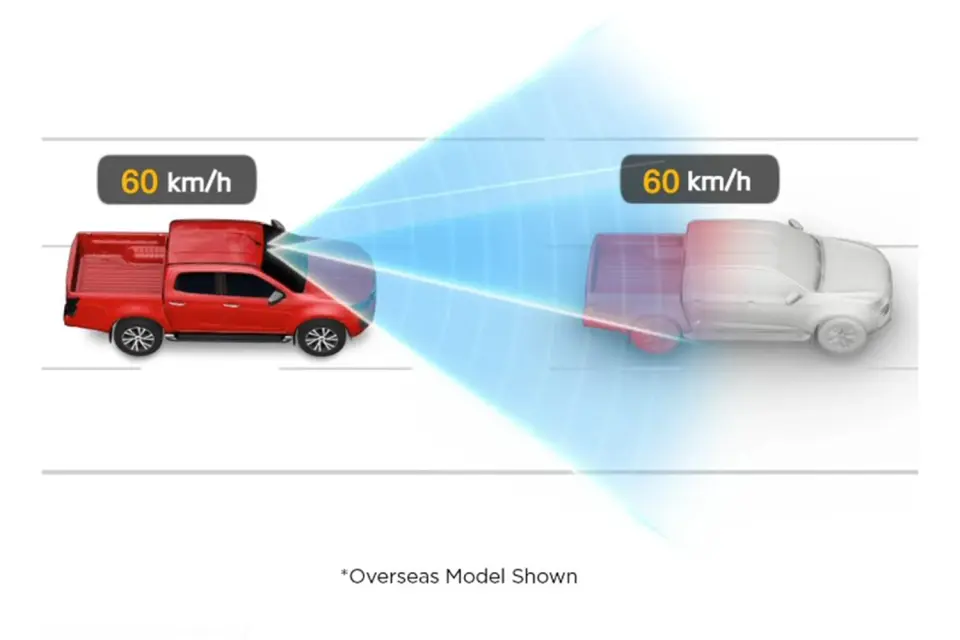

ADAPTIVE CRUISE CONTROL (ACC)

Automatically adjusts your speed based on vehicles around you when cruise-control is activated making open road driving a breeze.

DRIVER ATTENTION ASSIST (DAA)

Your D-MAX recognises traffic signs, displaying information such as speed limits in the Multi-Information Display (MID) for easy reference.

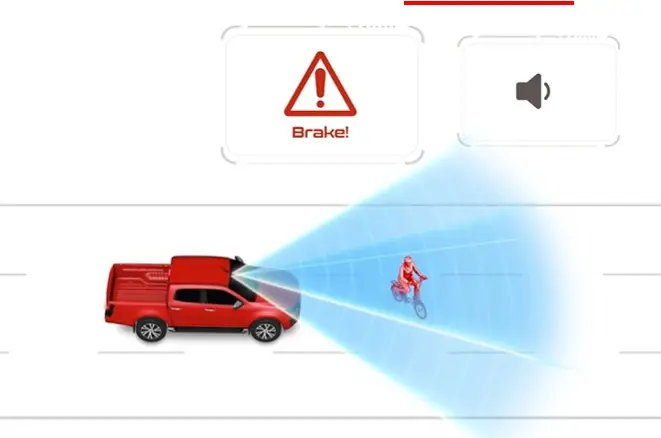

Autonomous Emergency Braking (AEB)

If your D-MAX detects a potential collision, emergency braking is applied automatically. That's clever and safe technology to help keep you and others safe out on the road.

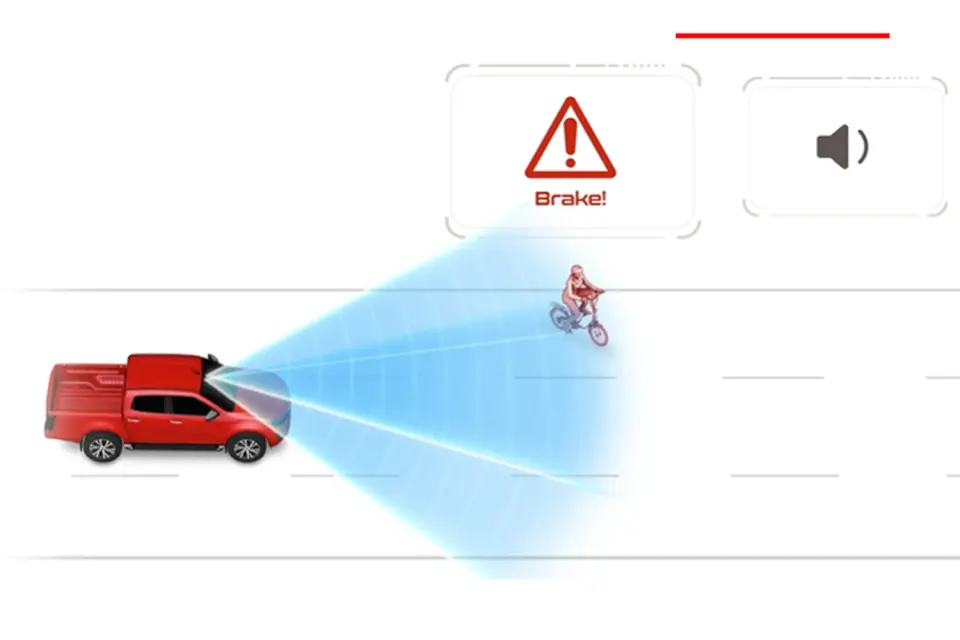

Forward Collision Warning (FCW)

An audible warning sounds and red warning lights flash on the dashboard when an obstacle is detected in your path giving you a chance to avoid a collision.

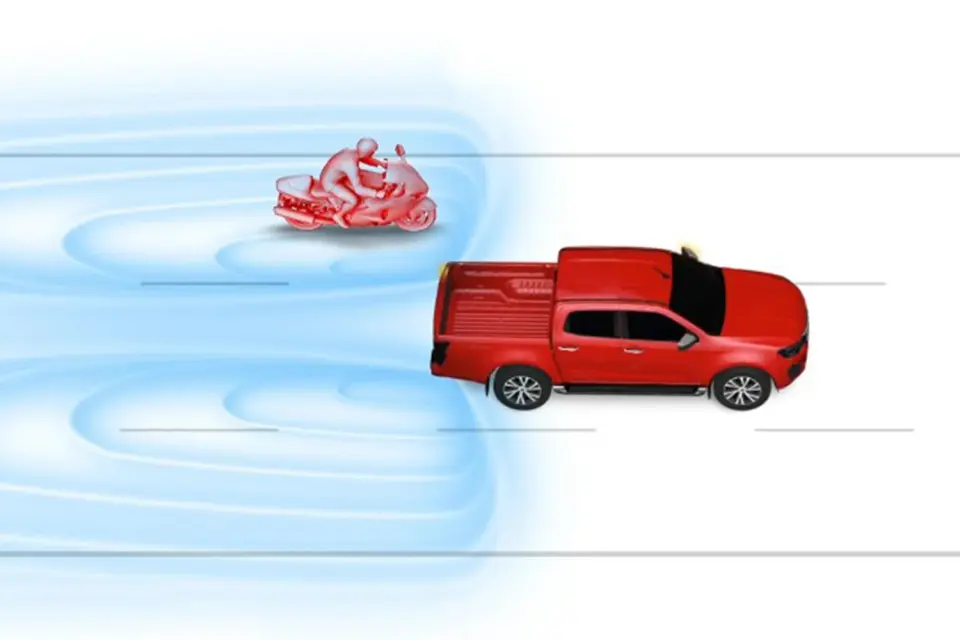

BLIND-SPOT MONITORing system (BSM)

BSM provides a visual warning in your side mirrors when an obstacle is approaching in your blind spot. A must-have safety feature when out on the open road.

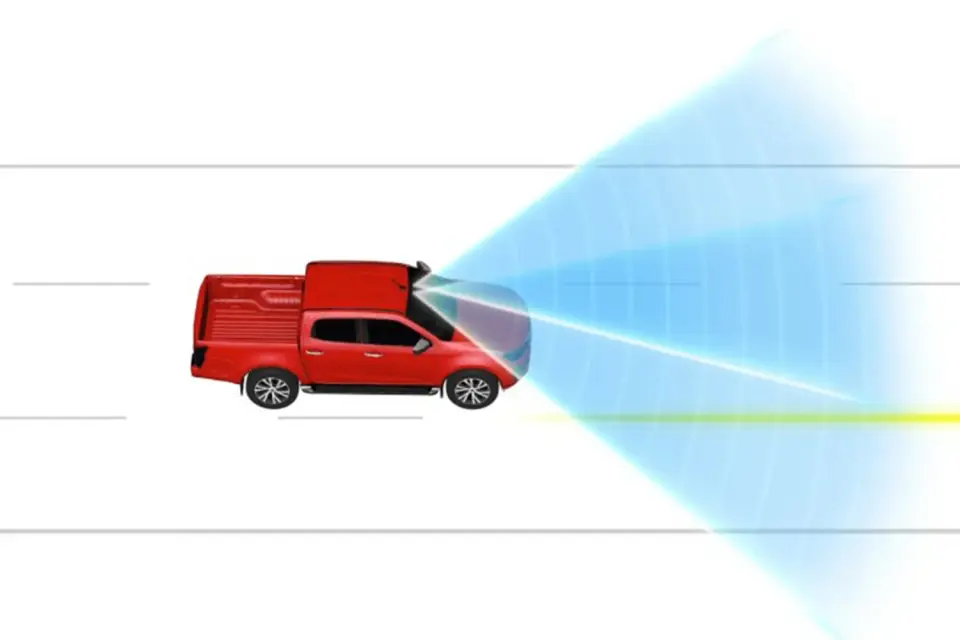

LANE KEEPING

Lane Keep Assist (LKA), Emergency Lane Keeping (ELK) and Lane Departure Prevention (LDP) work to help prevent collisions with other drivers should your D-MAX begin to drift across its lane.

MISACCELERATION MITIGATION

In slow-moving areas such as car parks, the stereo cameras determine whether the accelerator has been applied accidentally. Should a potential collision be detected, the brakes are automatically applied.

passive safety technology

Careful attention to detail allows Isuzu to deliver higher levels of passive safety features. Safety features like multiple airbags, parking sensors, a reversing camera and automatic lights/wipers provide piece of mind under all situations.

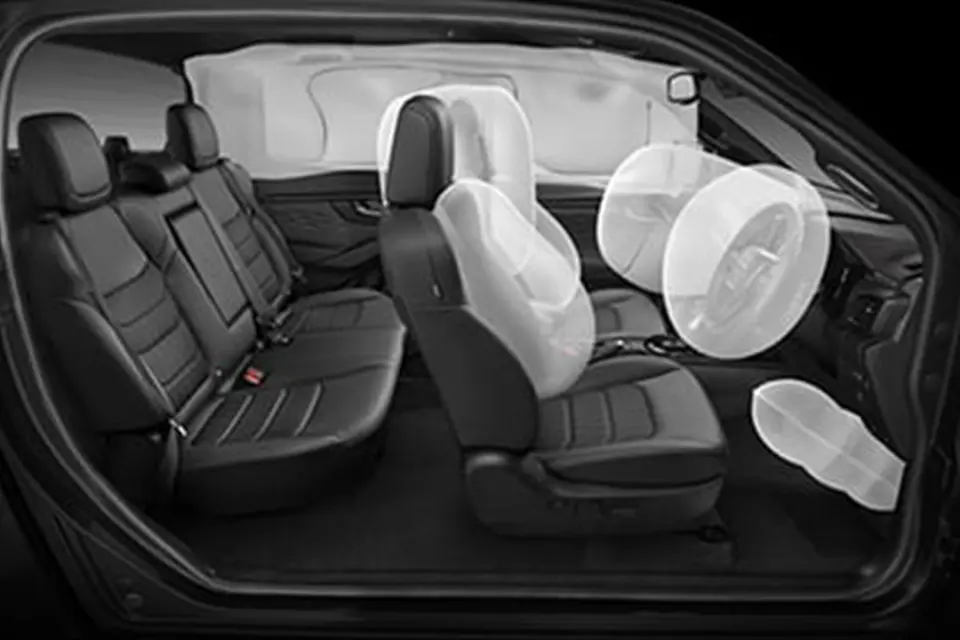

fitted with 8 airbags

The new D-MAX is fitted with dual front airbags, side impact airbags, curtain airbags, driver knee airbag and a segment first front centre airbag, providing excellent level of safety to all occupants.

AUTOMATIC LIGHTS & HIGH BEAM

Day or night? Rain or shine? The new D-MAX takes a few of the little inconveniences under its wing like automatic light control.  including a light sensor that turns headlights on or off depending on the time of day and will control headlight beams if oncoming traffic is detected.

HSA AND HDC systems

The Hill Start Assist (HSA) function engages automatically on significant gradients to prevent the Isuzu D-Max rolling when moving from a stationary position. The Hill Descent Control (HDC) allows a smooth hill descent at a controlled speed.

AUTOMATIC RAIN SENSING WIPERS

Every D-MAX has built-in rain-sensing wipers, ensuring you never lose sight of the road or trail ahead.

REAR PARKING SENSORS

Front & rear parking sensors provide instantaneous feedback regarding nearby obstacles whilst conducting reversing maneuvers.

EMERGENCY STOP SIGNAL (ESS)

If an emergency braking maneuver is performed the taillights will flash to warn following drivers to slow down.

specifications

X-Terrain Double Cab 3.0 4x4 Automatic

X-Terrain Double Cab 3.0 4x4 Automatic

Pricing

Recommended Selling Price (RSP) **
$67,990
Recommended Retail Price (RRP)
$76,990
Assured Future Value ***
-

Engine

Series
Isuzu 4JJ3-TCX
Description
3-litre turbo-diesel, in-line 4-cylinder, DOHC, 16-valve with Diesel Particulate Diffuser (DPD)
Maximum power
140 kW @ 3600 rpm
Maximum torque
450 Nm @ 1600 —> 2600 rpm
Bore x stroke
95.4mm x 104.9mm
Displacement
2999cc
Compression ratio
16.3 : 1
Cylinder head
Isuzu-patent special aluminium alloy
Valve gear
Chain-driven dual overhead camshafts, roller rockers, 4 valves/cylinder
Induction
Electronic high pressure common rail direct fuel injection with VSS (Variable Swirl System) and intercooled electric control VGS (Variable Geometry System) turbocharger
Cylinder block
Cast iron upper with induction-hardened cylinder bores, cast alloy lower
Emission level
Euro 5
Alternator
90 amp with Intelligent Battery Sensor (IBS)

Transmission

Automatic
Aisin AWR6B45 II 6-speed with sequential shift and brake shift lock electronically controlled, tri-mode with fuel-saving lock-up torque converter on gears 3, 4, 5 and 6
Ratios
Ratios: 3.600 2.090 1.488 1.000 0.687 0.580
Reverse: 3.732
Final drive
3.727
Transfer gearing
4x4 low-range: 2.482
4x4 high-range: 1.000
4x4 system
“Terrain Command” control with ‘shift on the fly’ 2-high <——> 4-high selection at up to 100km/h, 4-low with rear differential lock
Drivetrain system
TCS (Traction Control System)

Steering

Steering
Electric power steering with speed-sensing steering feel (light at low speed, heavy at high speed); tilt and telescopic adjustable steering wheel
Steering assistance and ratio
Engine-speed-sensitive variable capacity Electric power system; 3.84 turns lock-to-lock via tilt adjustable steering wheel

Chassis

Chassis type
Separate, full-length heavy-duty chassis with 8 cross members on all models
Front suspension
Independent, high-ride, coil springs, gas shock absorbers, upper and lower wishbones, stabiliser bar
Rear suspension
Alloy-steel overslung long-span semi-elliptic leaf springs; gas shock absorbers

Axles

Front
Independent 4x4: fully floating with outer CV, inner double offset joints and equal length driveshafts. Rating: 1450kg
Rear
Rigid semi-floating banjo with hypoid final drive and dual tapered needle roller bearings. Rating: 1910kg

Brakes

Braking system
Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD), Electronic Stability Control (ESC), Emergency Brake Assist (EBA), Traction Control System (TCS), Rollover Mitigation, Hill Start Assist (HSA), Hill Descent Control (HDC) and Trailer Sway Control (TSC)
Brakes specification
320mm dia. ventilated front discs with 2-piston calipers, 295mm rear drums
Brake assistance & parking brake
Power-assisted via 10” servo unit; central pull up park brake

Wheels and Tyres

Wheel and tyre type
18” x 7.5” matte Dark Grey Alloy; 265 / 60 R18 Highway-Terrain
Spare wheel type
Full size steel spare wheel

Safety and Security

4-channel 4-sensor Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD)
Yes

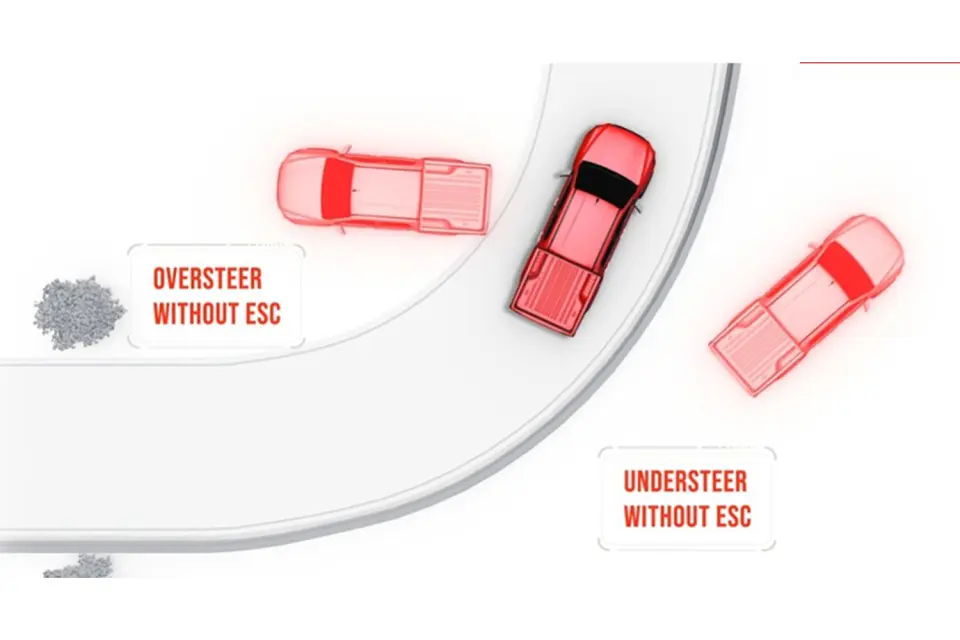

Electronic Stability Control (ESC)
Yes
Traction Control System (TCS)
Yes
Emergency Brake Assist (EBA)
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes

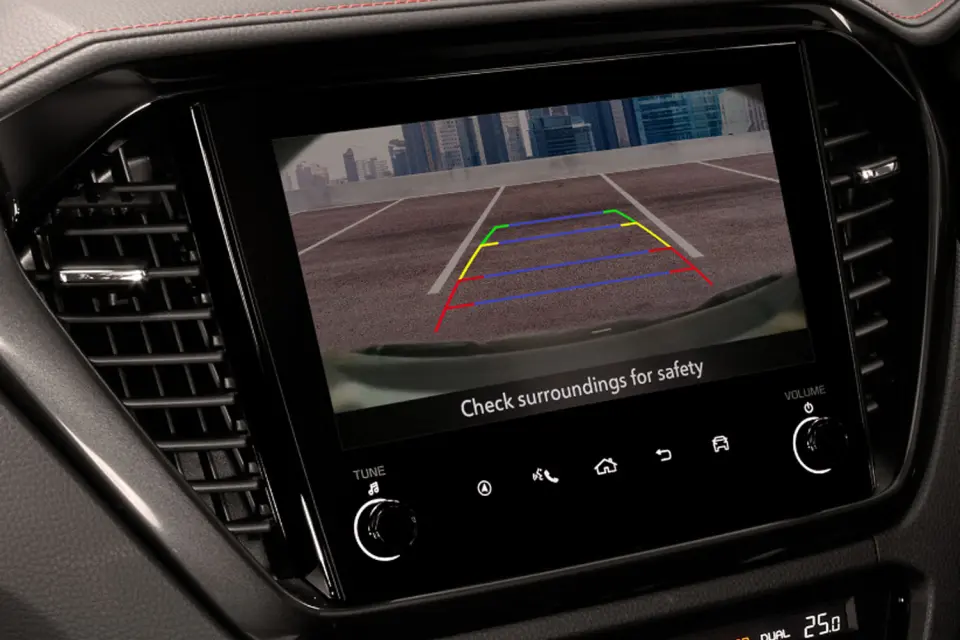

Reversing camera
Yes
Rear parking sensors
Yes
Front parking sensors
Yes
8 Airbags: dual front, curtain, side, driver's knee and far side airbags
Yes
Passenger side SRS airbag on/off switch
Yes
Height-adjustable upper mounts for front seat belts
Yes
Pre-tensioners with load limiters for front seat belts
Yes
Pre-tensioners with load limiters for outer rear seat belts
Yes
3-point retractable seat belts for all rear and centre seating positions
Yes
Intelligent seatbelt reminder (all seats)
Yes
2 childseat tethers and ISO FIX compatible anchor points
Yes
Height-adjustable head restraints for full-size seats
Yes
Integrated head restraint on front seats
-
Child-proof rear door locks
Yes
Single 10 inch servo brake master cylinder
Yes
Side anti-intrusion bars inside all doors
Yes
Engine immobilizer
Yes
Rear window demister
Yes
High Density Polyethylene (HDPE) fuel tank
Yes
High mount brake light on cabin
Yes
Dual horn
Yes

Isuzu Active Safety Technology

Autonomous Emergency Braking (AEB)
Yes
Turn Assist with AEB
Yes
Post-Collision Braking
Yes
Forward Collision Warning (FCW)
Yes
Misacceleration Mitigation
Yes
Adaptive Cruise Control (ACC)
Yes
Traffic Sign Recognition (TSR)
Yes
Intelligent Speed Limiter
Yes
Manual Speed Limiter
Yes
Lane Departure Warning (LDW)
Yes
Lane Departure Prevention (LDP)
Yes
Lane Keep Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Driver Attention Assist (DAA)
Yes
Blind-Spot Monitoring (BSM)
Yes

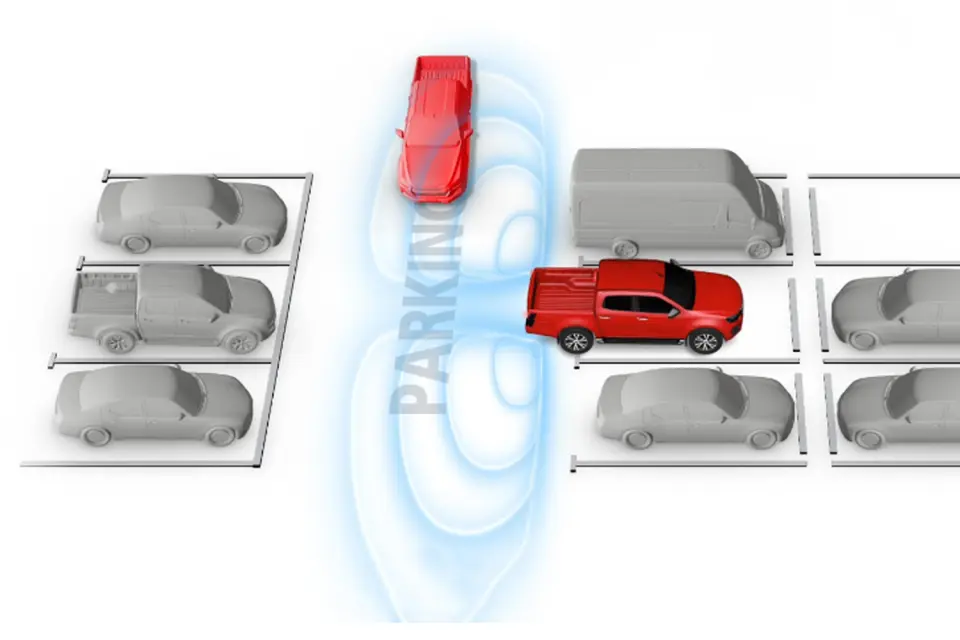

Rear Cross-Traffic Alert (RCTA)
Yes

Protection

Under-front steel skid plate
Yes
Steel plate guards: sump, transfer case, fuel tank edge; reinforced resin under fuel tank
Yes

Suspension and Brakes

Standard rear leaf suspension
-
Heavy duty rear leaf suspension
Yes
Front independent, coil spring suspension with gas shock absorbers, upper and lower wishbones and stabiliser bar
Yes
Heavy-duty brakes; 320mm ventilated front discs with twin-pot calipers, 295mm rear drums
Yes

In-Cabin Storage

Lower glovebox compartment only
-
Upper and lower glovebox compartments
Yes
Power outlet in lower instrument panel
Yes
Centre floor console
Yes
Dual-purpose driver and front passenger cup holder tray
Yes
Rear passenger door cup holders
Yes
Pockets on backs of front seats
Yes

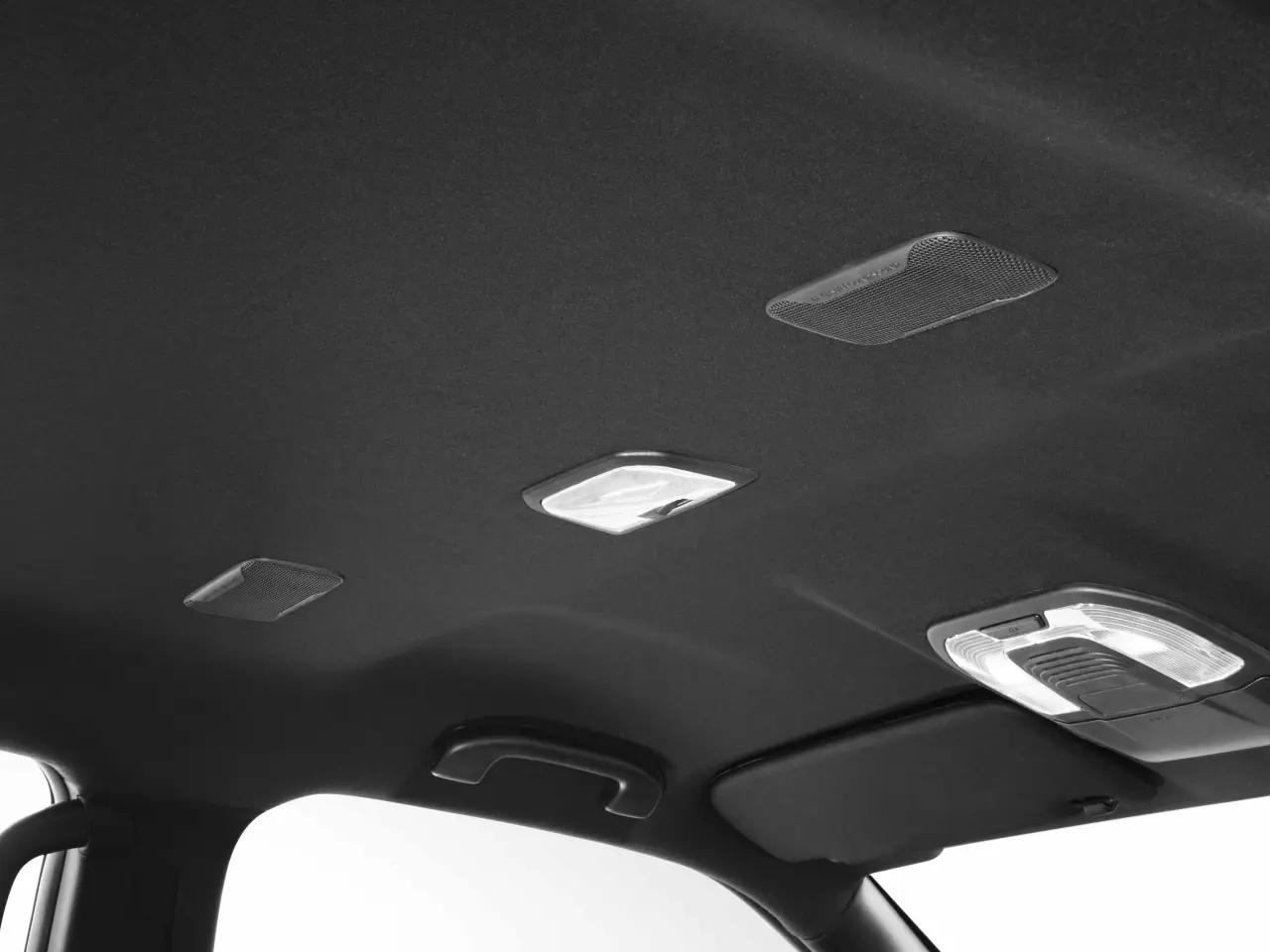

Overhead console with twin map lights and flip-down sunglasses case
Yes
Front door storage compartment with bottle bulge
Yes
2 coat hooks
Yes
Flip up convenience hook behind passenger front seat
Yes
Tool storage behind rear seats
Yes
Tool storage behind front seats
-

Rear Tub

Double-walled ute tub
Yes
4 cargo tie-down hooks inside ute tub
-
Under rail tub liner
Yes
2 cargo tie-down hooks inside ute tub
Yes
Tailgate assist
Yes

Exterior Style

Short front overhang for optimal maneuverability and approach angle
Yes
Halogen multi-reflector projector lens headlights for extra low beam depth and reduced glare
-
Bi-LED headlights with auto-levelling function
Yes
Automatic headlights
Yes
Automatic high beam
Yes
Coming home light
Yes
Welcome light
Yes
LED Daytime Running Lights (DRLs)
Yes
LED fog lights
Yes
Black radiator grille
-
Black-Grey radiator grille
-
Chrome radiator grille
-
Dark grey radiator grille
Yes
Colour-coded front bumper
Yes
Colour-coded integrated rear step bumper
Yes
Black rear bumper
-
Space cab rear 'wing' doors
-
Aluminium side steps
-
Dark grey side steps
Yes
Black door and tailgate handles
-
Colour-coded door and tailgate handles
-
Chrome door and tailgate handles
-
Dark grey door and tailgate handles
Yes
Lockable tailgate
Yes
Black power door mirrors
-
Colour-coded power door mirrors with integrated turn indicators
-
Chrome fold-in power door mirrors with integrated turn indicators
-
Dark grey fold-in power door mirrors with integrated turn indicators
Yes
Heated door mirrors
Yes
Centre front roof-mounted bee-sting aerial
Yes
LED rear combination lamps
Yes

Seating

Standard Black cloth seats
-
High Grade cloth seats
-
Leather Accented seats with Red Stitching
Yes
Front bucket whiplash protection seats
Yes
6-way adjustable driver seat
-
8-way electric adjustable driver seat
Yes
Electric adjustable lumbar support (driver seat only)
Yes
Heated front seats
Yes
Split fold rear seat
-
Split fold rear seat with centre armrest
Yes
Rear centre seat headrest
Yes

Cabin Amenities

Dual zone climate control air-conditioning with integrated heater/demister
Yes
Manual air-conditioning with integrated heater/demister
-
Rear seat air-conditioning vents
Yes
Pollen and fine particle air filter
Yes
Power windows with one-touch up/down driver's window with safety stop and delay closing
Yes
Comfort turn signal
Yes
Central locking with keyless entry
Yes
Smart keyless entry
Yes
Walk away lock
Yes
Push button start
Yes
Remote engine start
Yes
Power-adjustable door mirrors with turn indicator light
Yes
Power-adjustable door mirrors
-
4 speaker sound system
-
6 speaker sound system
-
'Sky Sound' roof-mounted sound system with 8 speakers (mounted in front dash, front doors, rear doors and roof)
Yes
9 inch touchscreen display with wireless Apple CarPlay® and Android Auto™
Yes
8 inch touchscreen display with wireless Apple CarPlay® and Android Auto™
-
Built-in satellite navigation with MID turn-by-turn directions
Yes
Rear centre console USB-C charging port
Yes
Tilt and telescopic adjustable steering wheel with electric power steering
Yes
Urethane steering wheel with cruise, audio and voice recognition controls
-
Leather steering wheel with cruise, audio and voice recognition controls
Yes
4.2" smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder
-
7" smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder
Yes
Electro-luminescent gauges
Yes
'Terrain Command' 4x4 select dial
Yes
Rear differential lock button
Yes
Automatic windshield wipers
Yes
Intuitive flat wiper blade
Yes
Day/night interior rear view mirror
-
Auto-dimming rear view mirror
Yes
Sun visors with vanity mirrors (driver and passenger) and ticket retaining strap (driver)
-
Sun visors with illuminated vanity mirrors (driver and passenger) and ticket retaining strap (driver)
Yes
Fixed A-pillar assist-grips for driver and front passenger
-
Fixed B-pillar assist-grips for rear passengers
-
Folding assist-grips for driver and front passenger
Yes
Folding assist-grips for rear passengers
Yes
Carpet flooring
Yes
Easy-clean vinyl flooring
-

D-MAX Fuel Economy and Emissions (WLTP3)*

Combined (litres per 100km)
9.2
CO2 (g/km)
238

Warranty and Roadside Assistance

Warranty & Roadside Assistance
3 years or 100,000 km (whichever comes first)

Dimensions (mm unless stated otherwise)

Wheelbase
3,125
Overall length
5,275
Overall width (excluding door mirrors)
1,870
Overall height (*depends on body fitted)
1,810
Front overhang
905
Rear overhang (*depends on body fitted)
1,250
Wheel track width
1,570
Ground clearance
240
Turning circle diameter between kerbs (metres)
12.5
Approach angle
30.5°
Departure angle
19.0°
Ramp-over angle
23.8°

Load area (mm)

Cab to rear axle
450
Length (top)
1,495
Length (floor) (*inside genuine accessory tray body)
1,570
Maximum width (*inside genuine accessory alloy tray body)
1,530
Width between wheel houses
1,122
Depth
490

Interior (mm)

Leg room - front
1,075
Leg room - rear
905
Shoulder room - front
1,460
Head room - front
1,020

Mass (kg)

Gross Vehicle Mass (GVM)
3,100
Kerb weight^
2,175
Payload - (cab chassis models; final mass depends on body fitted)
925
Gross Combination Mass (GCM)
6,000
Maximum towing mass (braked trailer)
3,500
Maximum towing mass (non-braked trailer)
750
Maximum tow ball download (when fitted with genuine Isuzu UTE tow kit)
350
Fuel tank capacity (litres)
76
